Rockwell Automation Publication ENET-UM004B-EN-P - November 2015 17
5000 Series EtherNet/IP Communication Module Overview Chapter 1
Create a New SA Power Bus in a 5069 Compact I/O System
Figure 6 shows a 5069 Compact I/O system that uses a 5069-FPD field potential
distributor to create a second SA power bus. The configuration uses separate SA
power buses to isolate the digital I/O modules from the analog I/O modules.

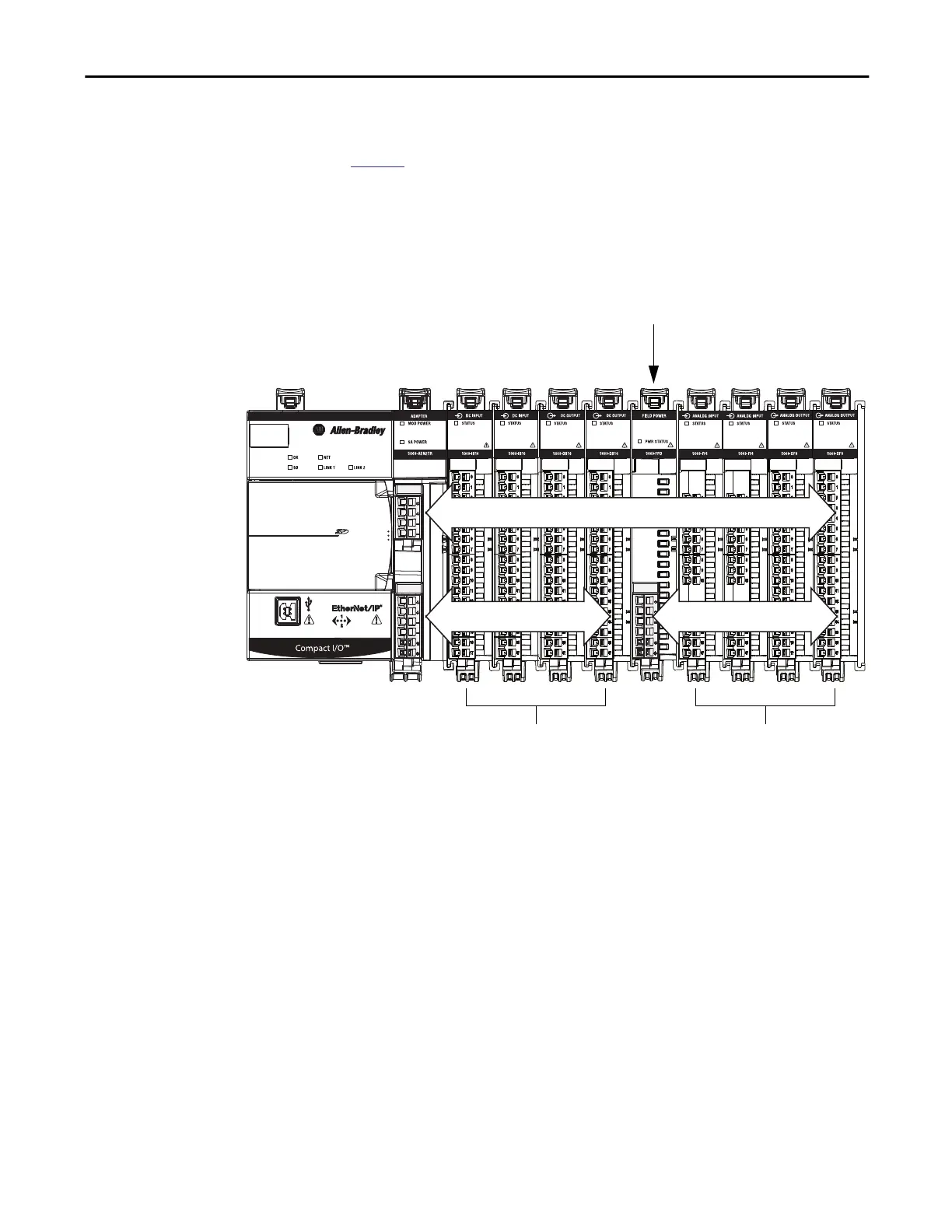

Figure 6 - 5069 Compact I/O System - Create a New SA Power Bus
Continuous MOD Power Bus Limited to 10 A, max
SA Power Bus Limited to 10 A, max SA Power Bus Limited to 10 A, max
5069-FPD Field Potential Distributor
Breaks field-side power distribution to isolate 5069
Compact I/O digital and analog I/O modules.
5069 Digital I/O Modules 5069 Analog I/O Modules
