Allen-Bradley Logix5000 User Manual

Rockwell Automation Publication ENET-UM004B-EN-P - November 2015 39
Chapter 4
Add an EtherNet/IP Communication Module to a
Controller Project
After you install the communication module and set the IP address, you must add
the module to a controller project. The project must be online to set the Speed
and Duplex configurable parameters on the module.
Add the Module to a Project
1. Verify that your project is offline.

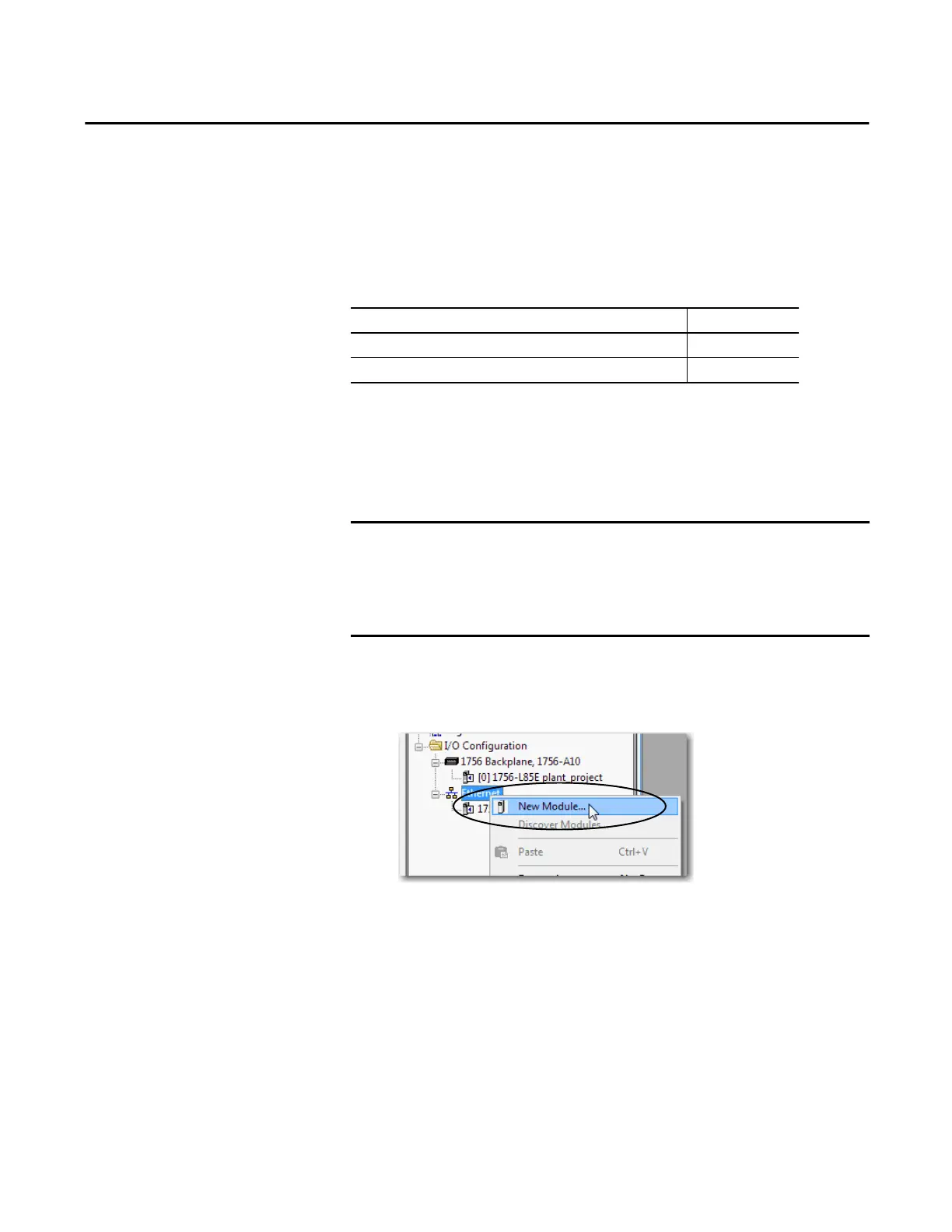

2. Right-click your network port, and choose New Module.
Topic Page
Add the Module to a Project 39
Time Synchronization 50
IMPORTANT
You must use the Logix Designer application, version 28 or greater, to
configure the 5069-AEN2TR EtherNet/IP adapter. Version 28 or greater is
slightly different from previous programming software versions. For example,
in some cases, instead of tabs across the top of the Module Properties dialog
box, the application uses categories on the left side of the dialog box.
