Allen-Bradley Logix5000 User Manual

40 Rockwell Automation Publication ENET-UM004B-EN-P - November 2015
Chapter 4 Add an EtherNet/IP Communication Module to a Controller Project

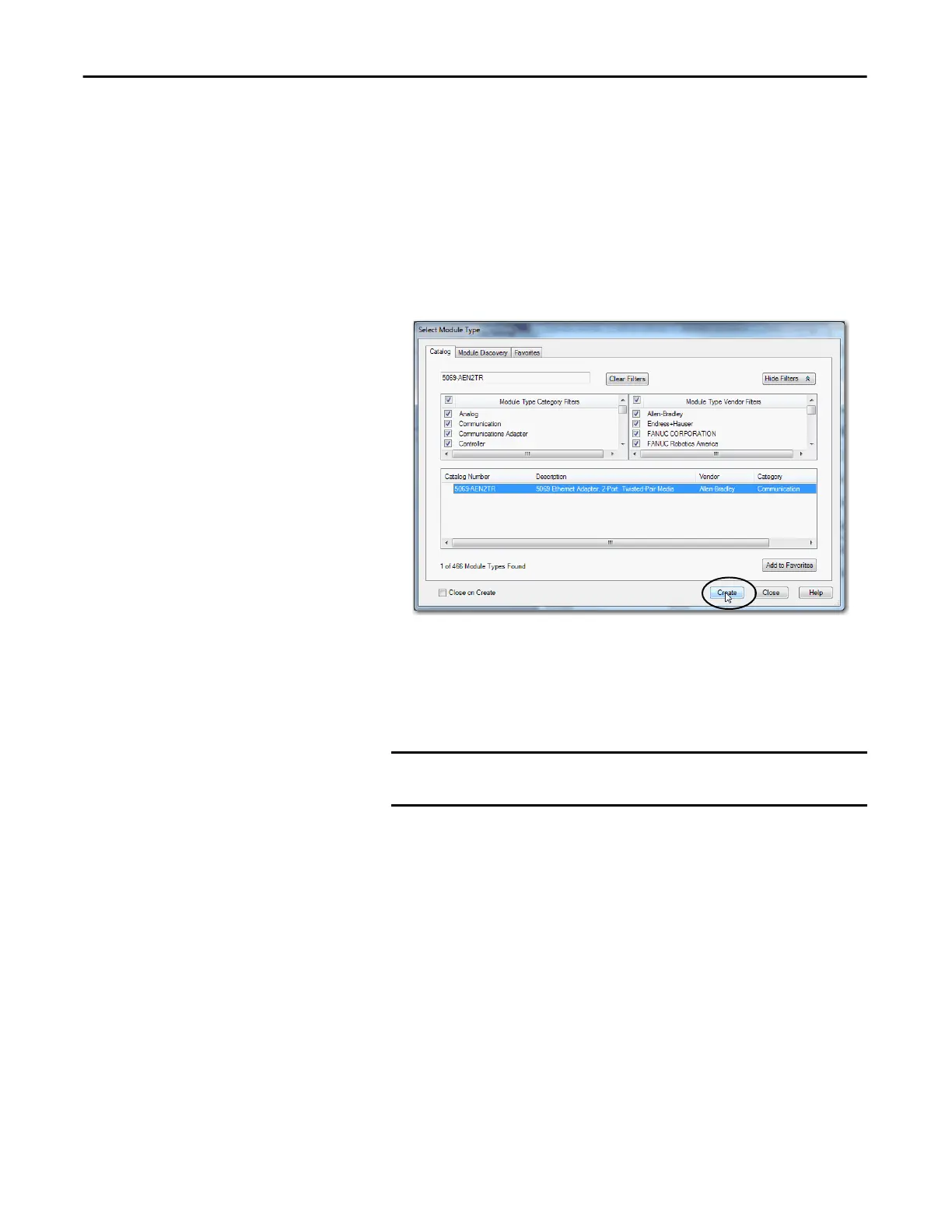

3. On the Select Module Type dialog box, complete the following tasks:
a. In the search field, type 5069-AEN2TR.
b. In the Catalog Number field, select the 5069-AEN2TR, 5069
Ethernet adapter.
For some modules, the Select Major Revision dialog box can appear. If
the dialog box appears, choose the major revision of the module and
click OK.
c. Click Create.
4. On the New Module dialog box, complete the following tasks on the
General category page:
a. Type a name.
b. Enter the IP address.
IMPORTANT
If you do not enter an IP address, the application alerts you that the IP
address is invalid. You cannot continue until you enter an IP address.
