Use Data Views to Access Controller Data Chapter 2
Monitor Data Views and
Data Table File
Use the Data Views → Data Views page to view existing data table files.
Click the file name to view the data within a data table file.
Data View Page

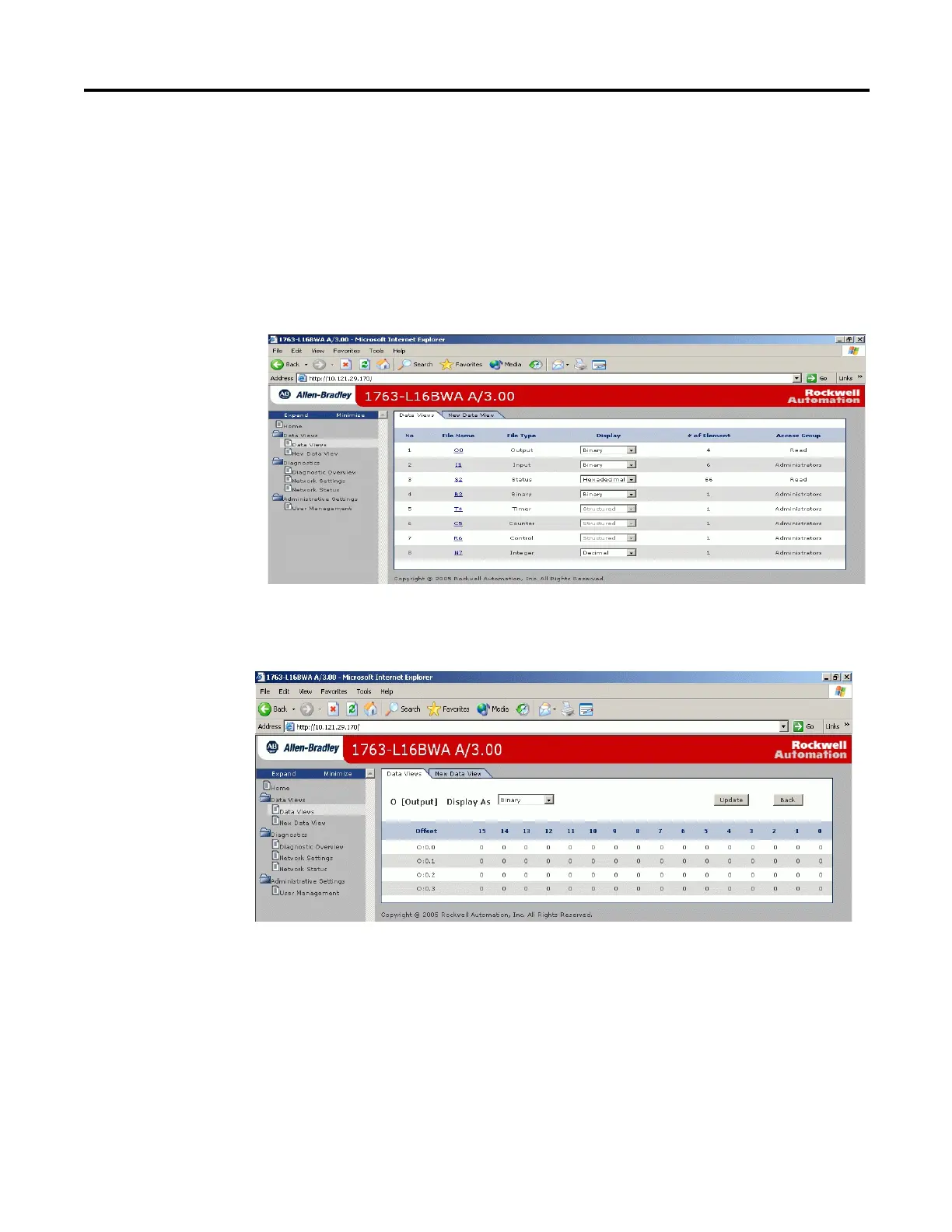

The Data Views page displays a list of the data table files, their type, and size in
elements for a connected MicroLogix 1100, as shown in the following example.
Each file contains a hyperlink that takes you to the specific Data Views page for
that file. When you click a particular file, the Data Views page appears, displaying
the contents of the data table file you selected.
The available and default display formats depend on the data type of the file.
Click Back to display the previous page. To refresh data, click Update.
Change Data Table Files
The data in the Data File Types such as Binary, Integer, Long, Float, and String
can be changed. The Binary, Integer, and Long types support all the Display
formats. The Binary can be changed by bit, and the octal, decimal, and
hexadecimal can be changed by element. A user account with either Write or
