Chapter 4 Monitor Diagnostics
Diagnostic Overview

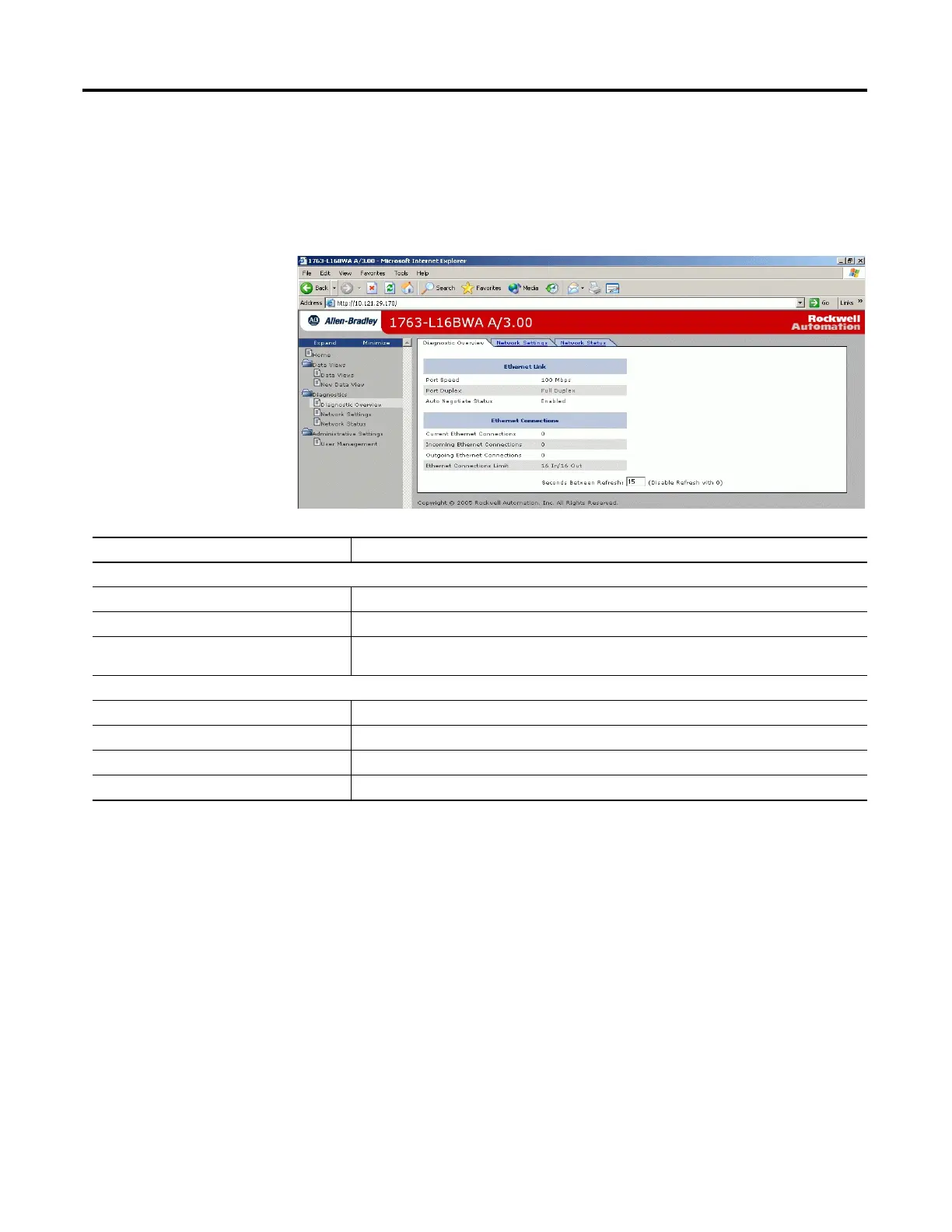

The Diagnostics → Diagnostic Overview page presents a summary of the current
configuration and overall status of the MicroLogix 1100 controller. This
summary includes:
• Ethernet configuration.
• Ethernet connection use.
This field Specifies
Ethernet Link
Port Speed whether the Ethernet port is operating @ 10 Mbps or 100 Mbps
Port Duplex whether the Ethernet port is operating @ half duplex or full duplex
Auto negotiate Status whether the port speed and duplex mode were determined via autonegotiation or whether they
were manually configured
Ethernet Connections
Current Ethernet Connections current number of active connections
Incoming Ethernet Connections current number of incoming connections
Outgoing Ethernet Connections current number of outgoing ethernet connections
Ethernet Connection Limit maximum number of Ethernet incoming/outgoing connections

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
