Rockwell Automation Publication 1763-UM002E-EN-P - October 2015 17
Monitor Diagnostics Chapter 4
Network Settings

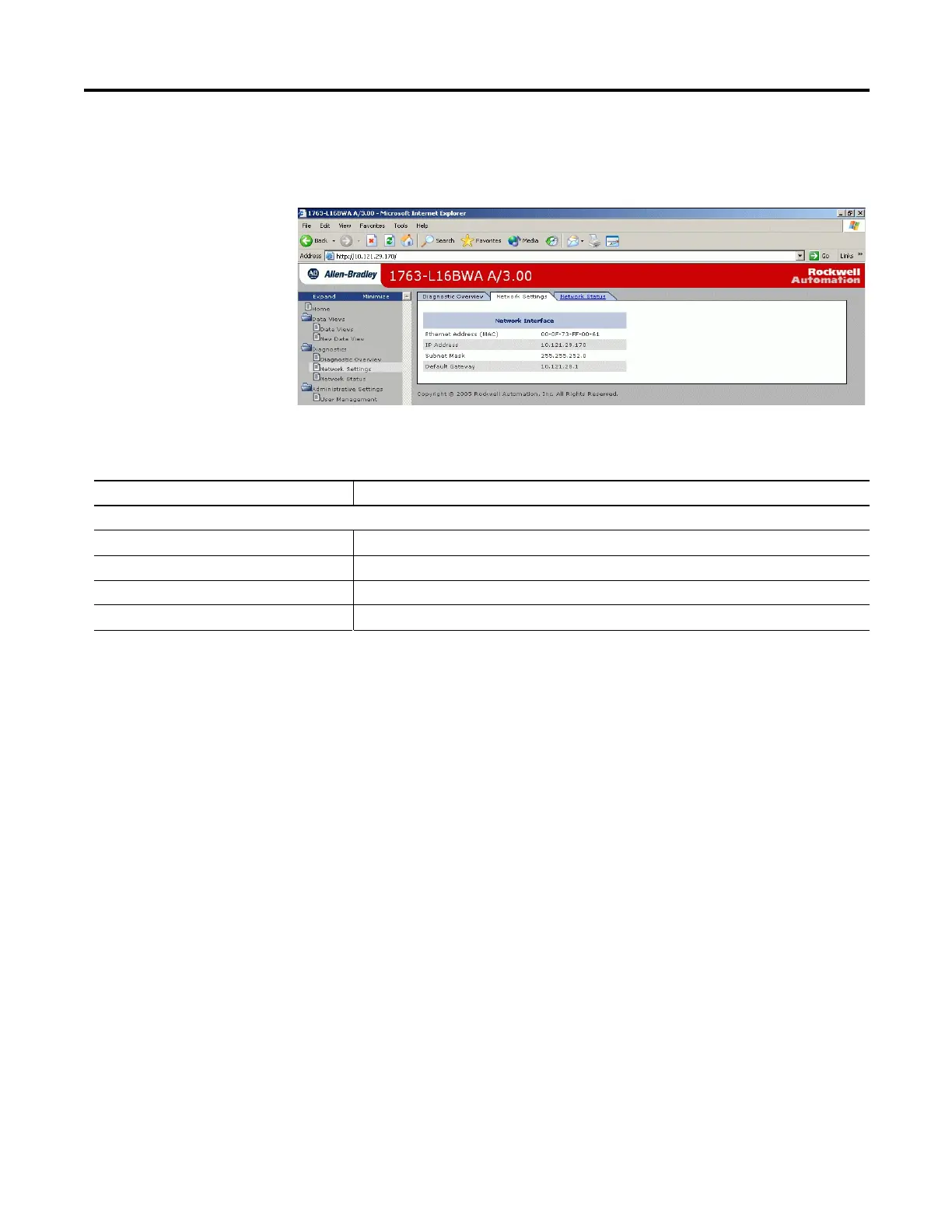

The Diagnostics Network Settings page presents a summary of the current
Ethernet configuration for MicroLogix 1100. This summary includes:
Ethernet address details.
Any fields not configured remain blank.
This field Specifies
Network Interface
Ethernet Address (MAC) Ethernet (MAC) address of the controller
IP Address IP address for the controller
Subnet Mask subnet mask for the controller
Default Gateway gateway address for the controller
