8 Rockwell Automation Publication 1763-UM002E-EN-P - October 2015
Chapter 2 Use Data Views to Access Controller Data

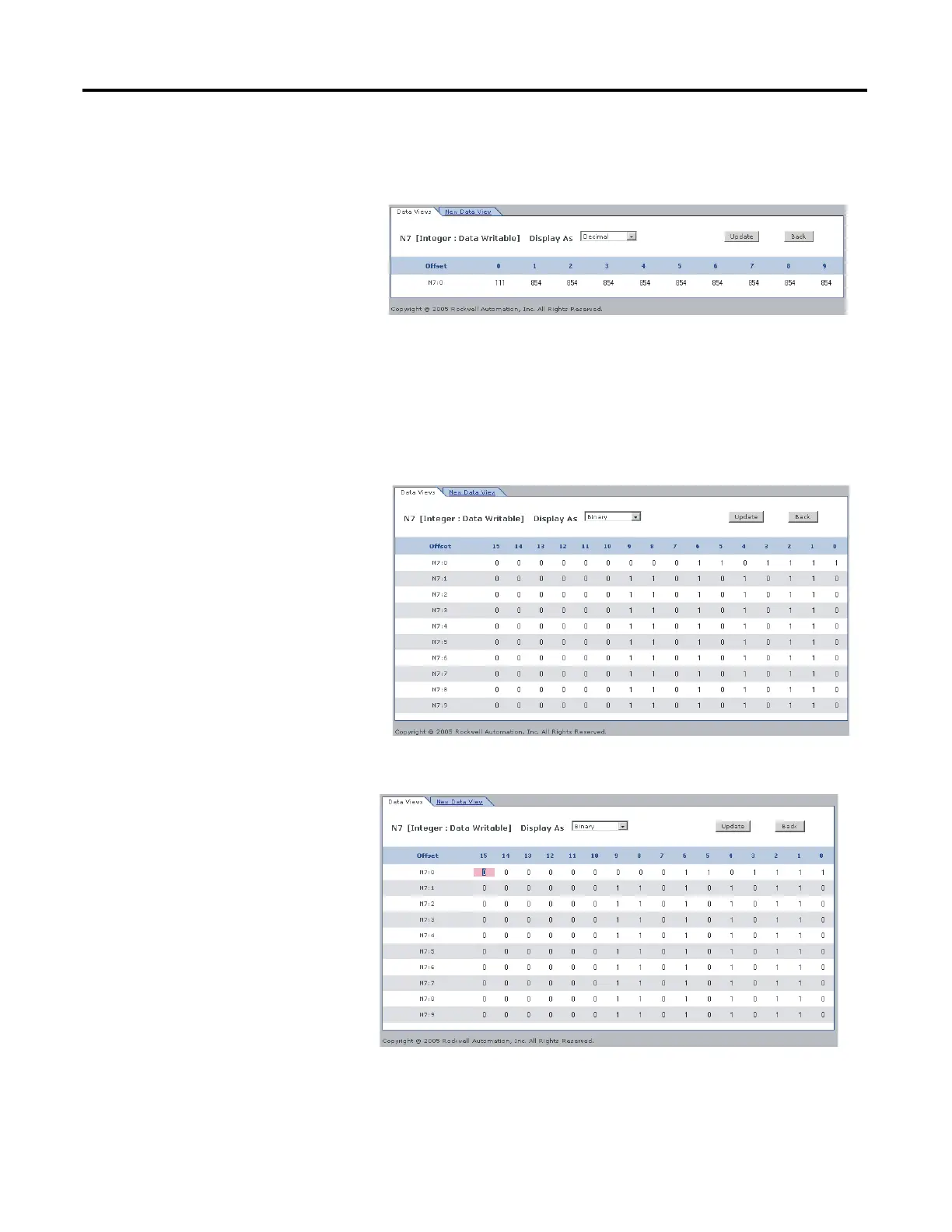

Administrator access level can change the Data Table Files. When you click N7 in
Data Views, Data Writable appears beside a Data File Type (Integer here) as
shown below.
How to Change a Data File Type
The following steps assume Binary type is used.
1. Change Display As to Binary, then the following screen appears.
2. Double-click the data you want to change, then the background color
becomes pink.

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
