Allen-Bradley MicroLogix 1200 Reference Manual

Publication 1762-RM001C-EN-P
Conversion Instructions 11-7

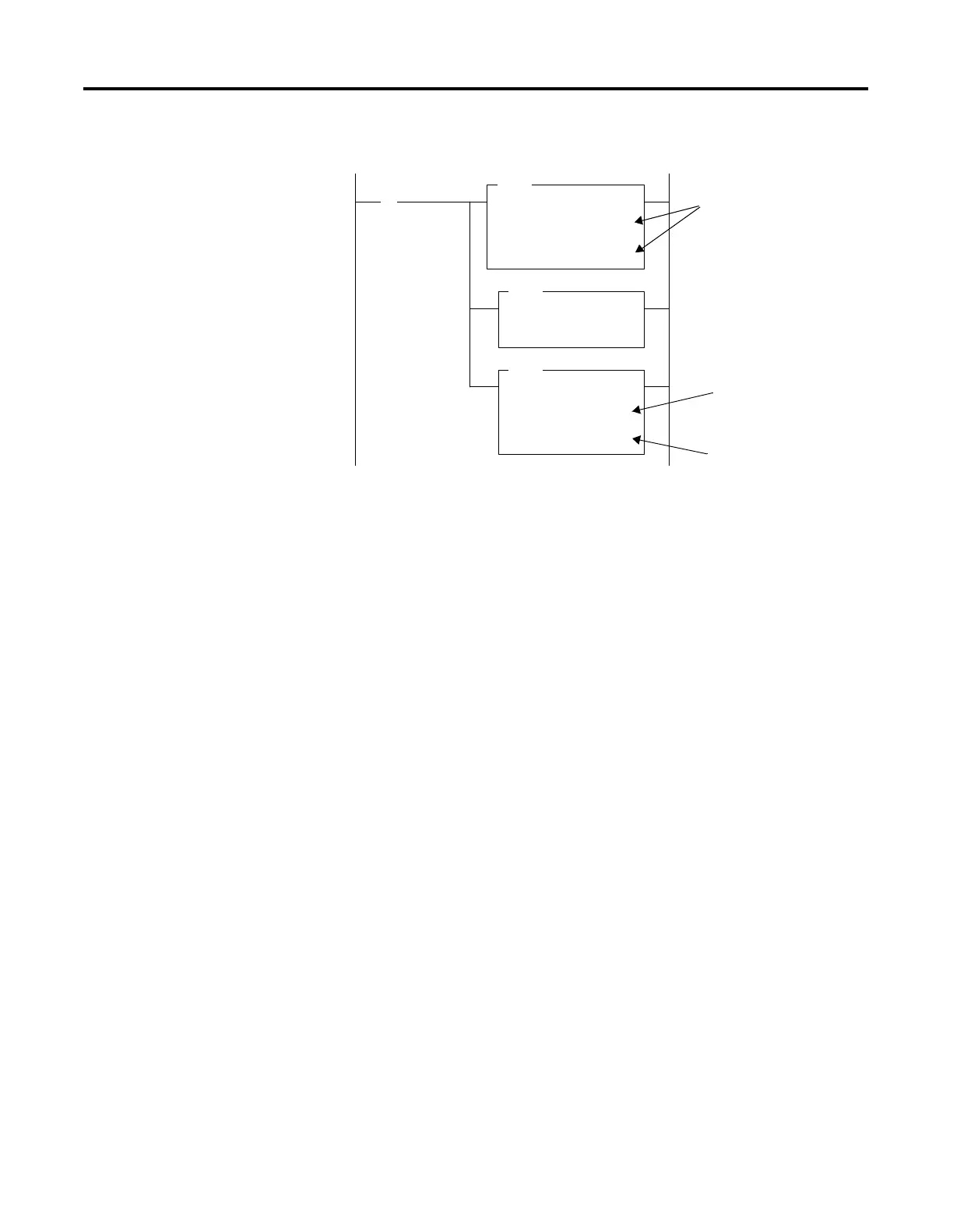

Clearing S:14 before executing the FRD instruction is shown below:
When the input condition I:0/1 is set (1), a BCD value (transferred from a
4-digit thumbwheel switch for example) is moved from word N7:2 into
the math register. Status word S:14 is then cleared to make certain that
unwanted data is not present when the FRD instruction is executed.
CLR
CLEAR
Dest S:14
0
FRD
FROM BCD
Source S:13
00001234
Dest N7:0
1234
MOV
MOVE
Source N7:2
4660
Dest S:13
4660
] [
I:1
0
0001 0010 0011 0100
0000 0100 1101 0010
S:13 and S:14 are
displayed in BCD format.

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
