Allen-Bradley MicroLogix 1200 Reference Manual

Publication 1762-RM001C-EN-P
22-6 Data Logging (MicroLogix 1500 1764-LRP Processor only)
Configuring Data Log
Queues
Data Logging is configured using RSLogix 500 programming software
version V4.00.00 or later.

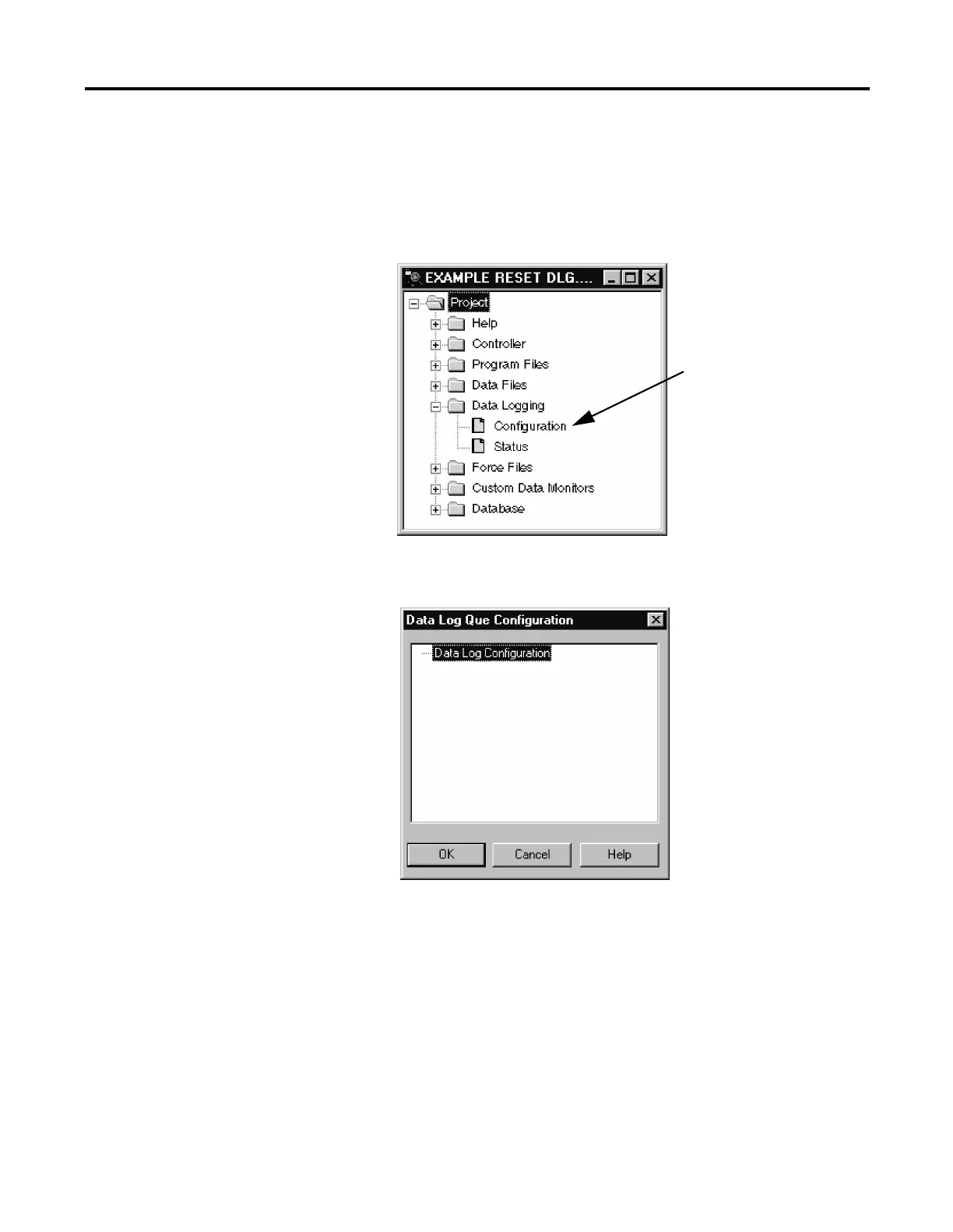

1. Open a 1764-LRP application. The first step in using Data Logging is
to configure the data log queue(s). Access to this function is provided
via the RSLogix 500 Project tree:
2. The Data Log Que window appears. Double-click on Data Log
Configuration.
3. The Data Log Que dialog box appears as shown below. Use this
dialog box to enter the queue information.
Double-click
Configuration to
access Data Log
Configuration.
Appearance of Data
Log Que Configuration
window before
creating a queue.

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
