Allen-Bradley MicroLogix 1762-IF4 User Manual

10 MicroLogix 1762-IF4 Analog Input Module
Publication 1762-IN012C-EN-P - June 2013

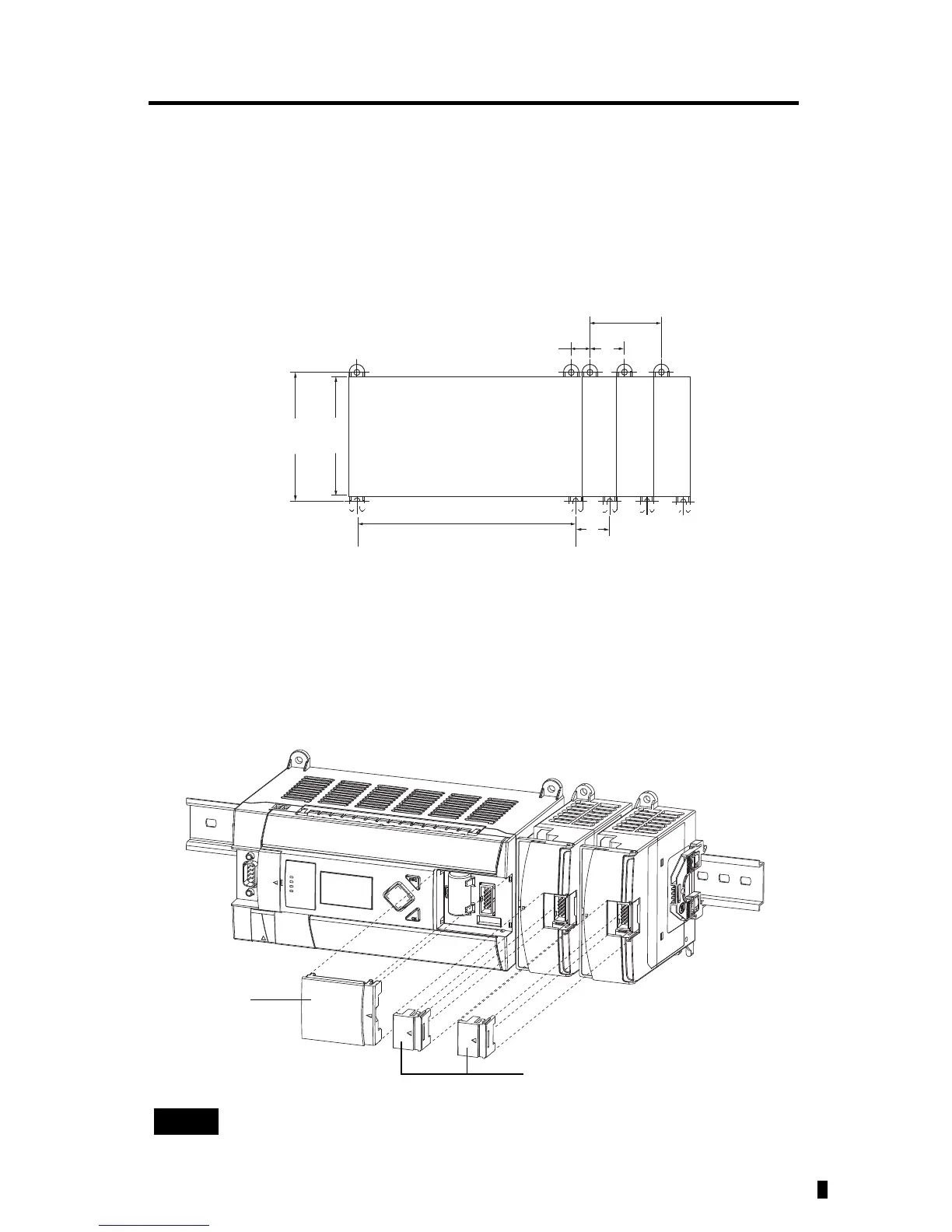

Panel Mounting
Use the dimensional template shown below to mount the module. The preferred mounting
method is to use two M4 (#8) panhead screws per module. M3.5 (#6) panhead screws may also
be used, but a washer may be needed to ensure a good mechanical contact. Mounting screws are
required on every module.
System Assembly
The expansion I/O module is attached to the controller or another I/O module by means of a
flat ribbon cable after mounting as shown below.
TIP
Use the pull loop on the connector to disconnect modules. Do not pull on the
ribbon cable.
90
(3.54)
100.06
(3.939)
40.4
(1.59)
40.4
(1.59)
14.2
(0.568)
MicroLogix
1100/1200/1400
1762 I/O 1762 I/O 1762 I/O
95 (3.74)
44914
For more than two I/O modules: measure (number of modules - 1) x 40 mm (1.59 in.)
NOTE: All dimensions are in mm (in.). Hole spacing tolerance: ±0.4 mm (0.016 in.).
45160
Bus connector covers
1762 expansion
bus connector
cover
