Rockwell Automation Publication 2711R-UM001E-EN-E - January 2017 13
Overview Chapter 1

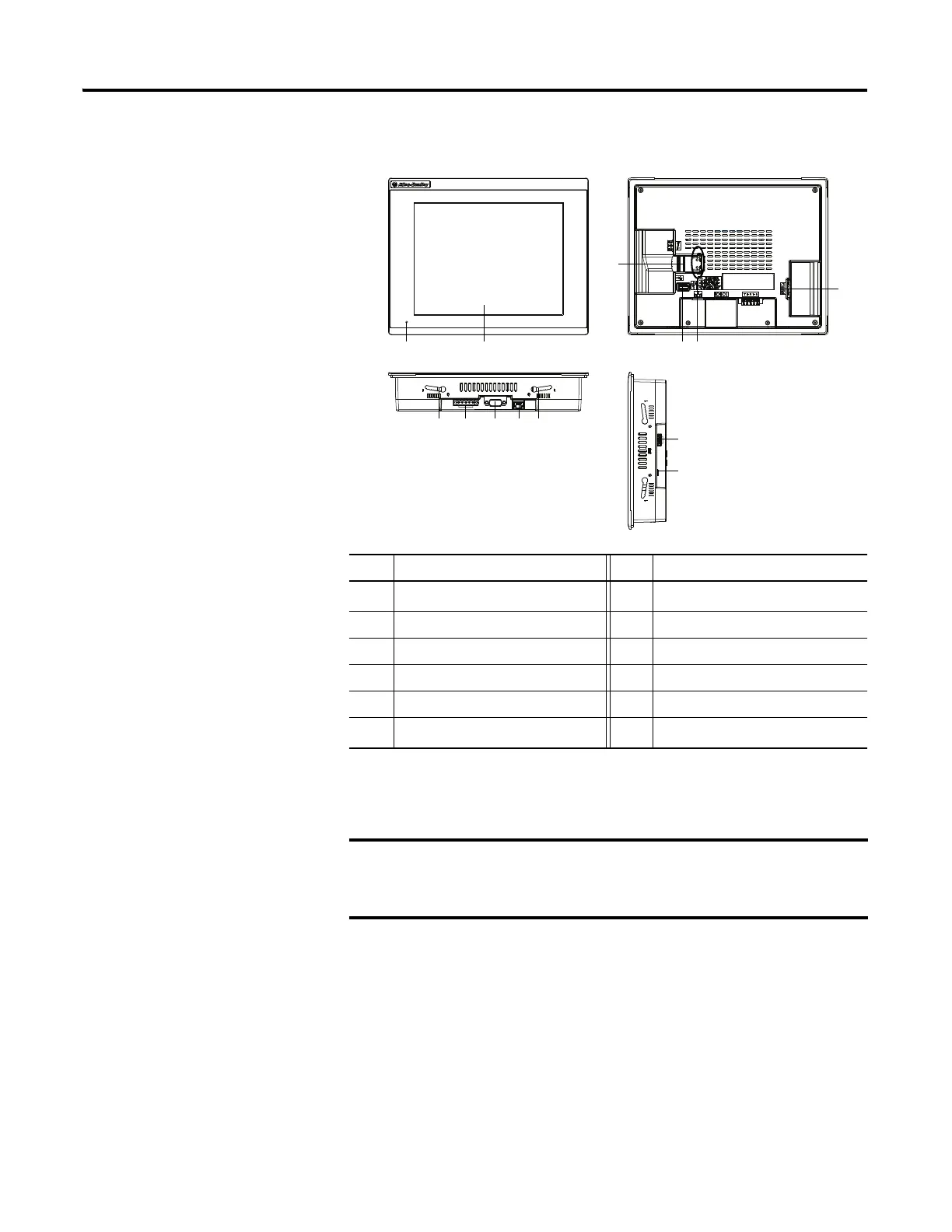

PanelView 800 Terminal – 2711R-T10T
Item Description Item Description
1
Power status LED
(1)
(1)
The Power Status LED is red when in screen saver or dimmer mode and green when in normal (operational)
mode.
7 Replaceable real-time clock battery
2 Touch display 8 USB host port
3 Mounting slots 9 Diagnostic status indicator
4 RS-422 and RS-485 port 10 Micro-SD (Secure Digital) card slot
5 RS-232 port 11 24V DC power input
6 10/100 Mbit Ethernet port 12
USB device port
(2)
(2)
The USB device port is not intended for Customer use.
IMPORTANT
Analog touch screens are intended for single presses at a time. If the
touch screen is pressed in two locations at the same time, the presses
are averaged as a single press in-between the two locations.
1
5643
8
7
10
9
2
11
12
3
