Allen-Bradley PanelView Plus 1000 User Manual

Publication 2711P-UM001A-EN-P
6-6 Terminal Connections

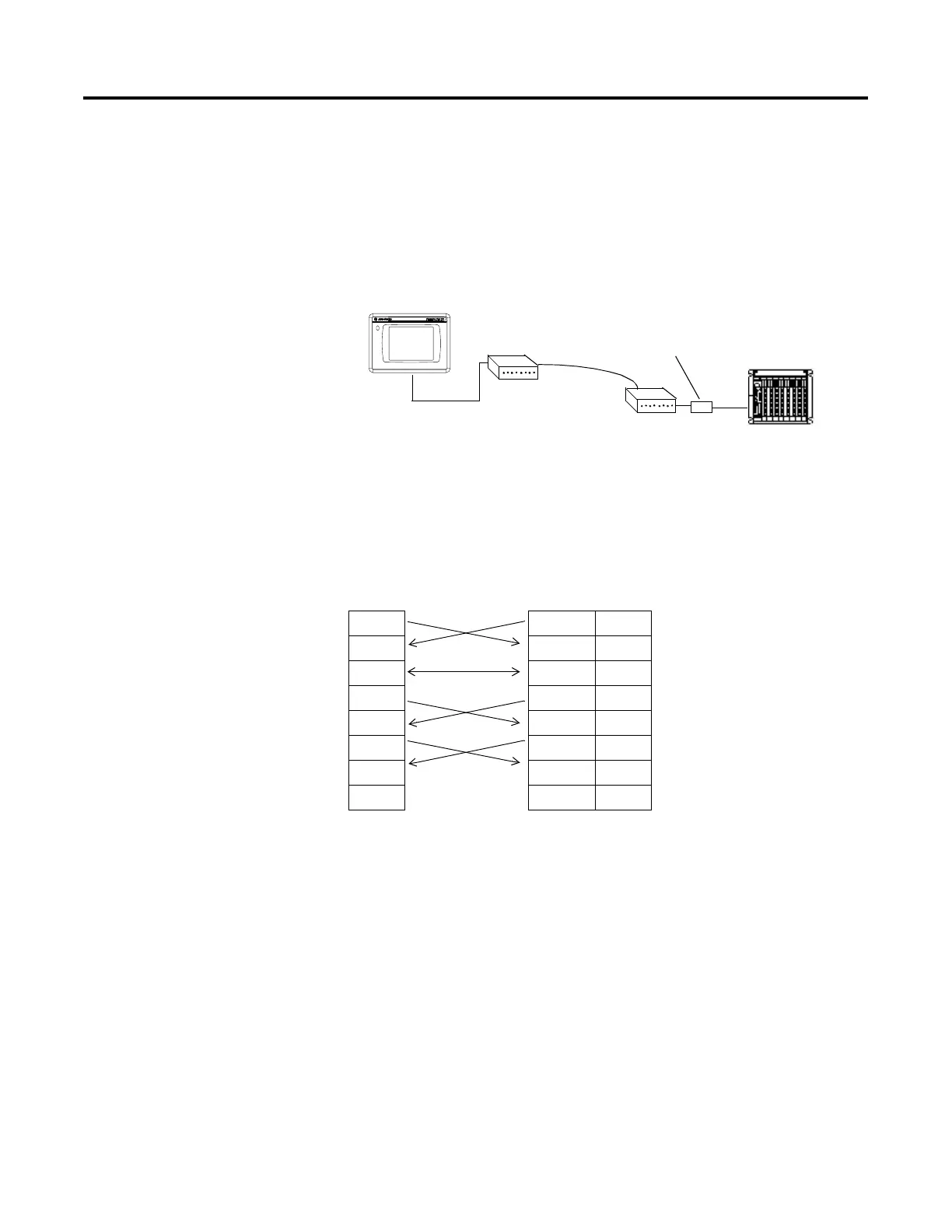

Modem Connection
Wire or radio modem communications is possible between the
PanelView Plus and controller. Each modem must support full duplex
communications. Refer to your modem user manual for details on
settings and configuration.
Constructing a Null Modem Cable
To construct a null modem cable, refer to the following pinout:
9 - p i n 2 5 - p i n 9 - p i n
333
222
575
181
4204
666
858
747
DF1 Port
Optical Isolator
Modem
Modem
Controller
PanelView Plus

Allen-Bradley PanelView Plus 1000 Specifications

General

Display Size	10.4 inches
Resolution	640 x 480 pixels
Touchscreen	Analog resistive
Operating System	Windows CE
Memory	64 MB RAM
Storage	64 MB Flash
Communication Ports	Ethernet, RS-232, USB
Input Voltage	24V DC
Display Type	Color TFT
Processor	XScale
Enclosure	NEMA 4X
Operating Temperature	0°C to 50°C
