Allen-Bradley PanelView Plus 1000

Publication 2711P-UM001A-EN-P
2-6 Installation

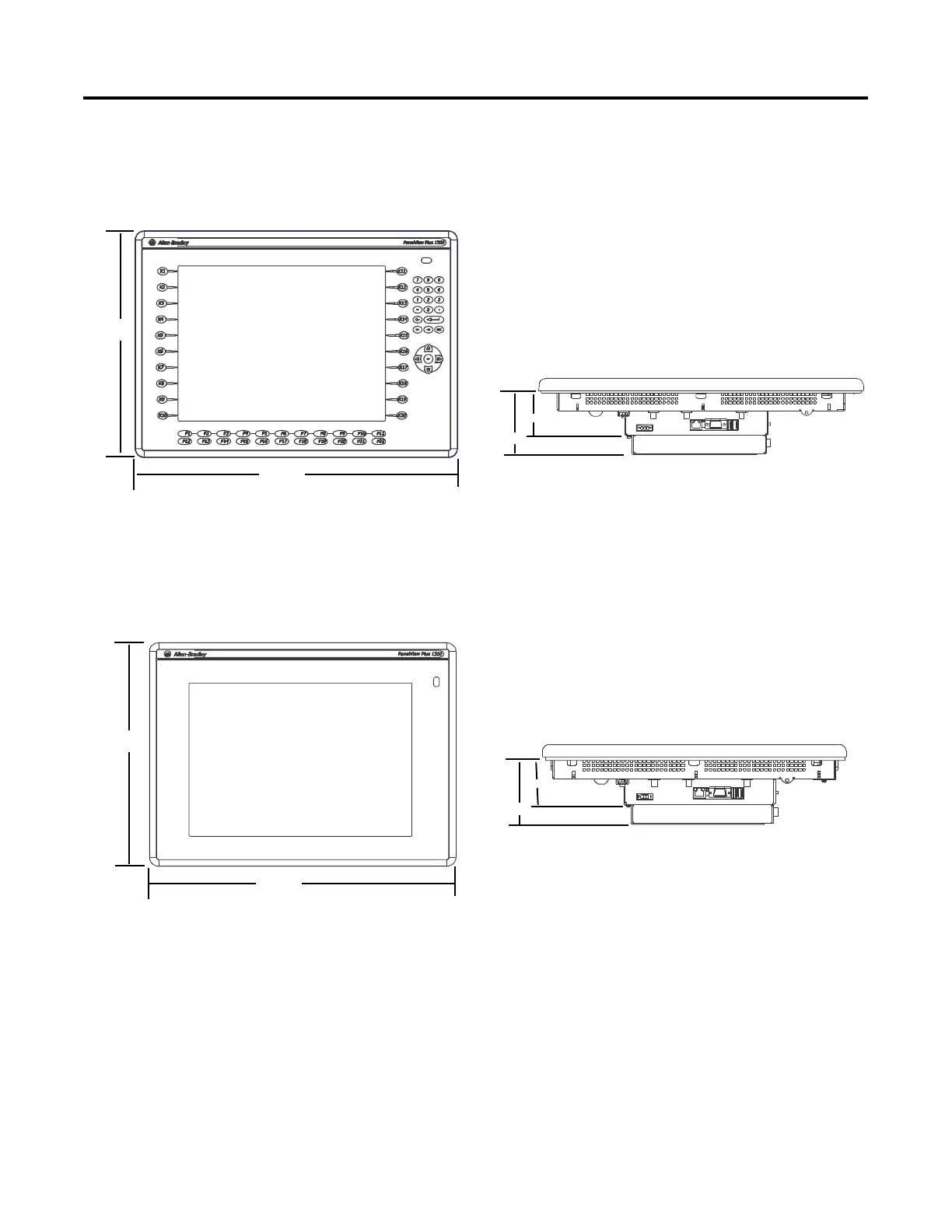

PanelView Plus 1500
1500 Touch Screen Terminal
330
(12.97)
419
(18.46)
416
(16.37)
330
(12.97)
a 65 (2.55) Display to Logic Module
b 93 (3.65) Display to Communication Module
a 65 (2.55) Display to Logic Module
b 93 (3.65) Display to Communication Module
a
b
a
b
1500 Keypad or Keypad & Touch Terminal
