Publication 2711P-UM001A-EN-P
5-8 Installing and Replacing Components

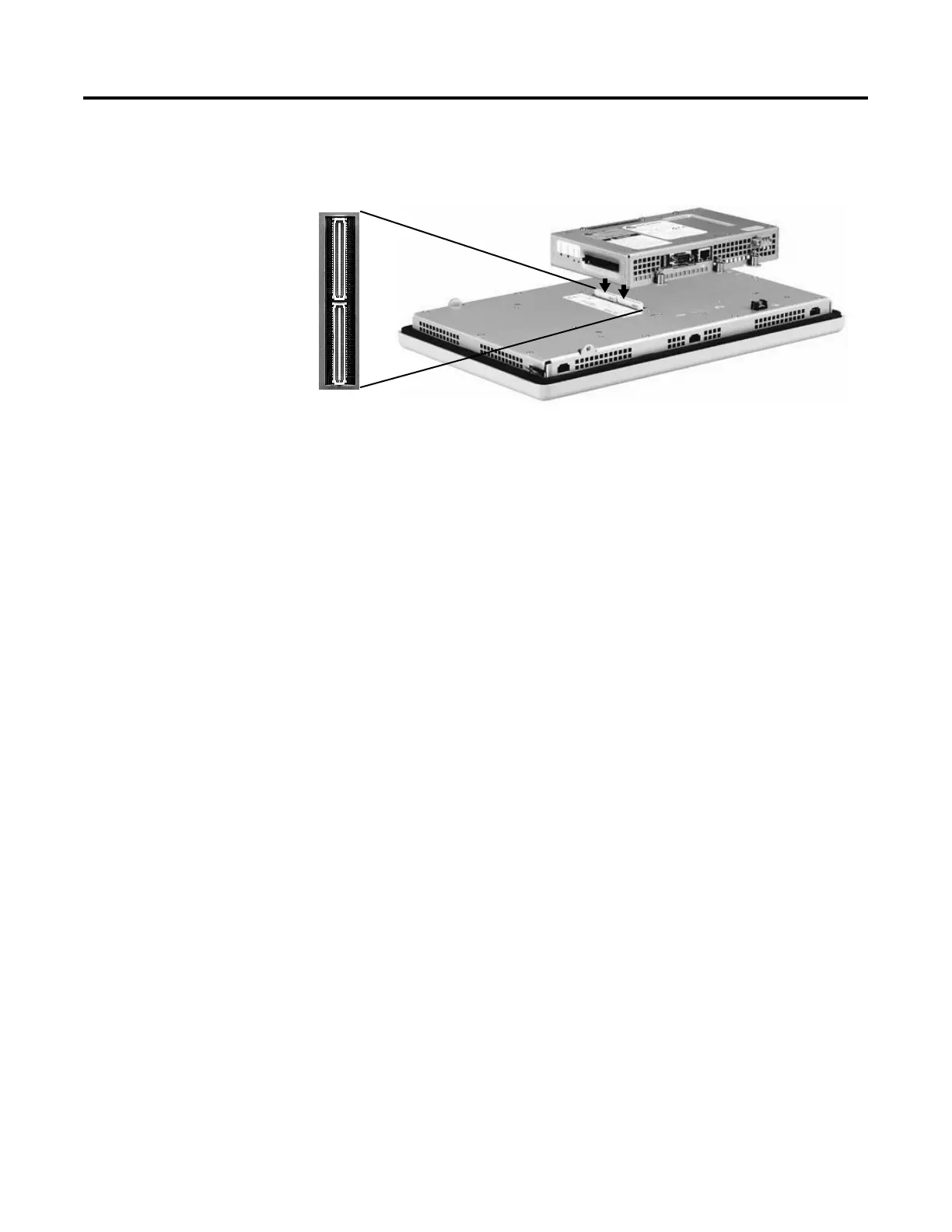

7. Position the new Logic Module over the new Display Module so
that the connectors align.
8. Push down on the Logic Module until firmly seated.
9. Tighten the 6 captive screws that secure the Logic Module to the
Display Module to a torque of .68 N•m
(6-8 in-lb).
10. Attach the Communication Module (if necessary) and tighten the
4 screws to a torque of .68 N•m (6-8 in-lb).
