Publication 2711P-UM001A-EN-P

Installing and Replacing Components 5-15

For PanelView Plus 1250 (has 2 Backlights)

Work on a clean, flat, stable surface to protect the display from

debris, scratches and damage.

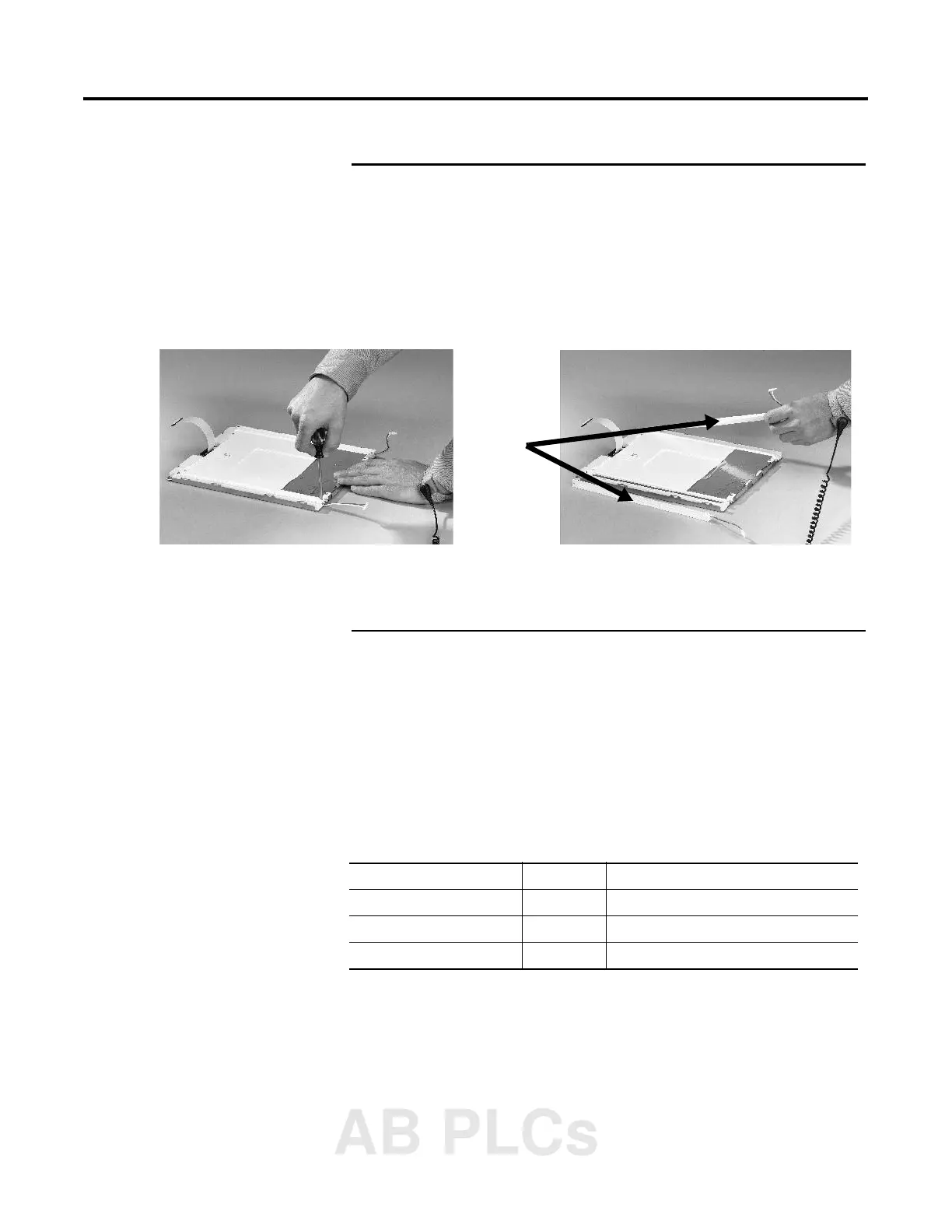

8. Remove the 2 screws that secure each of the two backlights and

then remove the backlights.

9. Insert the new backlights and then secure each with the 2

screws.

10. Attach the Backlight Connector to the circuit board (shown in

step 5 on page 5-14).

11. Attach the LCD Display Connector to the circuit board (shown in

step 4 on page 5-13).

12. Secure the LCD Display by attaching the 4 screws. The terminals

use different size screws. Use the following chart to tighten the

screws.

13. Replace the Display Module bezel as described on 5-12.

Backlights

PanelView Plus Screw Size Torque

700 2.5 mm .68 N•m (6-8 in-lb)

1000/1250 #4 .68 N•m (6-8 in-lb)

1500 #6 .90 - 1.1 N•m (8-10 in-lb)
