128 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive
Disconnect Cabinet Options Wiring and Electrical Connections

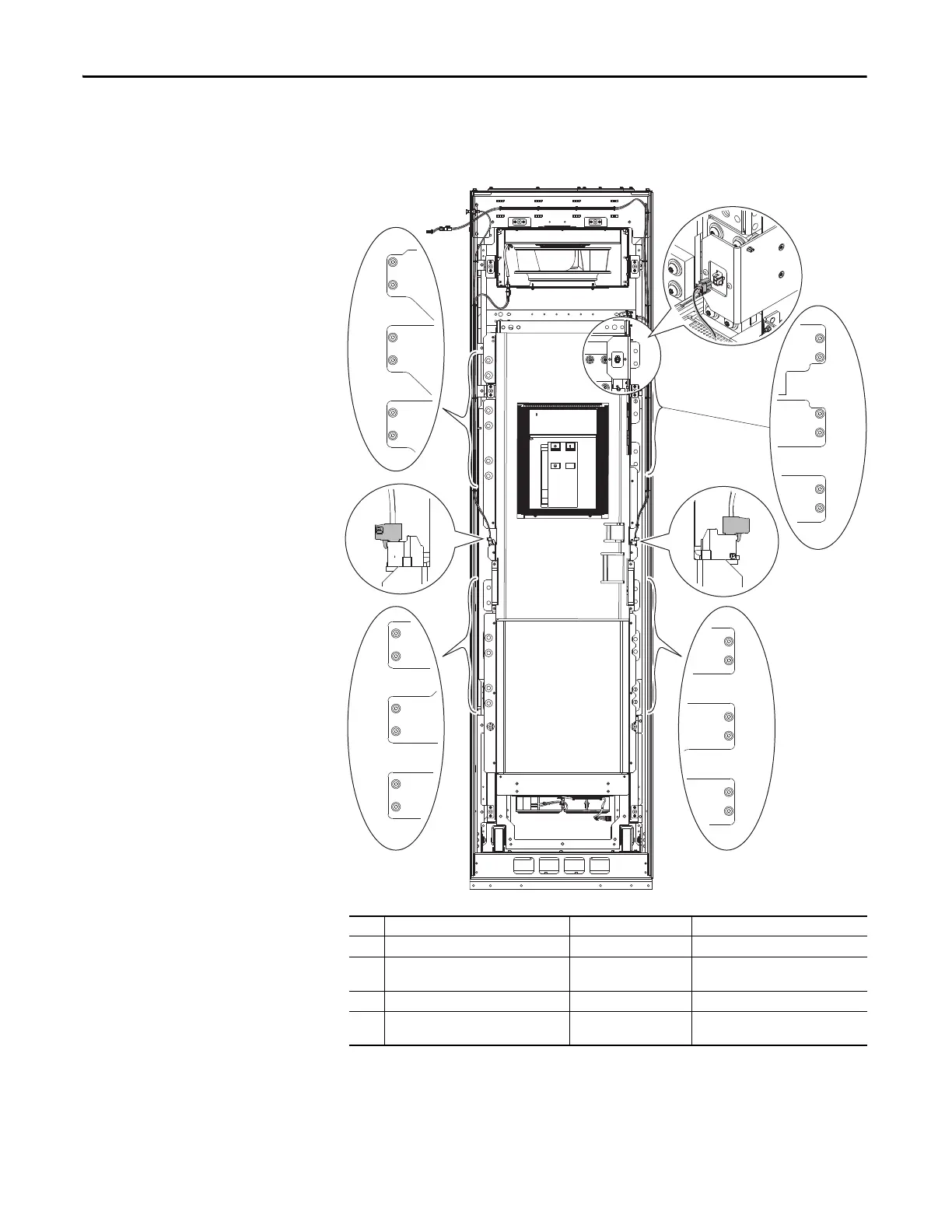

Figure 82 - Cabinet Options Wire Harness and Electrical Connections
No. Description Torque Recommended Tool
Thermostat connection (plug). N/A N/A
AC Input connections (12 places) 22.4 N•m (200 lb•in) T45 Hexalobular driver with ~457
mm (18 in) extension
Terminal block connections (plugs). N/A N/A
Output Reactor connections (12 places) 22.4 N•m (200 lb•in) T45 Hexalobular driver with ~457
mm (18 in) extension
