Rockwell Automation Publication 750-IN001O-EN-P - October 2014 125
Lift and Mount the Drive Chapter 3
Disconnect Control and
Power Wire Harnesses
AC Input Drives

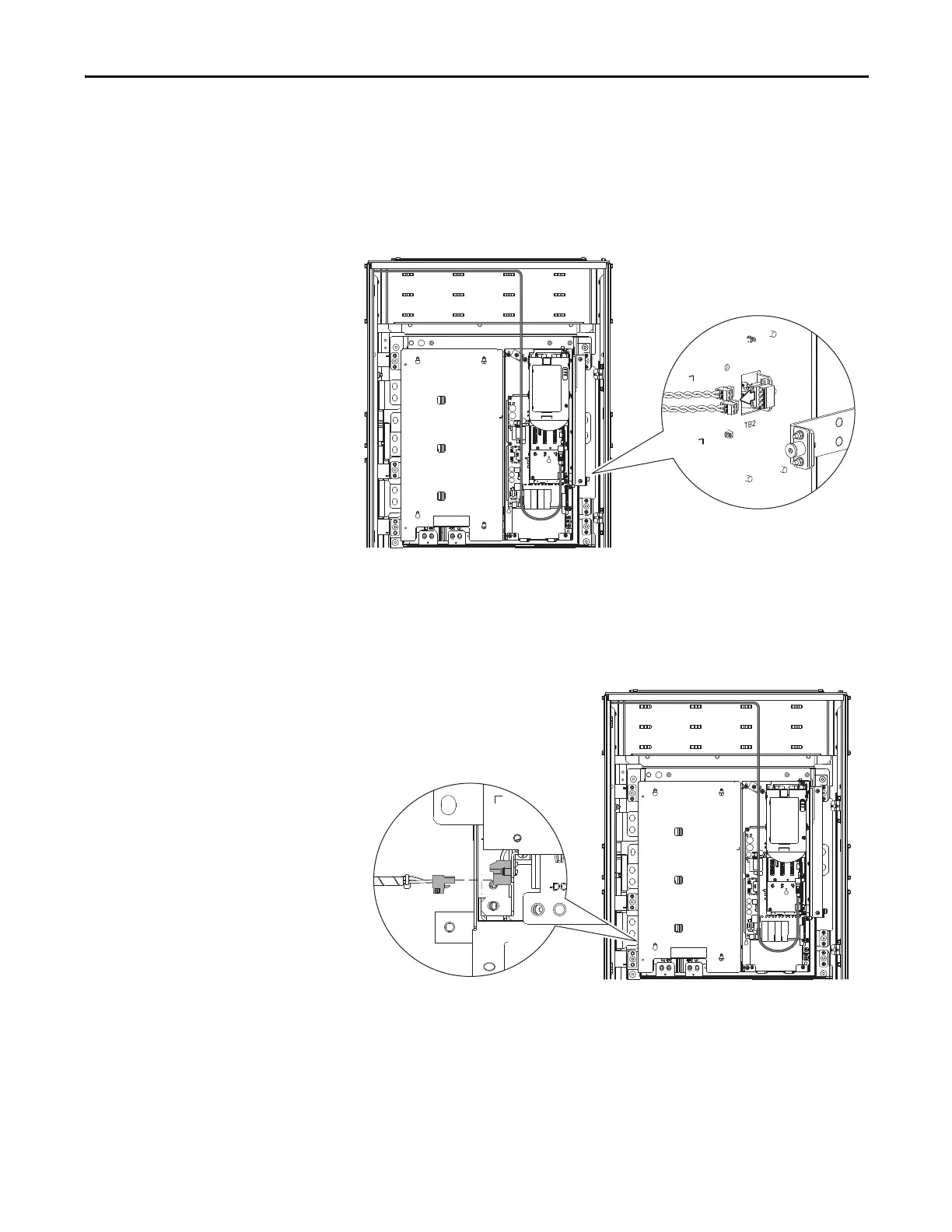

1. Disconnect the cabinet fan /cabinet blower assembly wiring harness
from TB2-3 and TB2-4.
2. Disconnect the cabinet shunt trip harness (if used) from TB2-1 and
TB2-2.
Disconnect DC Bus Fuse Wire
Harness
AC Input Drives Floor Mount Frames 9 and Larger
Disconnect the DC Bus wiring harness from TB6.
