Rockwell Automation Publication 750-IN001O-EN-P - October 2014 271
I/O Wiring Chapter 5

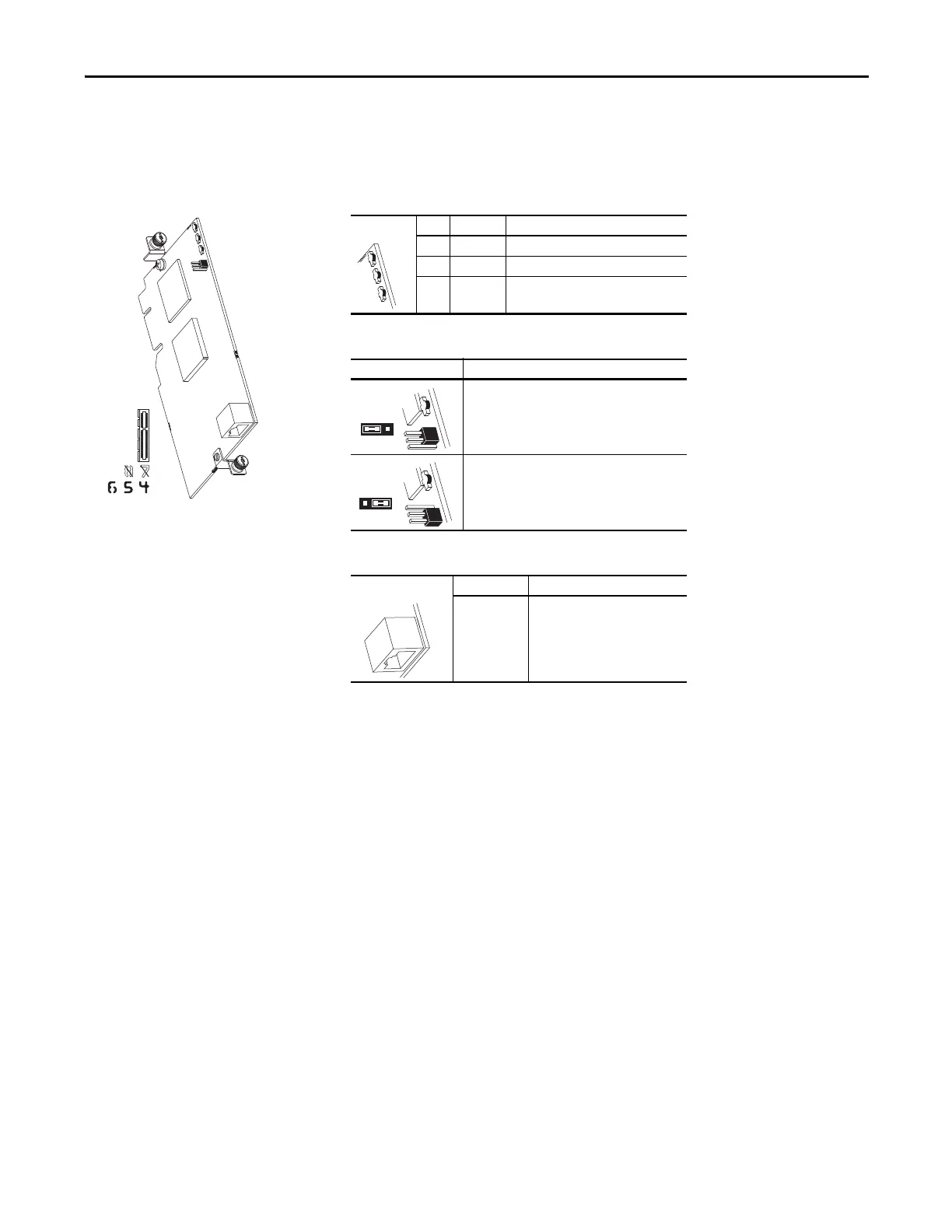

BACnet/IP Option Module
For complete information on the BACnet/IP Option Module, refer to the
PowerFlex 20-750-BNETIP BACnet/IP Option Module User Manual,
publication 750COM-UM005.
Table 81 - BACnet/IP Option Module LED Indication
Table 82 - P4 Address Selection Jumper
Table 83 - Ethernet Connector
LED Name Description
➊ PORT DPI Connection Status
➋ MOD Option Module Status
➌ NET A BACnet Status
Jumper Position Description
Default network address.
Configured network address.
Name Description
Ethernet RJ45
Connector
BACnet/IP connection to the
Ethernet network.
➊
➋
➌
1 2 3
P4
