Control Wiring - Early Frame
8 Drives with Cabinet Options
Control terminal block TB2 is mounted on the inside right panel of the cabinet
options bay on early production frame 8 drives. TB1 referenced in the
illustrations below resides on the main control board. See page 229
.
Table 97 - TB2 Terminal Block Specifications

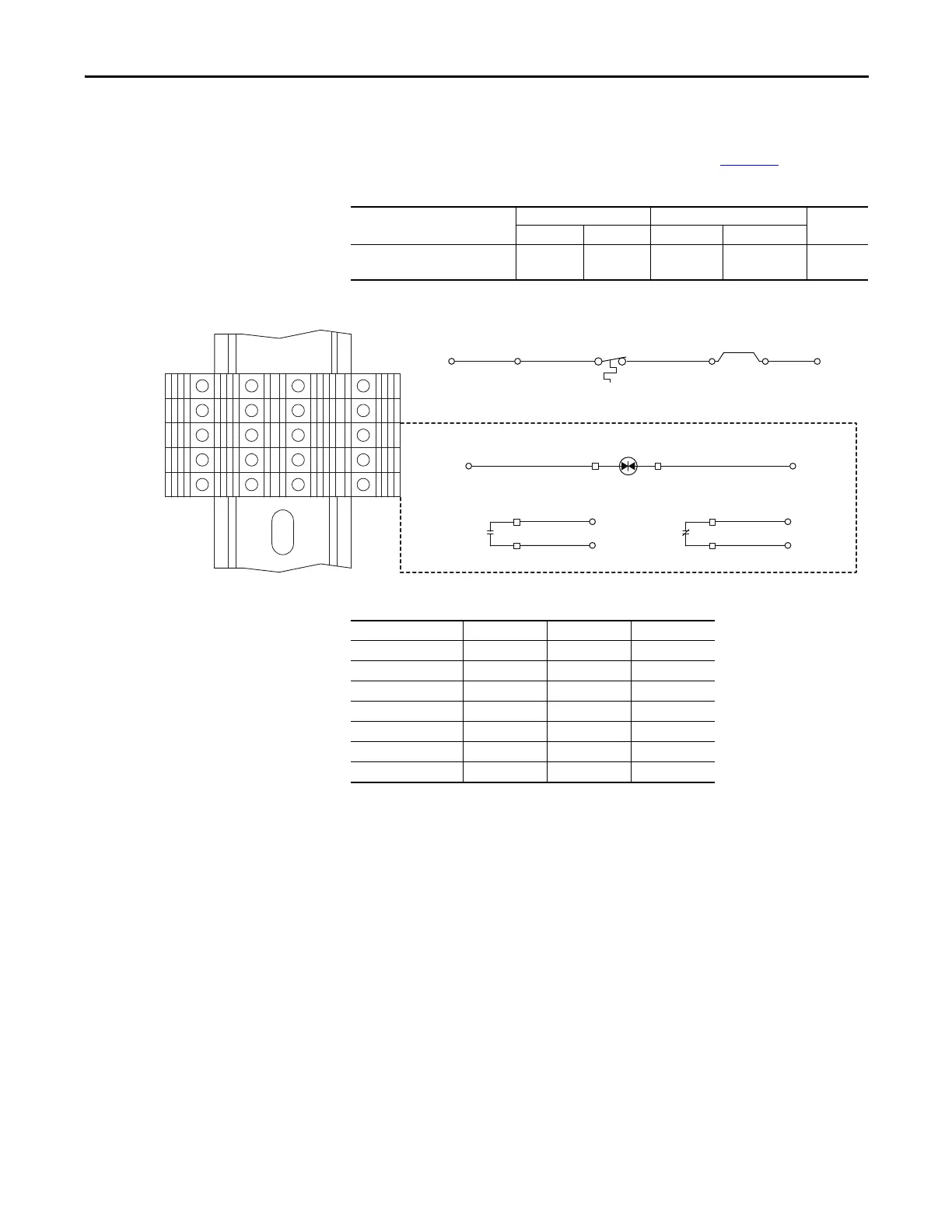

Figure 157 - Control Terminal Block TB2 - Floor Mount Frame 8 Drives
Table 98 - Input/Output Contactor Data
Name Wire Size Range Torque Strip
Length
Maximum Minimum Maximum Recommended
Control Terminal Block TB2 4.0 mm
2
(12 AWG)
0.5 mm
2
(20 AWG)
0.5 N•m
(4.5 lb•in)
0.4 N•m
(3.5 lb•in)
8 mm
(0.32 in.)
6
7
8
9
10
6
7
8
9
10
1
2
3
4
5
1
2
3
4
5
Input/Output Contactor
M2/M4
TB2(8)
TS1
Thermostat
TB2
W1
Hardware Enable Jumper
Note: Remove W1 jumper to
connect a hardware enable circuit.
TB2(7)TB2(6)
TB1(Di 0dc)
TB2(1)
TB1(+24V)
A1 A2
13
14
TB2(9)
TB2(4)
M2/M4
21
22
TB2(5)
TB2(10)
M2/M4
TB2(3)
Optional Devices
Cat. No.
(1)
(1) For full contactor specifications refer to publications 100D-SG001 and 100G-SG001.
Input Pick-Up Hold-In
100-D420EA11 50 Hz 490VA 18VA
100-D420ED11 60 Hz 490VA 18VA
100-D630EA11 50 Hz 1915VA 33VA
100-D630ED11 60 Hz 1915VA 33VA
100-D860EA11 50 Hz 1915VA 33VA
100-D860ED11 60 Hz 1915VA 33VA
100-G1200KD12 60 Hz 2,400VA 70VA
