Chapter 2 Prepare for Installation
Access Panels, Covers, and
Doors

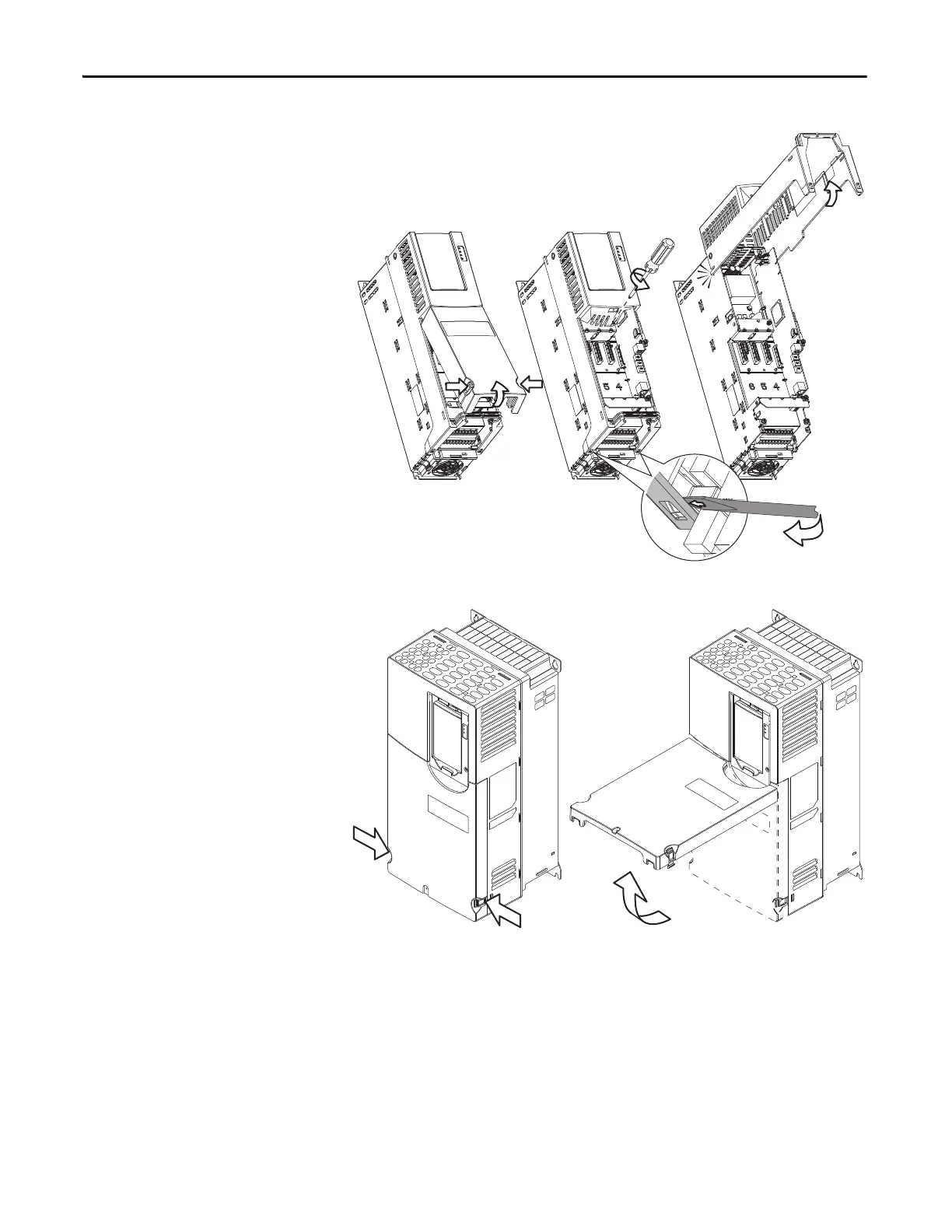

Figure 1 - Enclosure Code R (IP20, NEMA/UL Open Type) Wall Mount Frame 1
Figure 2 - Enclosure Code N (IP20, NEMA/UL Open Type) Wall Mount Frames 2…5
