Lift and Mount the Drive Chapter 3
Prepare the Roll-Out Cart
The 20-750-CART1-F8 Roll-out Cart is required to remove the drive assembly
from Floor Mount Frame 8…10 drive cabinets.

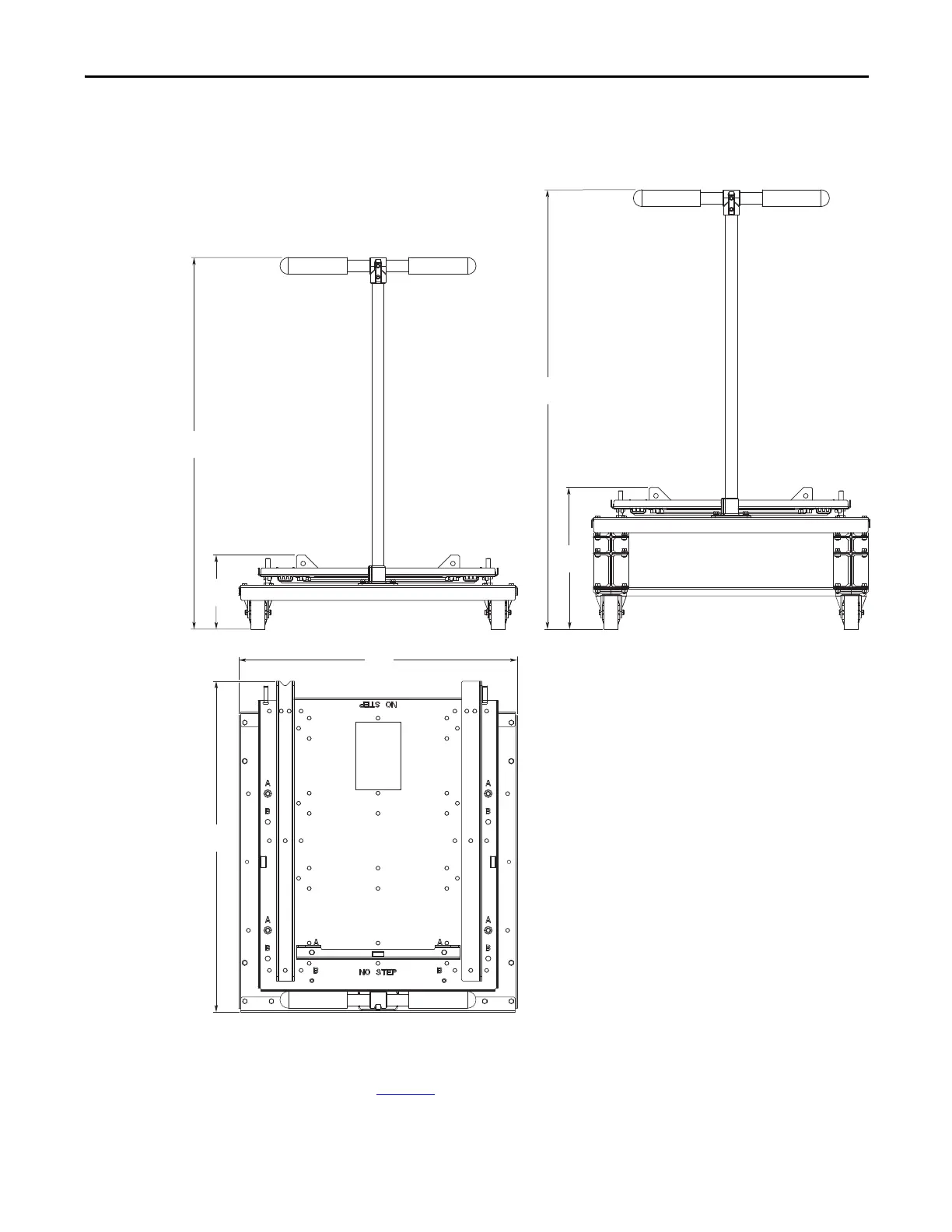

Figure 83 - Roll-out Cart Dimensions
Dimensions are in millimeters and (inches).
Approximate weight: 27.2 kg (60 lb)
See page 132
for spacer height combinations.
750.5
(29.5)
631.8
(24.9)
840.1
(33.1)
167.8
(6.6)
962.5
(37.9)
290.2
(11.4)
