Chapter 5 I/O Wiring
Control Transformer
Connections - Common DC
Input Drives
The Common DC Input drive control transformer is factory set to 120V AC
input. A 240V AC input setting is also available by changing primary wire
connections.

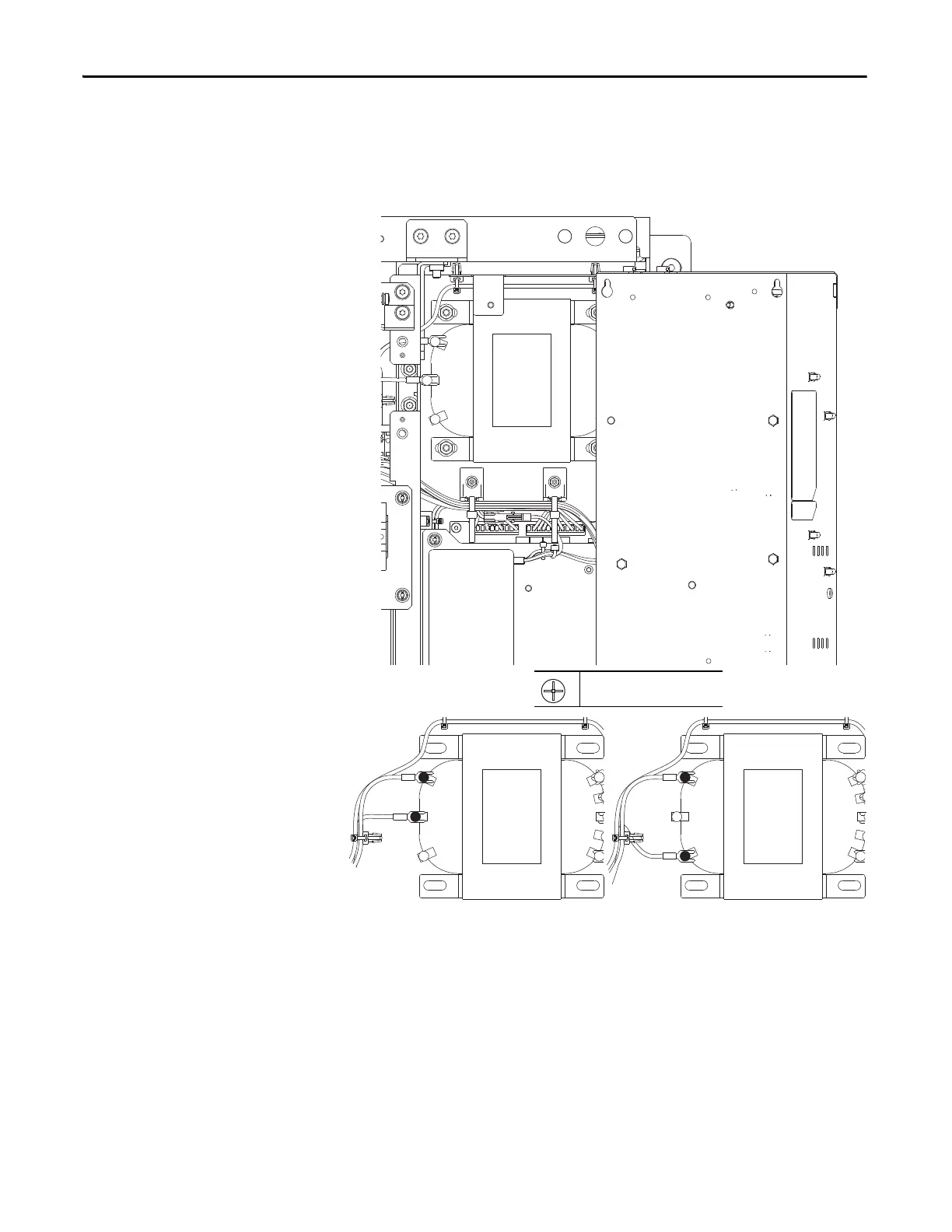

Figure 129 - Control Transformer Voltage Settings - Floor Mount Frames 8…10
120 Volt Tap
240 Volt Tap
P2
1.8 N•m (16 lb•in)
