Chapter 3 Lift and Mount the Drive

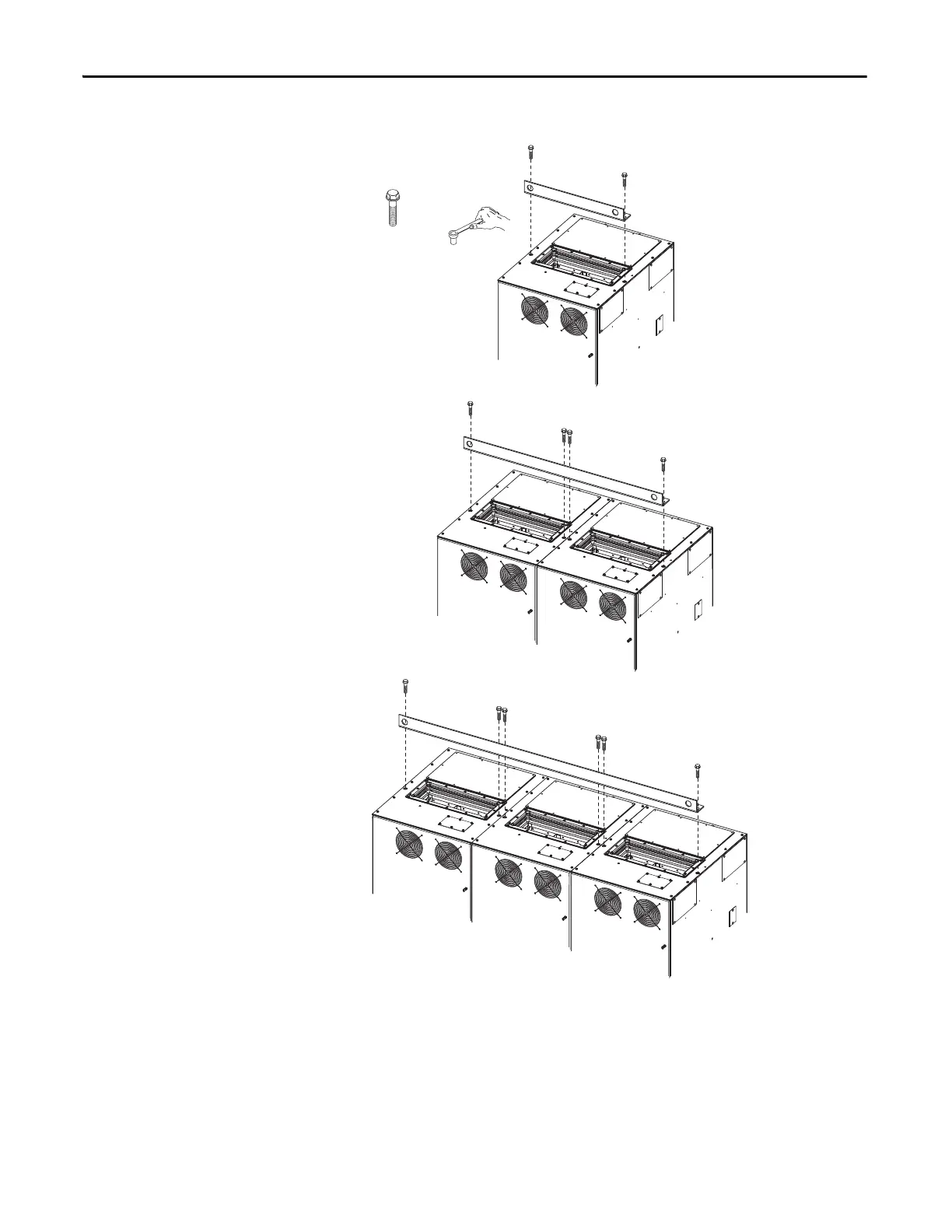

Remove Drive Cabinet Lifting
Angle
After the drive cabinet is in its final position, remove the lifting angle.
M12
67.8 N•m (600 lb•in)
18 mm
Floor Mount Frame 8
Floor Mount Frame 9
Floor Mount Frame 10
