Rockwell Automation Publication 750-IN001O-EN-P - October 2014 41
Lift and Mount the Drive Chapter 3

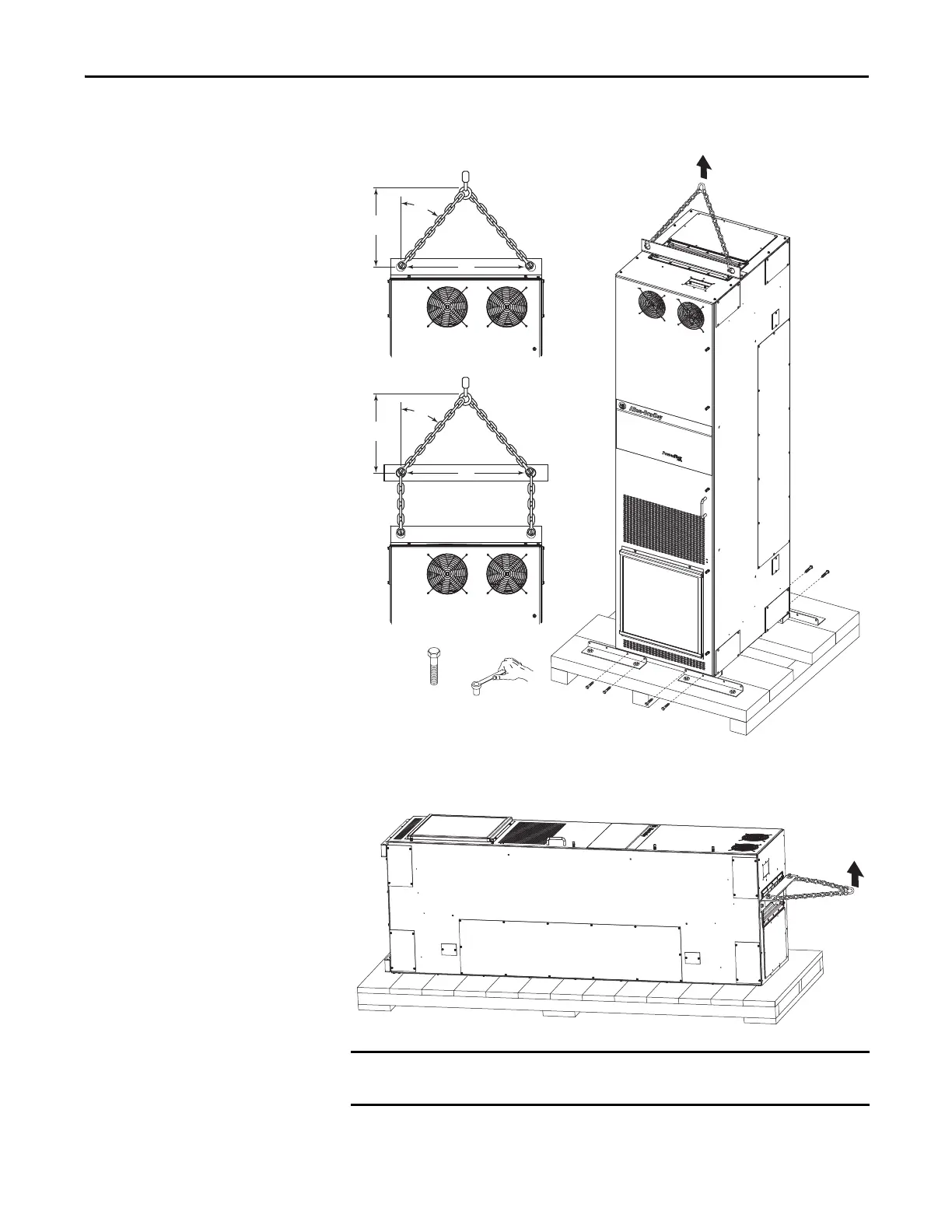

Release Floor Mount Drive
Cabinet From Shipping Skid
Remove the bolts fastening a vertically oriented drive cabinet to the shipping skid
and lift.
Remove the shipping crate that encloses a horizontally oriented drive cabinet on
the shipping skid and lift.
Drives equipped with the MCC bus option, with codes P20, P22, and P24 in the
catalog string, are not to be shipped horizontally.
>
1
/
2 A
A
<45°
>
1
/
2 A
A
<45°
M10 x 25
17 mm
