Chapter 3 Lift and Mount the Drive
Adjust Roll-Out Cart Height Using Spacers

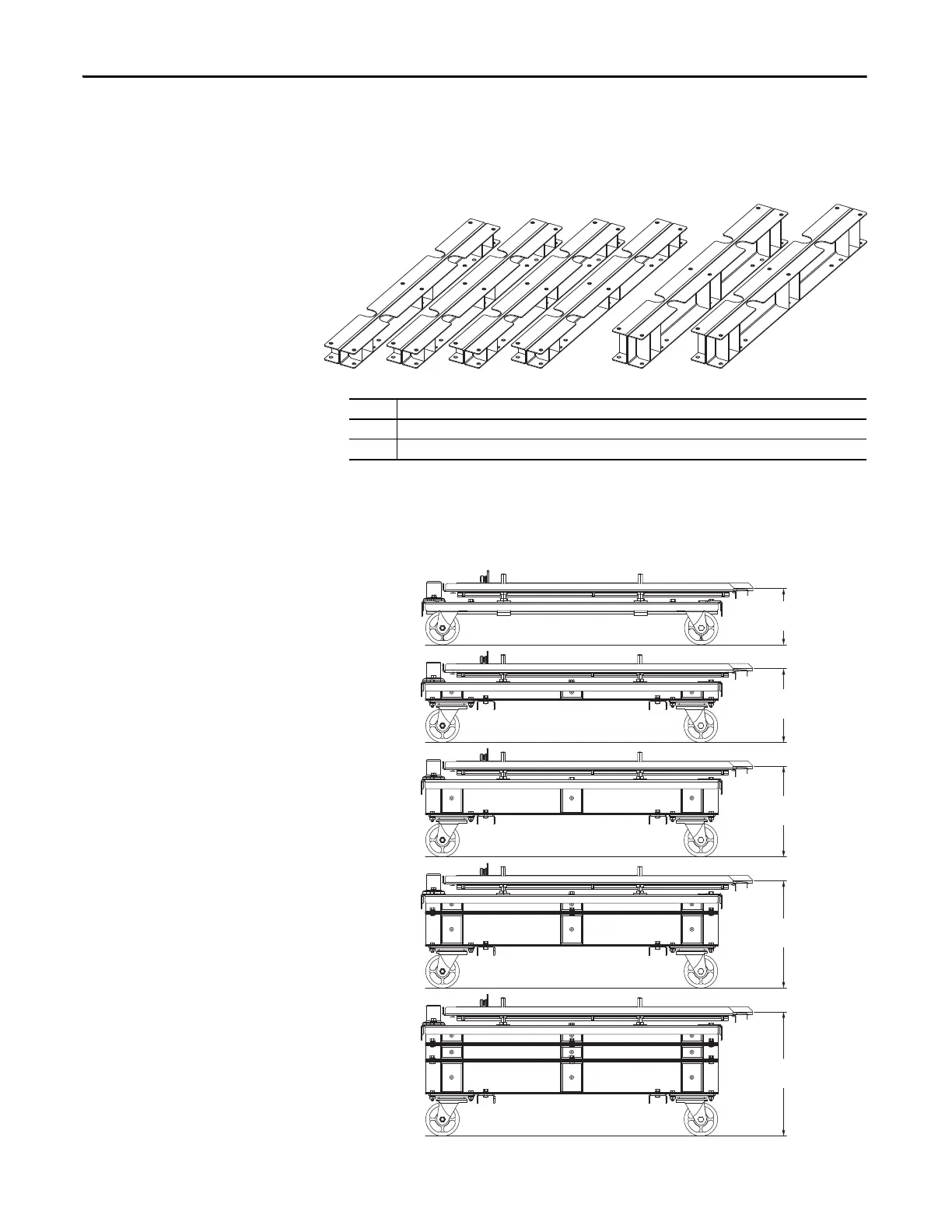

The height of the Roll-out Cart deck can be adjusted using the I-beam spacers
provided.
Spacer Height Combinations
Each of the base heights below have adjustment range of +30.0 mm (+1.2 in.)
and -9.5 mm (-0.4 in.).
➊
➋
No. Description
➊ Four 38.1 mm (1.5 in.) spacers
➋ Two 76.2 mm (3.0 in.) spacers
125.5
(4.9)
163.6
(6.4)
201.7
(7.9)
239.8
(9.4)
277.9
(10.9)
