Prepare for Installation Chapter 2

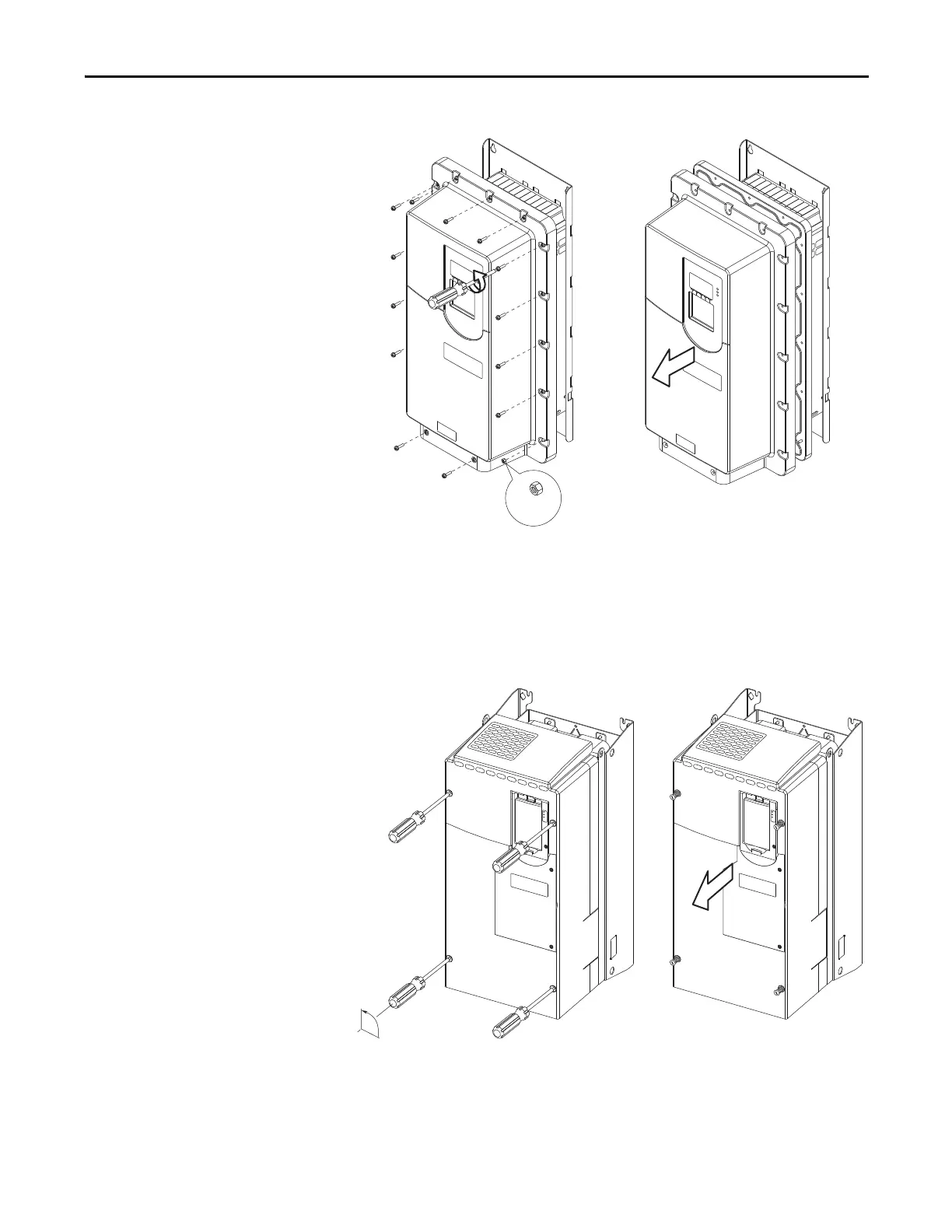

Figure 3 - Enclosure Code G (IP54, NEMA/UL Type 12) Wall Mount Frames 2…5
When cover is replaced:
• Recommended torque (screws and nuts) = 0.68 N•m (6.0 lb•in)
• Recommended screwdriver = 6.4 mm (0.25 in.) flat or T20 Hexalobular
• Recommended hex socket = 7 mm
Figure 4 - Enclosure Code N (IP00, NEMA/UL Open Type) Wall Mount Frames 6 and 7
When cover is replaced:
• Recommended screwdriver = 9.5 mm (0.375 in.) flat
2x:
M4 X 0.7
90°
