126 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive
Common DC Input Drives

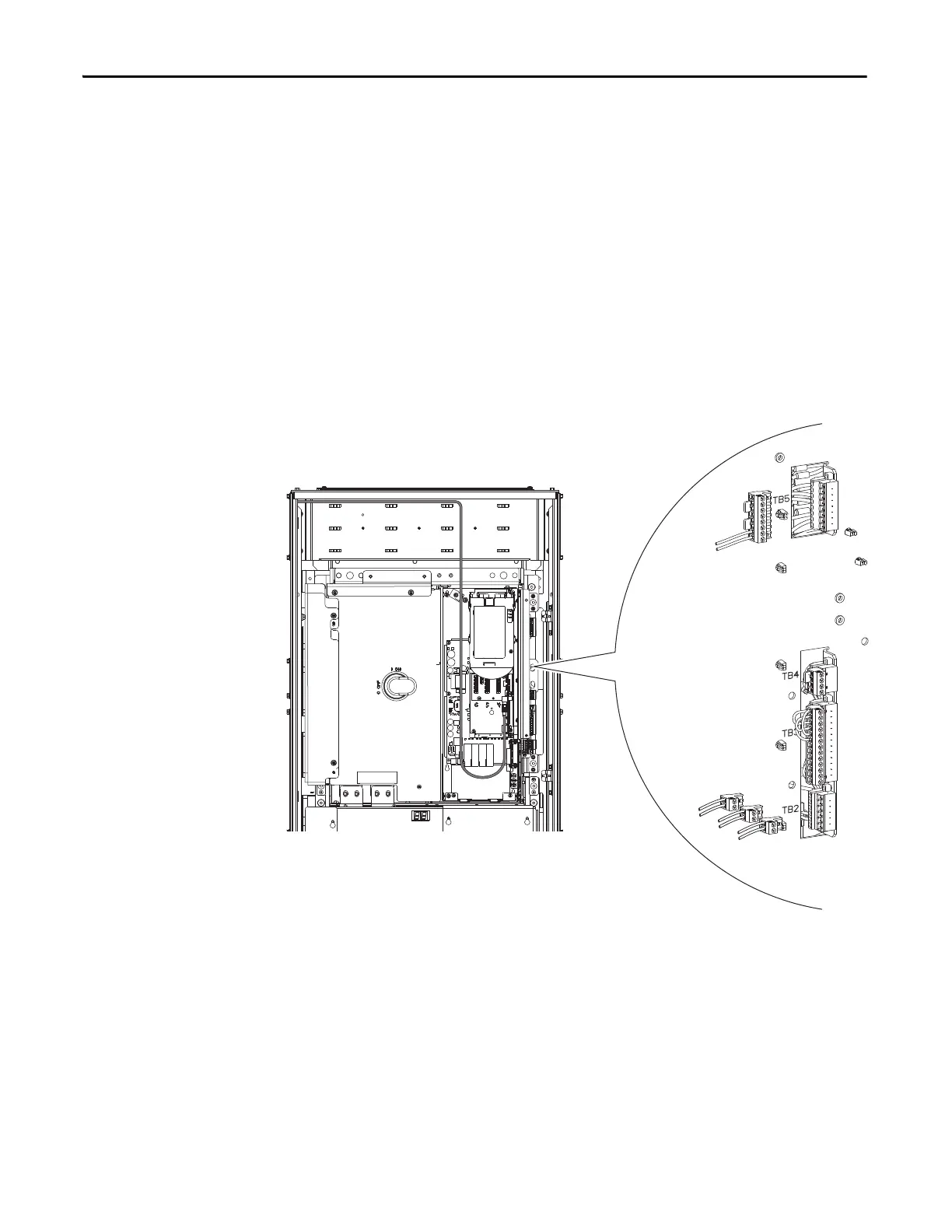

1. Disconnect the cabinet fan /cabinet blower assembly harnesses ➊ from
TB2-5 and TB2-6.
2. Disconnect the 120/240V control power input harness ➋ from TB2-3
and TB2-4.
3. Disconnect 120V UPS control power input ➌ (if used) from TB2-1 and
TB2-2.
4. Disconnect the digital I/O wiring ➍ (if used) from TB3
5. Disconnect the door interlock wiring ➎ (if used) from TB4
6. Disconnect the 120V UPS control power output wiring ➏ (if used) from
TB5.
➏
➊
➋
➌
➎
➍
To Next Page
