158 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 4 Power Wiring

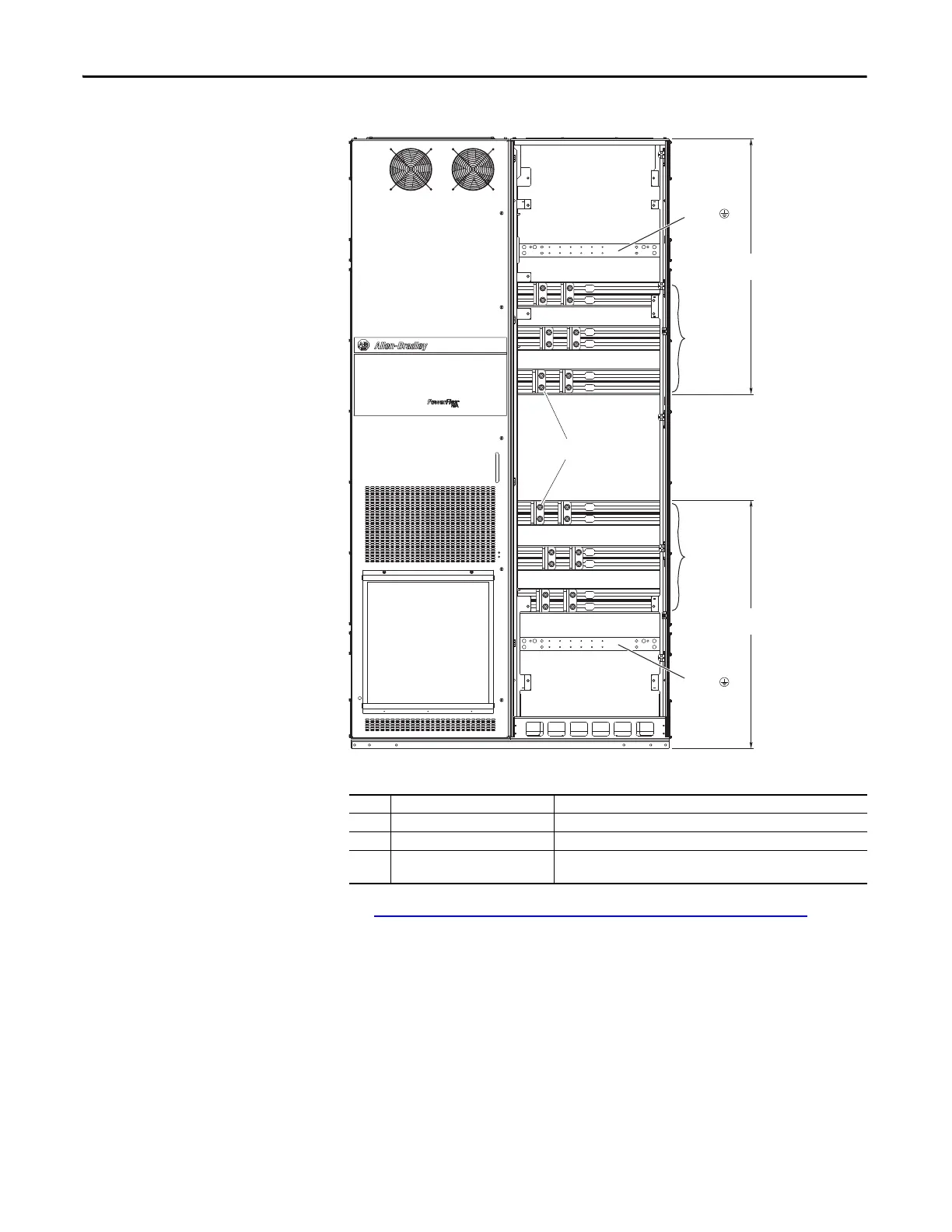

Figure 94 - Bus Bar Locations, Floor Mount Frame 8 Option P14 Wiring Bay
Table 13 - Floor Mount Frame 8 Wiring Bay
See Floor Mount Frames 8…10 Power Terminal L-Brackets on page 162 for
information on making cable connections on extruded bus bars.
No. Name Description
➊ Power Bus R/L1, S/L2, T/L3
➋ Power Bus U/T1, V/T2, W/T3
➌ PE Grounding Bar Terminating point to chassis ground for incoming AC line and motor
shield.
➋
➊
➌
➌
R / L1
S / L2
T / L3
U / T1
V / T2
W / T3
PE
PE
964
(38.0)
936
(36.9)
To Next Page
