Allen-Bradley PowerFlex 20-750-ENC-1

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 165
Power Wiring Chapter 4

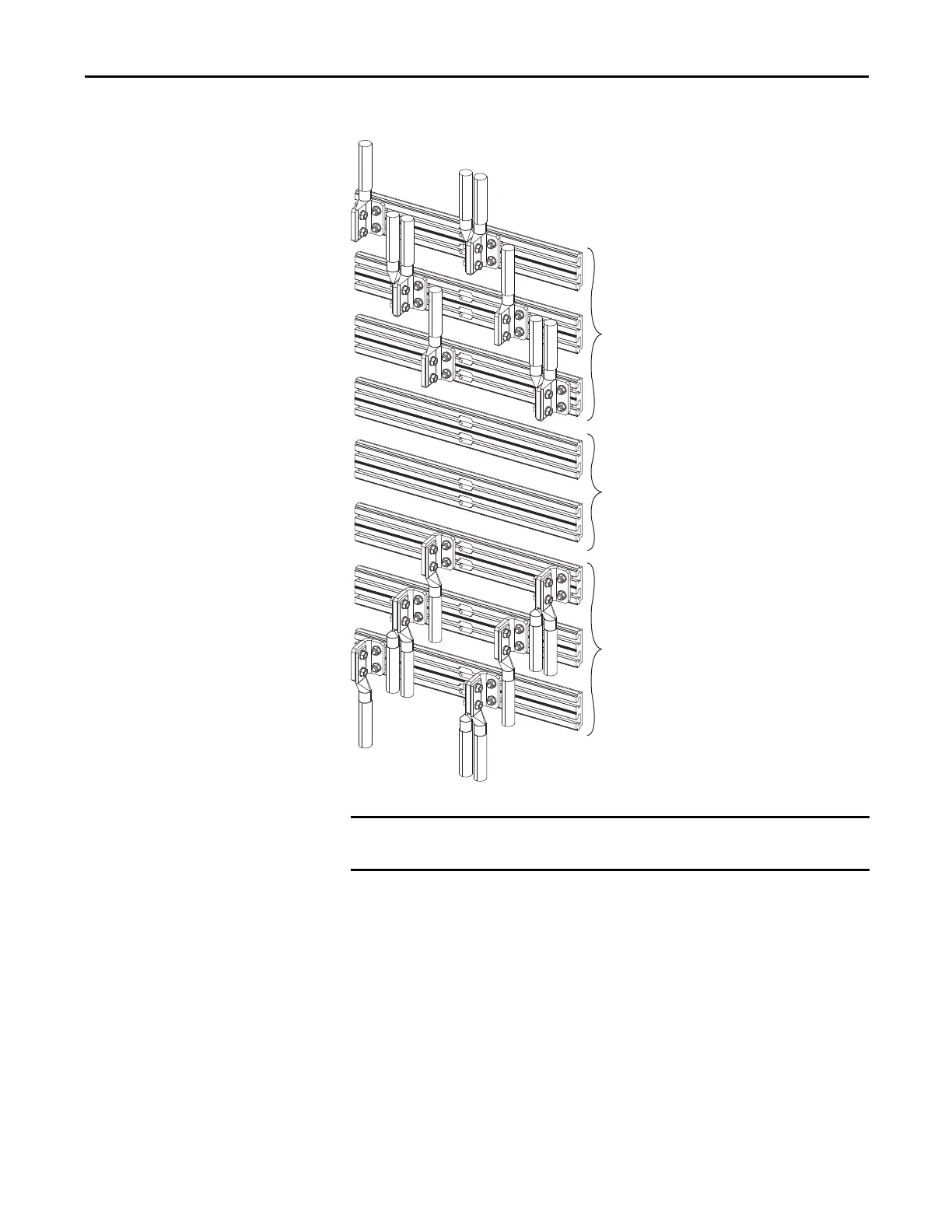

Figure 100 - Top And Bottom Entry Power Connection Example
IMPORTANT
Verify that all lug fasteners and L-brackets are properly torqued to 38.0 N•m
(336 lb•in). Torque down or remove any unused L-brackets.
AC Input
AC Output
DC Input
