Power Wiring Chapter 4

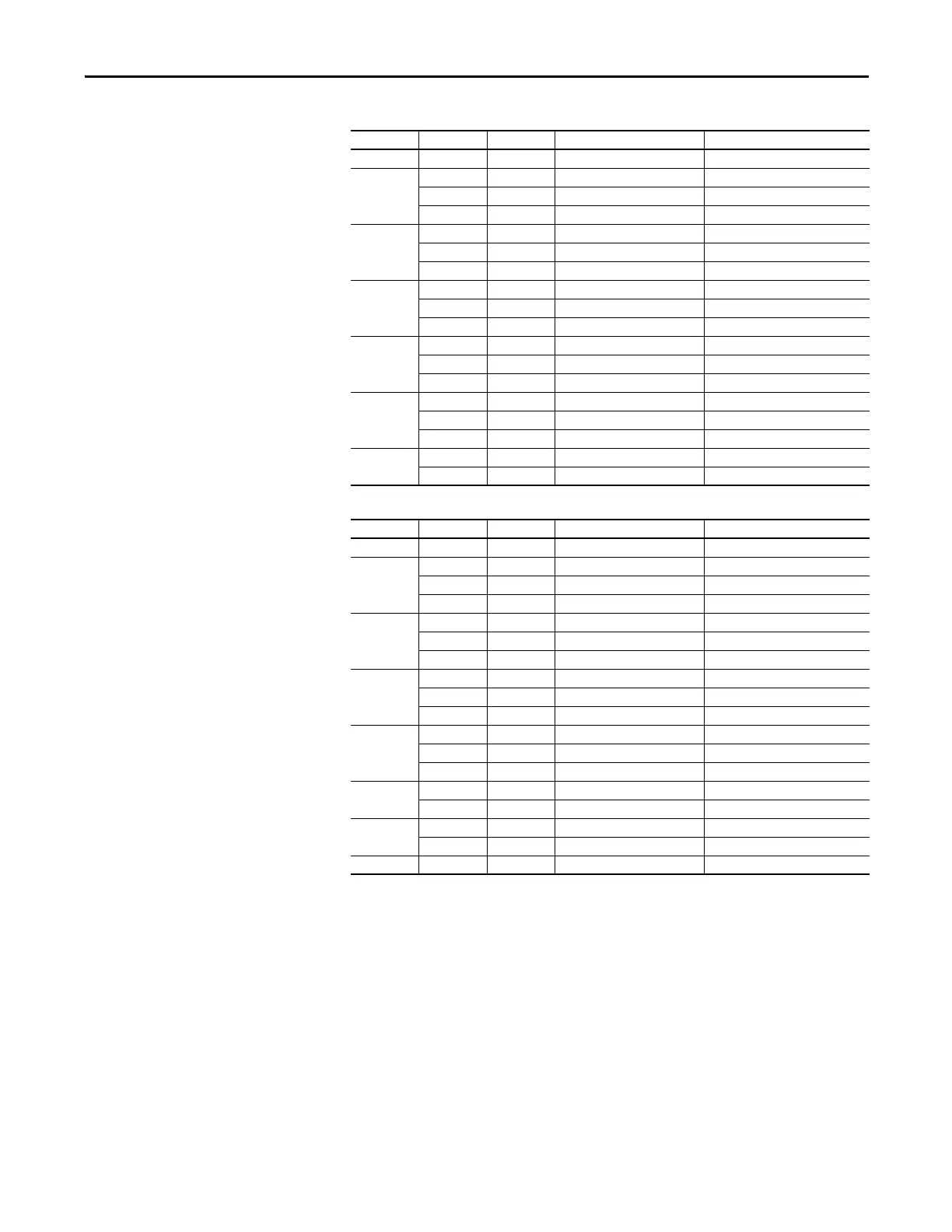

Table 23 - 400V, 50 Hz Input - Code P12 Output Contactor Options (Floor Mount Frame 8 Only)
Table 24 - 480V, 60 Hz Input - Code P12 Output Contactor Options (Floor Mount Frame 8 Only)
kW Amps Duty Contactor Cat. No. Recommended Torque
200 385 Heavy 100-D420EA11 17 N•m (150 lb•in)
250 460 Normal 100-D630EA11 68 N•m (600 lb•in)
456 Heavy 100-D630EA11 68 N•m (600 lb•in)
472 Heavy 100-D630EA11 68 N•m (600 lb•in)
315 540 Light 100-D630EA11 68 N•m (600 lb•in)
540 Normal 100-D860EA11 68 N•m (600 lb•in)
540 Heavy 100-D630EA11 68 N•m (600 lb•in)
315 585 Light 100-D630EA11 68 N•m (600 lb•in)
567 Normal 100-D630EA11 68 N•m (600 lb•in)
585 Heavy 100-D630EA11 68 N•m (600 lb•in)
355 612 Light 100-D630EA11 68 N•m (600 lb•in)
650 Normal 100-D860EA11 68 N•m (600 lb•in)
642 Heavy 100-D630EA11 68 N•m (600 lb•in)
400 750 Light 100-D860EA11 68 N•m (600 lb•in)
750 Normal 100-D860EA11 68 N•m (600 lb•in)
770 Normal 100-D860EA11 68 N•m (600 lb•in)
450 796 Light 100-D860EA11 68 N•m (600 lb•in)
832 Light 100-D860EA11 68 N•m (600 lb•in)
kW Amps Duty Contactor Cat. No. Recommended Torque
300 370 Heavy 100-D420ED11 17 N•m (150 lb•in)
350 430 Normal 100-D630ED11 68 N•m (600 lb•in)
414 Heavy 100-D420ED11 17 N•m (150 lb•in)
454 Heavy 100-D630ED11 68 N•m (600 lb•in)
400 485 Light 100-D630ED11 68 N•m (600 lb•in)
485 Normal 100-D630ED11 68 N•m (600 lb•in)
485 Heavy 100-D630ED11 68 N•m (600 lb•in)
450 545 Light 100-D630ED11 68 N•m (600 lb•in)
545 Normal 100-D630ED11 68 N•m (600 lb•in)
545 Heavy 100-D630ED11 68 N•m (600 lb•in)
500 590 Light 100-D630ED11 68 N•m (600 lb•in)
617 Normal 100-D630ED11 68 N•m (600 lb•in)
617 Heavy 100-D630ED11 68 N•m (600 lb•in)
600 710 Light 100-D860ED11 68 N•m (600 lb•in)
710 Normal 100-D860ED11 68 N•m (600 lb•in)
650 765 Light 100-G1200KD12 60 N•m (528 lb•in)
740 Normal 100-G1200KD12 60 N•m (528 lb•in)
700 800 Light 100-G1200KD12 60 N•m (528 lb•in)
