Chapter 5 I/O Wiring

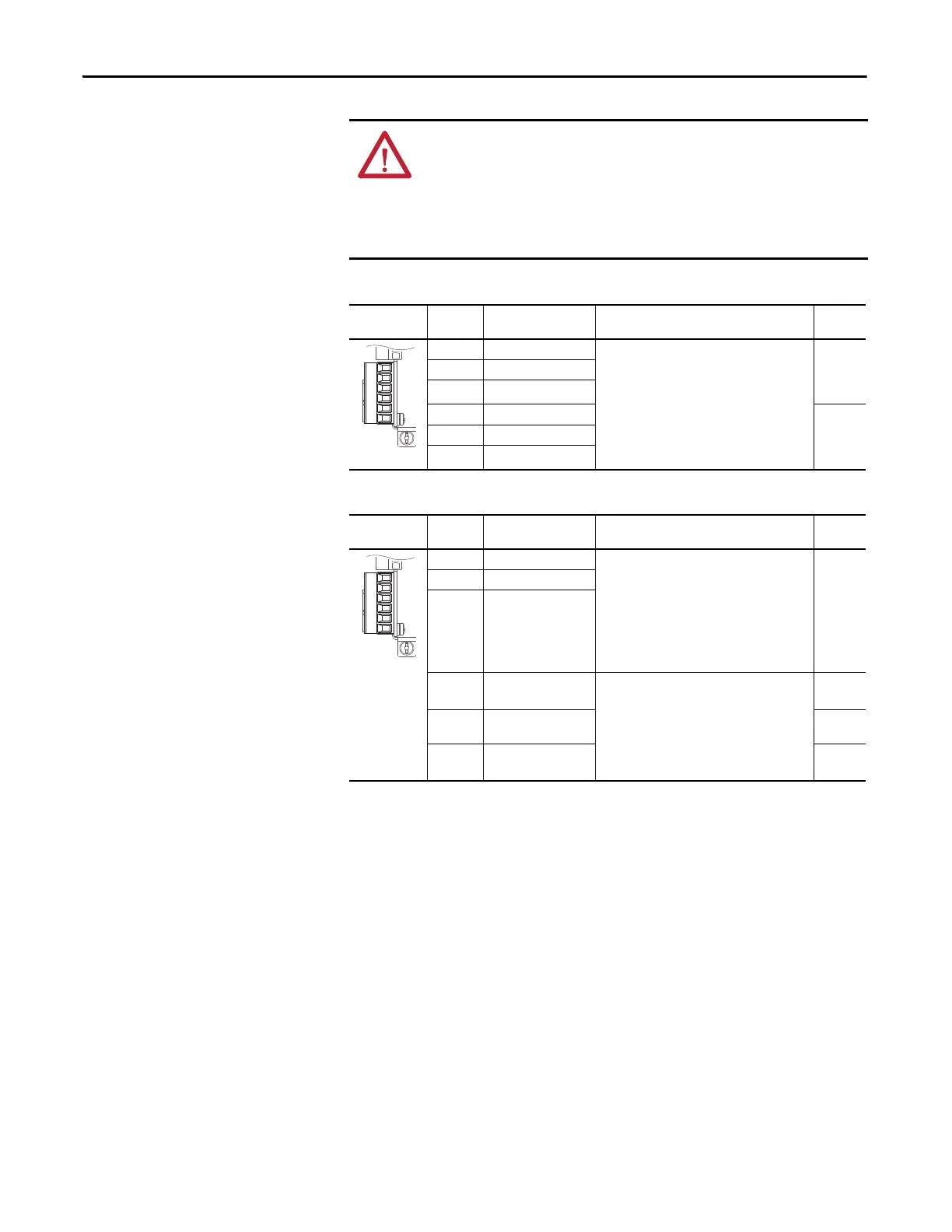

Table 61 - TB2 Terminal Designations (2 Relay Outputs: 2R)
Table 62 - TB2 Terminal Designations (1 Relay and 2 Transistor Outputs: 1R2T)
ATTENTION: Risk of equipment damage exists. Ensure that the correct voltage
is applied to the I/O Module digital inputs. Refer to the I/O Module catalog
number to determine the voltage rating.
• 20-750-2262C-2R is rated 24 Volts DC
• 20-750-2263C-1R2T is rated 24 Volts DC
• 20-750-2262D-2R is rated 120 Volts AC
Relay Out Terminal Name Description Related
Param
R0NO Relay 0 N.O. Relay Normally Open contact output:
240V AC, 24V DC, 2 A max.
General Purpose (Inductive) / Resistive
Relay Normally Closed contact output:
240V AC, 24V DC, 2 A max.
Resistive Only
10, 100,
101, 105,
106
on Port X
R0C Relay 0 Common
R0NC Relay 0 N.C.
R1NO Relay 1 N.O. 20, 110,
111, 115,
116
on Port X
R1C Relay 1 Common
R1NC Relay 1 N.C.
Relay Out Terminal Name Description Related
Param
R0NO Relay 0 N.O. Relay Normally Open contact output:
240V AC, 24V DC, 2 A max.
General Purpose (Inductive) / Resistive
Relay Normally Closed contact output:
240V AC, 24V DC, 2 A max.
Resistive Only
10, 100,
101, 105,
106
on Port X
R0C Relay 0 Common
R0NC Relay 0 N.C.
T0 Transistor Output 0 Transistor output
Rating: 24V DC = 1 A max.
24V DC = 0.4 A Max for U.L.
applications
Resistive
20
on Port X
TC Transistor Output
Common
T1 Transistor Output 1 30
on Port X
