Lift and Mount the Drive Chapter 3
3. Attach lifting hardware to the drive assembly.
Follow lifting instructions and precautions beginning on page 35
.
4. Locate the factory-assembled drive cabinets and cabinet options bay in its
final position.

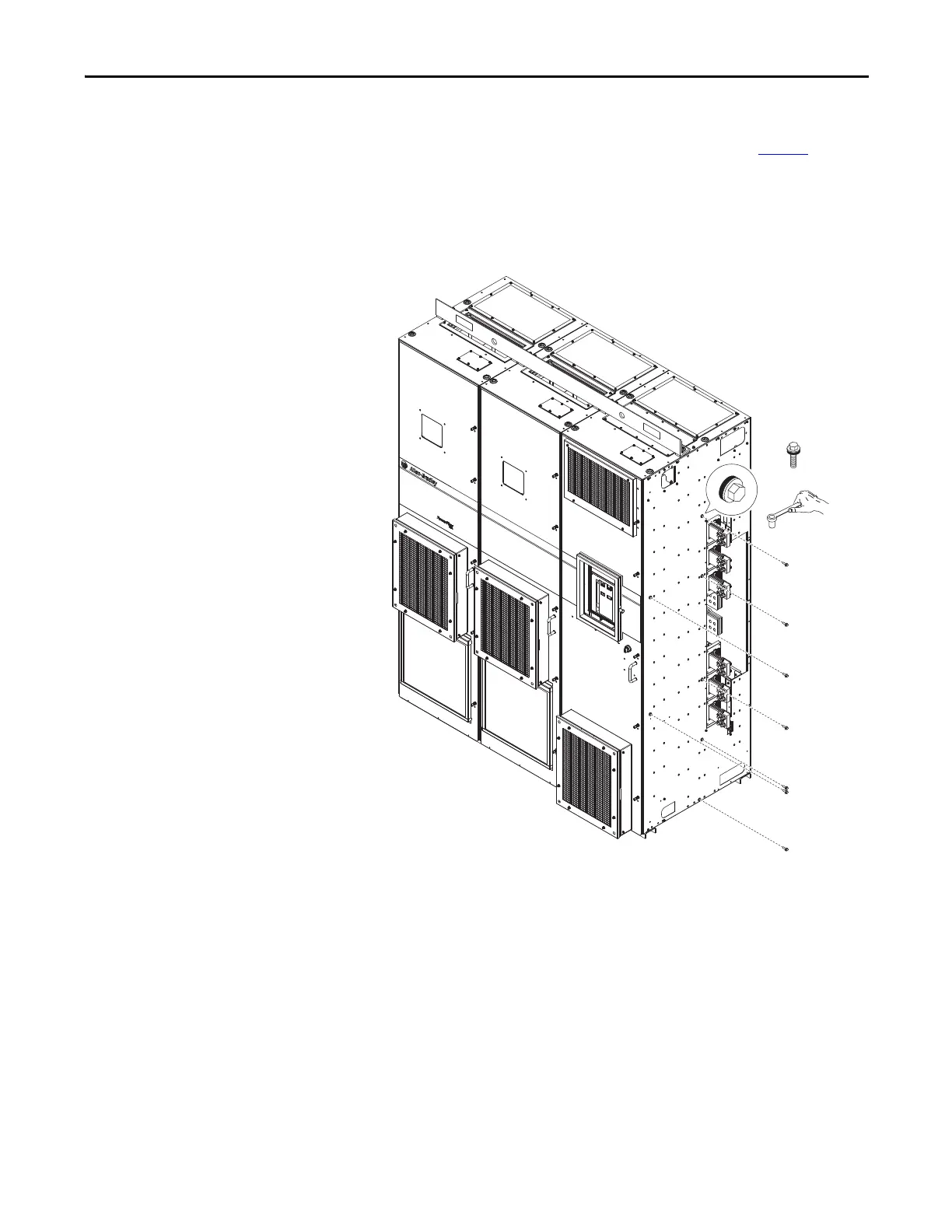

5. Remove and discard the seven M8 sealing screws from the right side of the
cabinet options bay.
M8
13 mm
IP54, NEMA 12 Enclosure Rating Shown
