Chapter 3 Lift and Mount the Drive
10. Align the wiring bay with cabinet options bay.

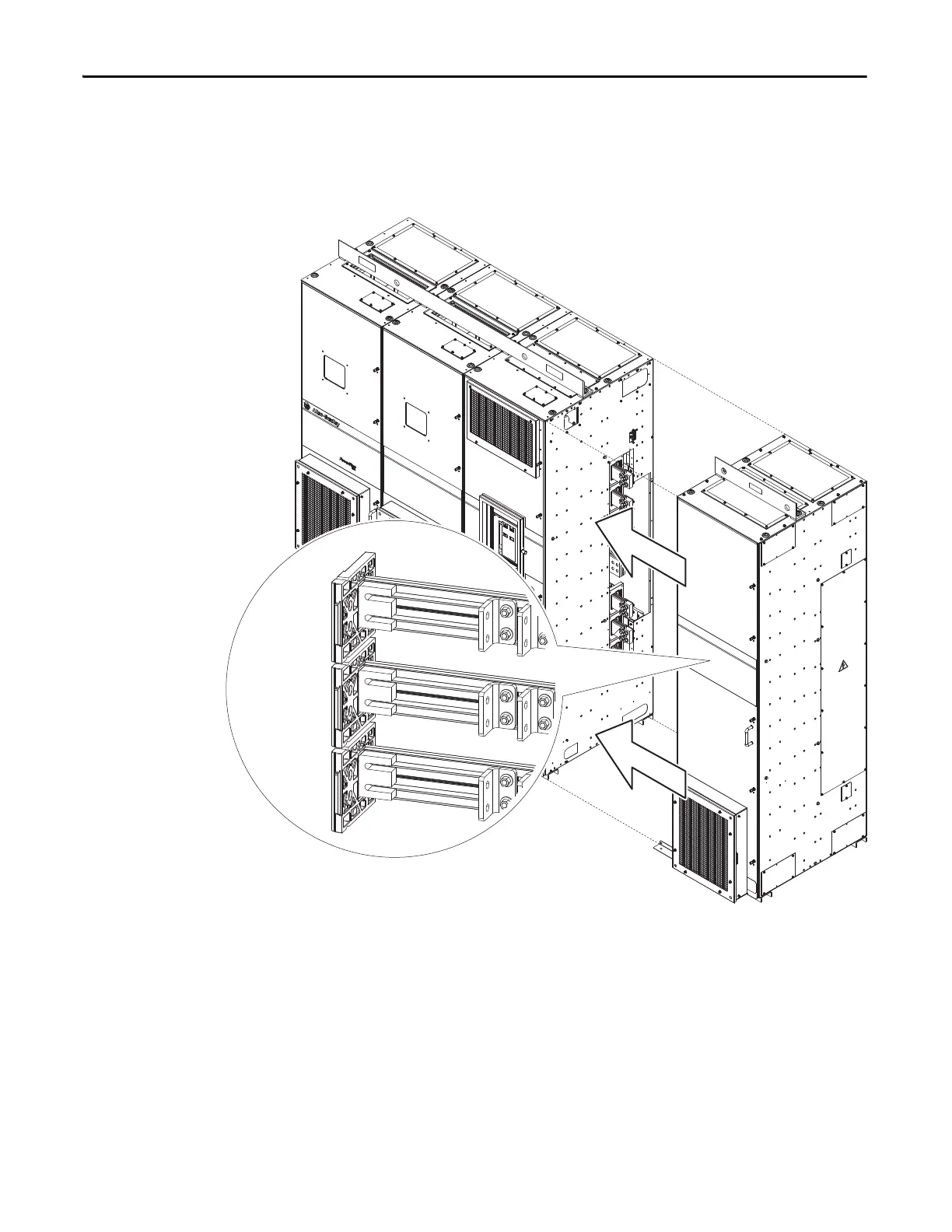

11. Bring the cabinets together ➊.
The bus bar couplers extend from the cabinet options cabinet ➋ and align
with the bus bars in the wiring bay.
