Allen-Bradley PowerFlex 20-750-ENC-1

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 69
Lift and Mount the Drive Chapter 3

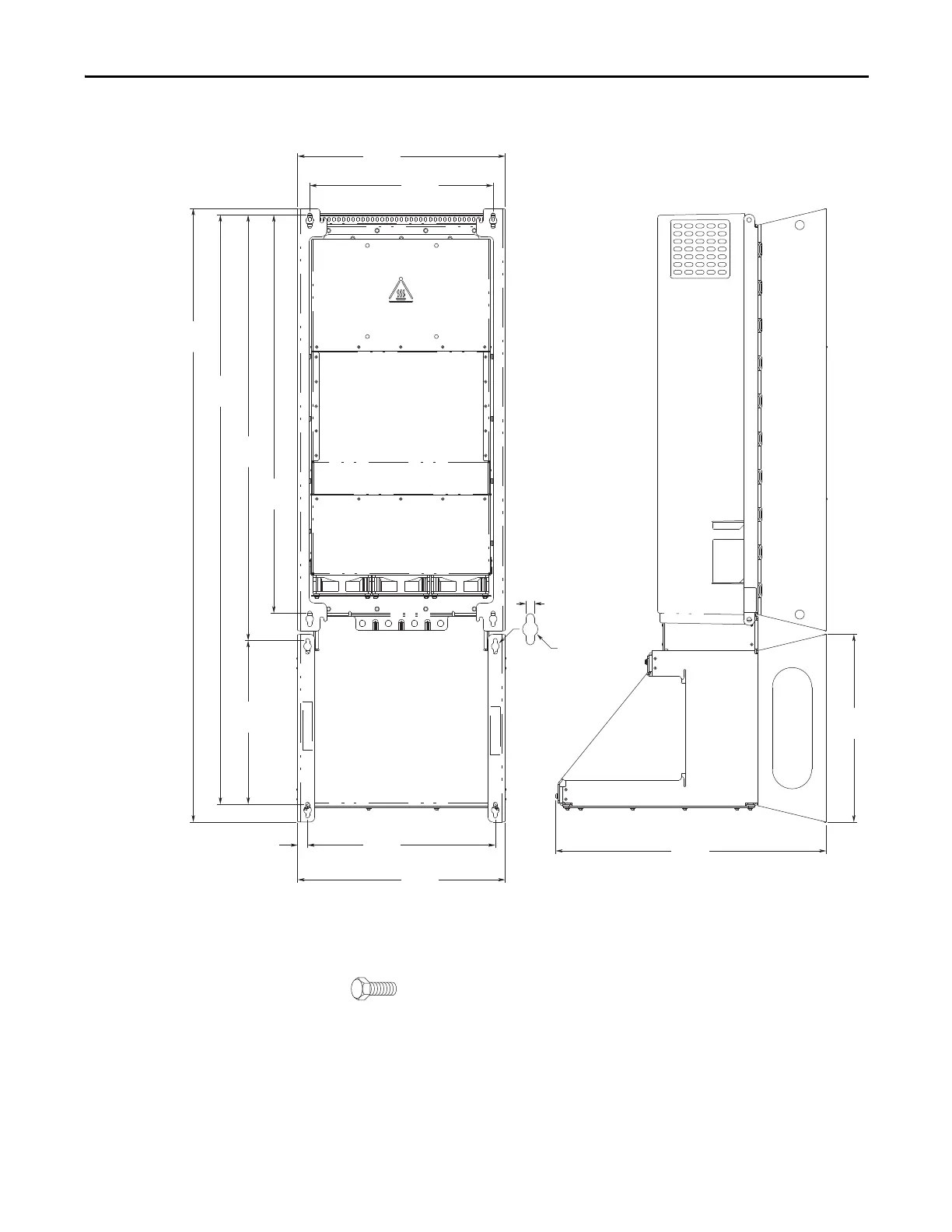

Figure 31 - NEMA/UL Type 1, Wall Mount Frame 7
Dimensions are in millimeters and (inches).
M8 (5/16 in.) mounting hardware recommended.
430.0
(16.93)
1271.0
(50.04)
1221.0
(48.07)
881.8
(34.72)
825.0
(32.48)
380.0
(14.96)
389.0
(15.31)
20.5
(0.81)
561.0
(22.08)
389.2
(15.32)
8.5 (0.33)
ø16.0 (0.63)
430.0
(16.93)
339.2
(13.35)
