Allen-Bradley PowerFlex 4 Original Instructions

Rockwell Automation Publication 22-TD001I-EN-P - June 2013 29

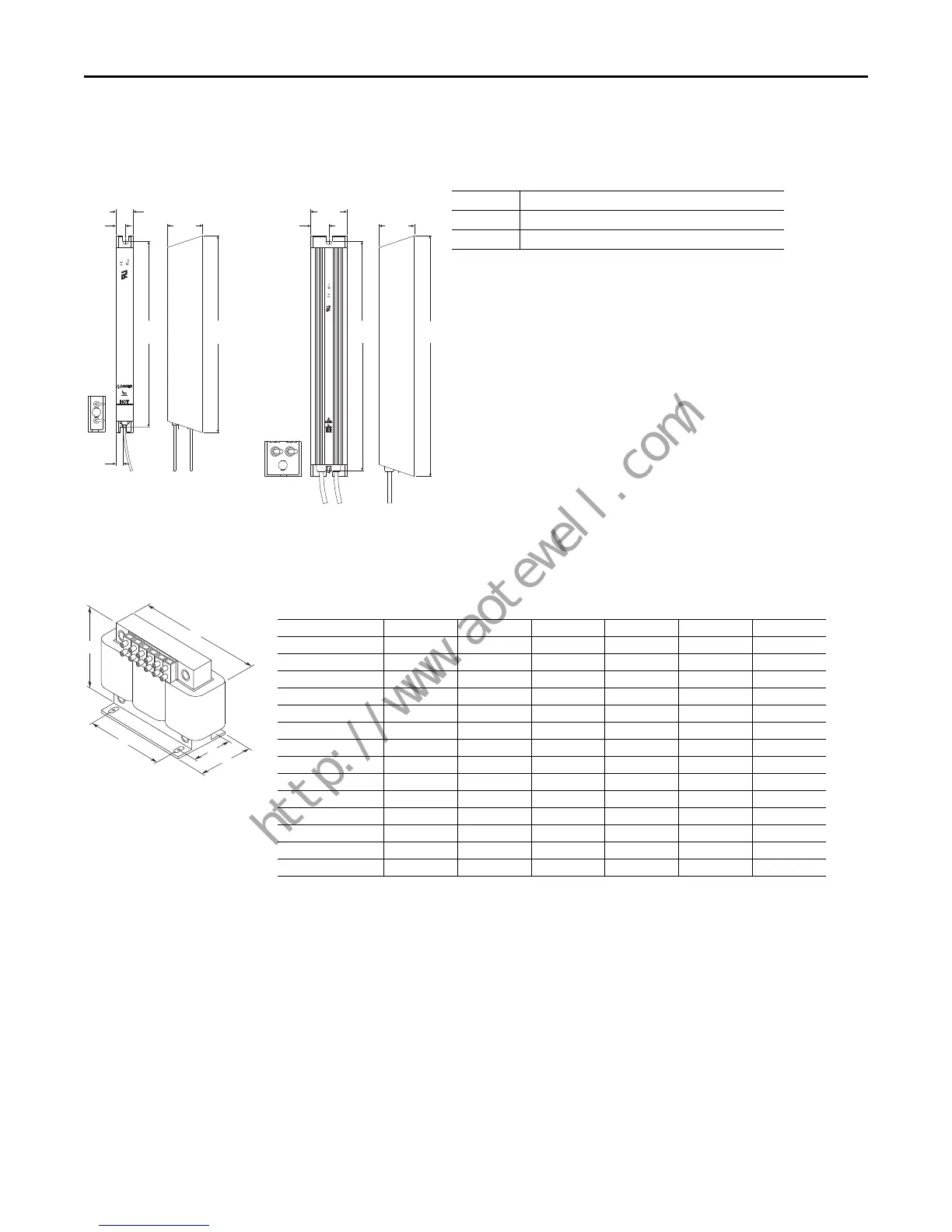

PowerFlex 4 and 40 AC Drives
Dynamic Brake Resistors
Dimensions are in millimeters and (inches)
Bulletin 1321-3R Series Line Reactors
Dimensions are in millimeters and (inches). Weights are in kilograms and (pounds).
335.0
(13.19)
60.0
(2.36)
30.0
(1.18)
17.0
(0.67)
59.0
(2.32)
13.0
(0.51)
405.0
(15.94)
386.0
(15.20)
316.0
(12.44)
61.0
(2.40)
31.0
(1.22)
CUS
SURFACES MAY BE
CUS
Frame A Frame B
Frame Catalog Number
A AK-R2-091P500, AK-R2-047P500, AK-R2-360P500
B AK-R2-030P1K2, AK-R2-120P1K2
D
C
B
A
E
Catalog Number A B C D E Weight
1321-3R2-A 112 (4.40) 104 (4.10) 70 (2.75) 50 (1.98) 37 (1.44) 1.8 (4)
1321-3R2-B 112 (4.40) 104 (4.10) 70 (2.75) 50 (1.98) 37 (1.44) 1.8 (4)
1321-3R4-A 112 (4.40) 104 (4.10) 76 (3.00) 50 (1.98) 37 (1.44) 1.8 (4)
1321-3R4-B 112 (4.40) 104 (4.10) 76 (3.00) 50 (1.98) 37 (1.44) 1.8 (4)
1321-3R4-C 112 (4.40) 104 (4.10) 86 (3.38) 60 (2.35) 37 (1.44) 2.3 (5)
1321-3R8-A 152 (6.00) 127 (5.00) 76 (3.00) 53 (2.10) 51 (2.00) 3.1 (7)
1321-3R8-B 152 (6.00) 127 (5.00) 76 (3.00) 53 (2.10) 51 (2.00) 3.6 (8)
1321-3R8-C 152 (6.00) 127 (5.00) 85 (3.35) 63 (2.48) 51 (2.00) 4.9 (11)
1321-3R12-A 152 (6.00) 127 (5.00) 76 (3.00) 53 (2.10) 51 (2.00) 4.1 (9)
1321-3R12-B 152 (6.00) 127 (5.00) 76 (3.00) 53 (2.10) 51 (2.00) 4.5 (10)
1321-3R18-A 152 (6.00) 133 (5.25) 79 (3.10) 54 (2.13) 51 (2.00) 4.1 (9)
1321-3R18-B 152 (6.00) 133 (5.25) 86 (3.40) 63 (2.48) 51 (2.00) 5.4 (12)
1321-3R25-A 183 (7.20) 146 (5.76) 85 (3.35) 60 (2.35) 76 (3.00) 4.9 (11)
1321-3R35-A 193 (7.60) 146 (5.76) 91 (3.60) 66 (2.60) 76 (3.00) 6.3 (14)
Aotewell Ltd
www.aotewell.com
Industry Automation
HongKong|UK|China
sales@aotewell.com
+86-755-8660-6182
http://www.aotewell.com/

Allen-Bradley PowerFlex 4 Specifications

General

Series	PowerFlex 4
Horsepower	0.2-3 HP
Enclosure	IP20
Output Frequency	0-400 Hz
Power Range	0.2…2.2 kW (0.25…3 HP)
Communication Options	RS-485
Storage Temperature	-40…85 °C (-40…185 °F)
Relative Humidity	5-95% non-condensing
Control Method	Volts per Hertz
