Rockwell Automation Publication 22-TD001I-EN-P - June 2013 3
PowerFlex 4 and 40 AC Drives

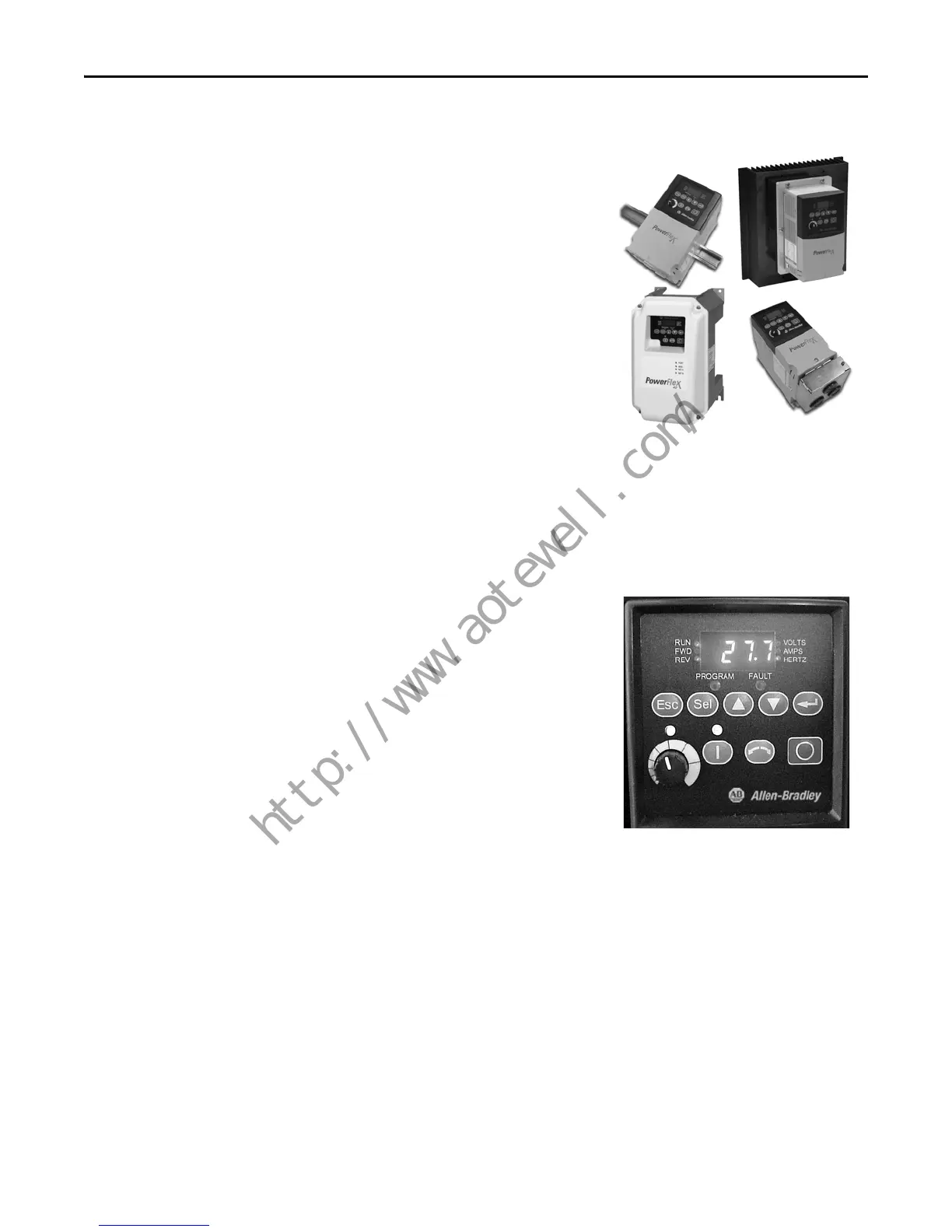

Packaging and Mounting
• Installation can be a virtual snap using the DIN rail mounting feature on
A and B frame drives. Panel mounting is also available, providing added
flexibility.
•Flange mount drives are available to reduce overall enclosure size.
•Zero Stacking™ is allowable for ambient temperatures up to 40 °C, saving
valuable panel space. 50 °C ambient temperatures are permitted with
minimal spacing between drives.
•Integral filtering is available on all 230V single phase ratings, providing a
cost-effective means of meeting EN55011, Class A and B EMC
requirements. External filters provide compliance to Class A and B
requirements for all PowerFlex 4 and 40 ratings.
• An optional IP30, NEMA/UL Type 1 conduit box is easily adapted to
the standard IP20 (NEMA Type Open) product, providing increased
environmental ratings.
• IP66, NEMA/UL Type 4X/12 (Indoor) for mounting directly in the
product environment. Listed by UL to resist dust, dirt, etc. and survive
high pressure water spray. Also certified by NSF to ensure conformity
with international food equipment standards.
Start Up, Programming and Operation
• An integral keypad provides out of the box operation using the local
potentiometer and control keys
.
• The 10 most common application parameters are contained in the Basic
Program Group, making programming fast and easy.
• The programming keys have the same function as all other PowerFlex
drives, so if you can program one PowerFlex drive, you can program them
all.
• 4 digit display with 10 additional LED indicators provides an intuitive
display of drive status and information.
• Integral RS-485 communications can be used for programming from a
PC. It can also be used in a multi-drop network configuration. A serial
converter module provides connectivity to any controller with a DF1
port.
• A NEMA/UL Type 4X remote and NEMA/UL Type 1 hand-held
LCD keypad provide additional programming and control flexibility,
both featuring the popular CopyCat function.
