Allen-Bradley PowerFlex 4 Original Instructions

Rockwell Automation Publication 22-TD001I-EN-P - June 2013 37

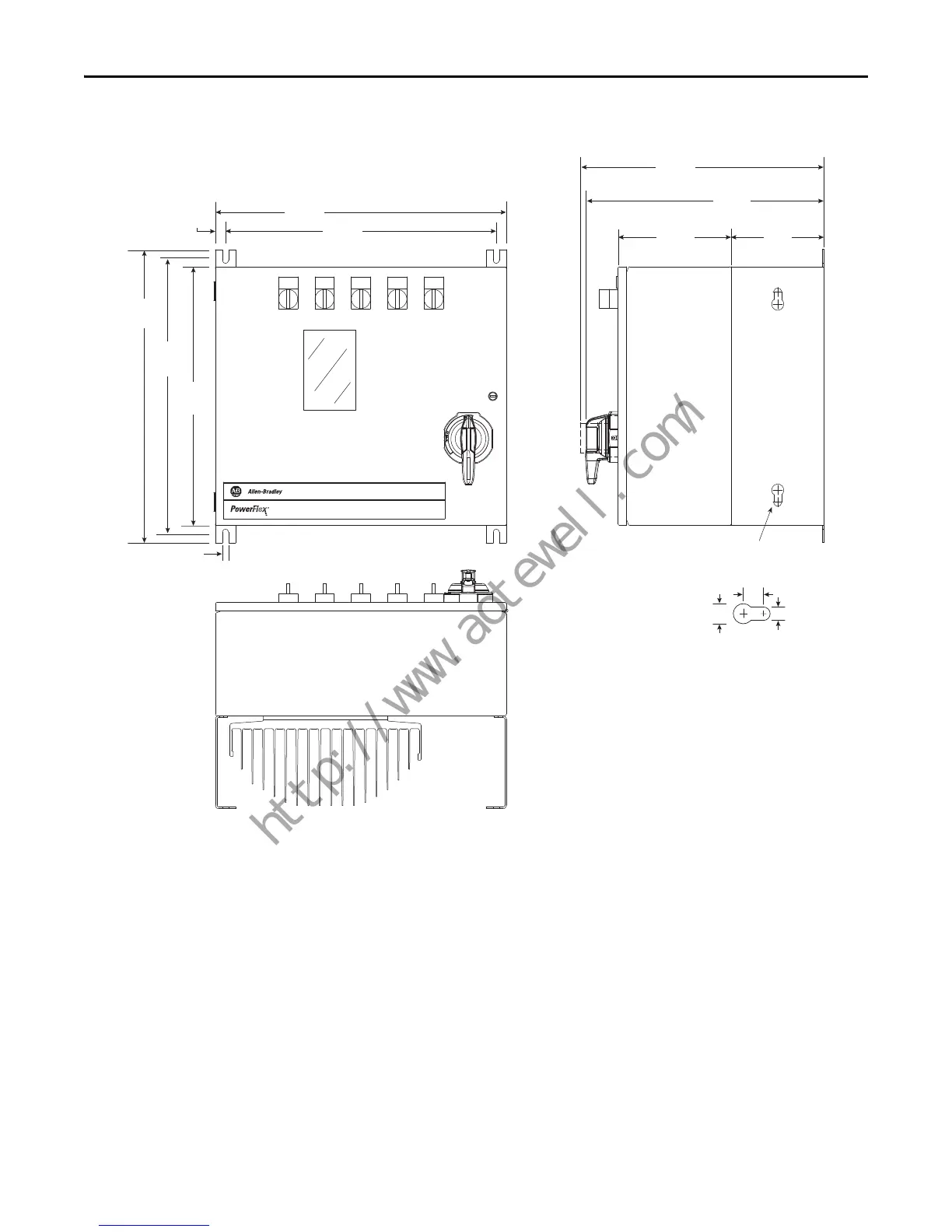

PowerFlex 4 and 40 AC Drives
19.1 (0.75)
19.1
(0.75)
12.7 (0.50)
177.8
(7.00)
Detail
146.1
(5.75)
460.8
(18.14)
406.4
(16.00)
427.2
(16.82)
16.0
(0.63)
425.2
(16.74)
457.2
(18.00)
Frame C
9.7
(0.38)
P3 Option
383.3
(15.09)
P6 Option
375.2
(14.77)
