Allen-Bradley PowerFlex 4 User Manual

1-16 Installation/Wiring

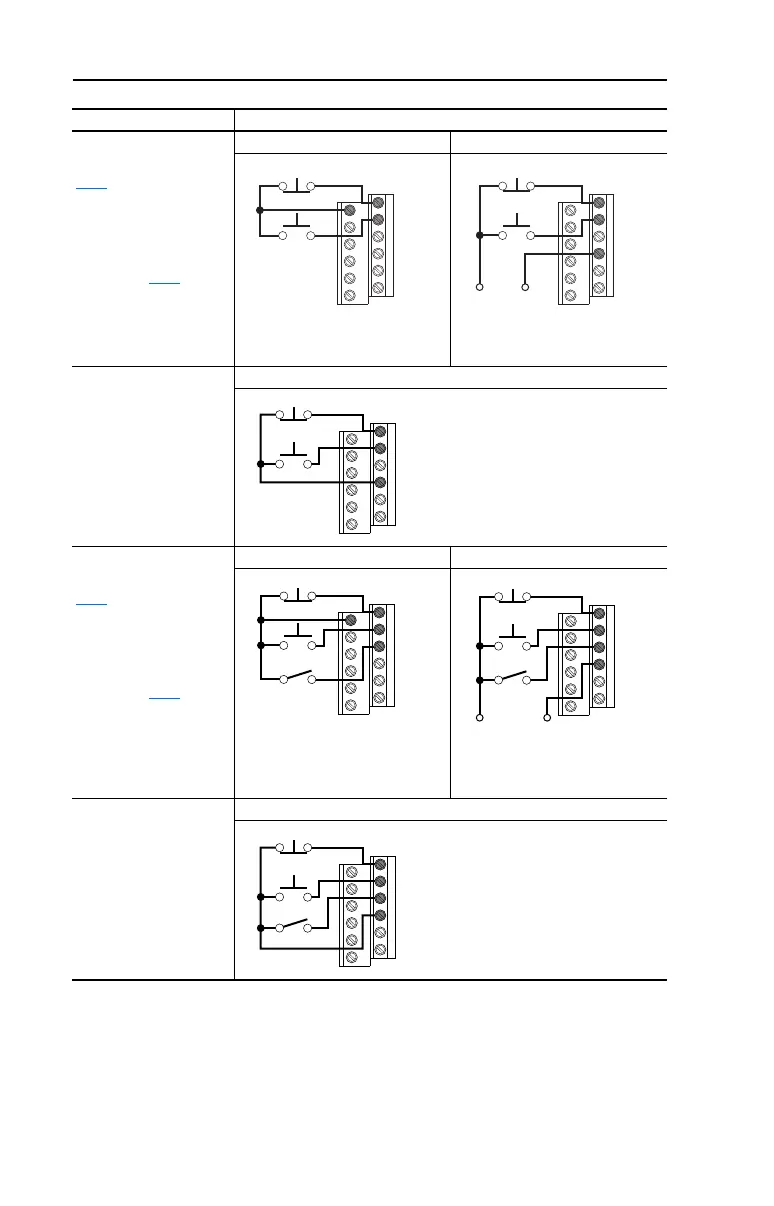

3 Wire SRC Control -
Non-Reversing
P036
[Start Source] = 1
A momentary input will
start the drive. A stop
input to I/O Terminal 01
will stop the drive as
specified by P037
[Stop
Mode].
Internal Supply (SRC) External Supply (SRC)
3 Wire SNK Control -
Non-Reversing
Internal Supply (SNK)
3 Wire SRC Control -
Reversing
P036 [Start Source] = 1
A momentary input will
start the drive. A stop
input to I/O Terminal 01
will stop the drive as
specified by P037
[Stop
Mode]. I/O Terminal 03
determines direction.
Internal Supply (SRC) External Supply (SRC)
3 Wire SNK Control -
Reversing
Internal Supply (SNK)
Input Connection Example
11
01
02
Stop
Start
01
02
04
+24V
Common
Stop
Start
Each digital input draws 6 mA.
Stop
Start
01
02
03
04
11
01
02
03
Stop
Start
Direction
+24V Common
Stop
Start
Direction
01
02
03
04
Each digital input draws 6 mA.
Stop
Start
Direction
01
02
03
04
