Allen-Bradley PowerFlex 4 User Manual

3-2 Programming and Parameters

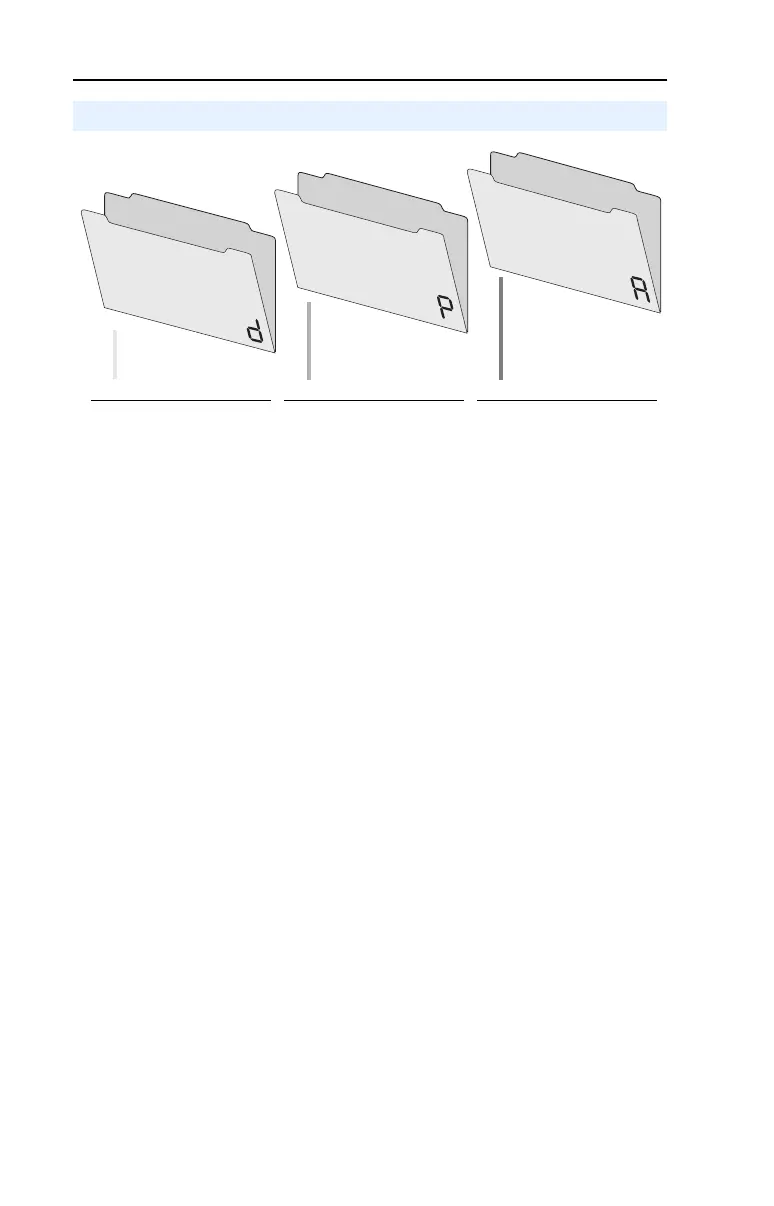

Parameter Organization
Display Group
Basic
Program Group
Advanced
Program Group
See page 3-8
Motor NP Volts P031
Motor NP Hertz P032
Motor OL Current P033
Minimum Freq P034
Maximum Freq P035
Start Source P036
Stop Mode P037
Speed Reference P038
Accel Time 1 P039
Decel Time 1 P040
Reset To Defalts P041
Motor OL Ret P043
See page 3-3
Output Freq d001
Commanded Freq d002
Output Current d003
Output Voltage d004
DC Bus Voltage d005
Drive Status d006
Fault 1 Code d007
Fault 2 Code d008
Fault 3 Code d009
Process Display d010
Control Source d012
Contrl In Status d013
Dig In Status d014
Comm Status d015
Control SW Ver d016
Drive Type d017
Elapsed Run Time d018
Testpoint Data d019
Analog In 0-10V d020
Analog In 4-20mA d021
Drive Temp d024
See page 3-13
Digital In1 Sel A051
Digital In2 Sel A052
Relay Out Sel A055
Relay Out Level A056
Accel Time 2 A067
Decel Time 2 A068
Internal Freq A069
Preset Freq 0 A070
Preset Freq 1 A071
Preset Freq 2 A072
Preset Freq 3 A073
Jog Frequency A078
Jog Accel/Decel A079
DC Brake Time A080
DC Brake Level A081
DB Resistor Sel A082
S Curve % A083
Boost Select A084
Maximum Voltage A088
Current Limit A089
Motor OL Select A090
PWM Frequency A091
Auto Rstrt Tries A092
Auto Rstrt Delay A093
Start At PowerUp A094
Reverse Disable A095
Flying Start En A096
Compensation A097
SW Current Trip A098
Process Factor A099
Fault Clear A100
Program Lock A101
Testpoint Sel A102
Comm Data Rate A103
Comm Node Addr A104
Comm Loss Action A105
Comm Loss Time A106
Comm Format A107
Anlg In 0-10V Lo A110
Anlg In 0-10V Hi A111
Anlg In 4-20mA Lo A112
Anlg In 4-20mA Hi A113
Slip Hertz @ FLA A114
Process Time Lo A115
Process Time Hi A116
Bus Reg Mode A117
Comm Write Mode A118
