Programming and Parameters 3-19
Advanced Program Group (continued)

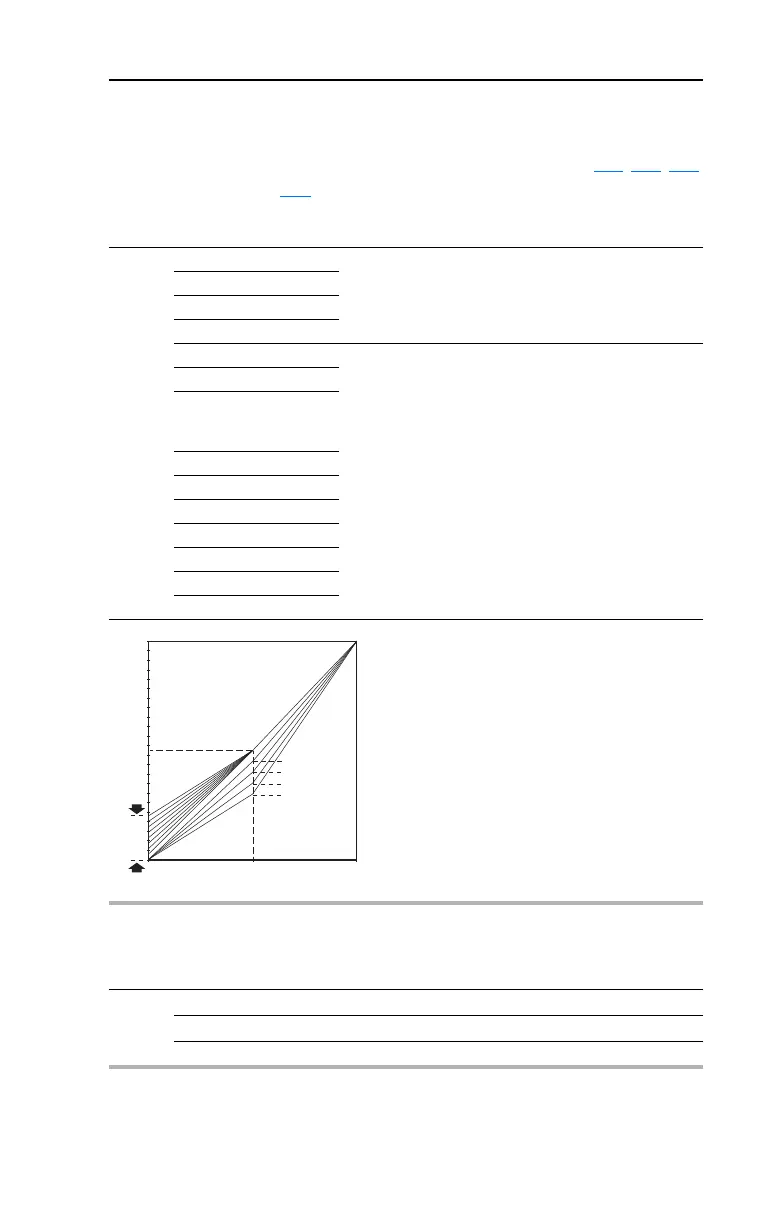

A084 [Boost Select] Related Parameter(s): d004, P031, P032
Sets the boost voltage (% of P031 [Motor NP Volts]) and redefines the Volts per Hz curve.
(1)
(1)
Drive may add additional voltage unless option 5 is selected.
Options 1 “30.0, VT”
Variable Torque
2 “35.0, VT”
3 “40.0, VT”
4 “45.0, VT”
5 “0.0 no IR”
Constant Torque
6 “0.0”
7 “2.5, CT”
[Default for 3.7kW
(5HP) Drives]
8 “5.0, CT” (Default)
9 “7.5, CT”
10 “10.0, CT”
11 “12.5, CT”
12 “15.0, CT”
13 “17.5, CT”
14 “20.0, CT”
% P032 [Motor NP Hertz]
% P031 [Motor NP Volts]
100
50
1/2 [Motor NP Volts]
1/2
[Motor NP Hertz]
4
3
2
1
0 50 100
Settings
5-14
A088 [Maximum Voltage]
Sets the highest voltage the drive will output.
Values Default Drive Rated Volts
Min/Max: 20/Drive Rated Volts
Display: 1 VAC
