158 PowerFlex 700VC Block Diagrams
0.0
2 - Commanded Speed
0.0
84 - Skip Frequency 1
0.0
85 - Skip Frequency 2
0.0
86 - Skip Frequency 3
87 - Skip Freq Band
Bit 2 - Jog
271 - Drive Logic Rslt
Bit 4 - Stopping
210 - Drive Status 2
Bit 0 - Ready
210 - Drive Status 2
0.0
22 - Ramped Speed
-2147483647
273 - Drive Ramp Rslt
0.0 %
146 - S Curve %
10.0 Secs
140 - Accel Time 1
10.0 Secs
141 - Accel Time 2
10.0 Secs
142 - Decel Time 1
10.0 Secs
143 - Decel Time 2
Hz
79 - Speed Units
0.0
23 - Speed Reference
0.0 %
138 - PI Output Meter
Ramp
S Curve
Skip Bands
+
+
00

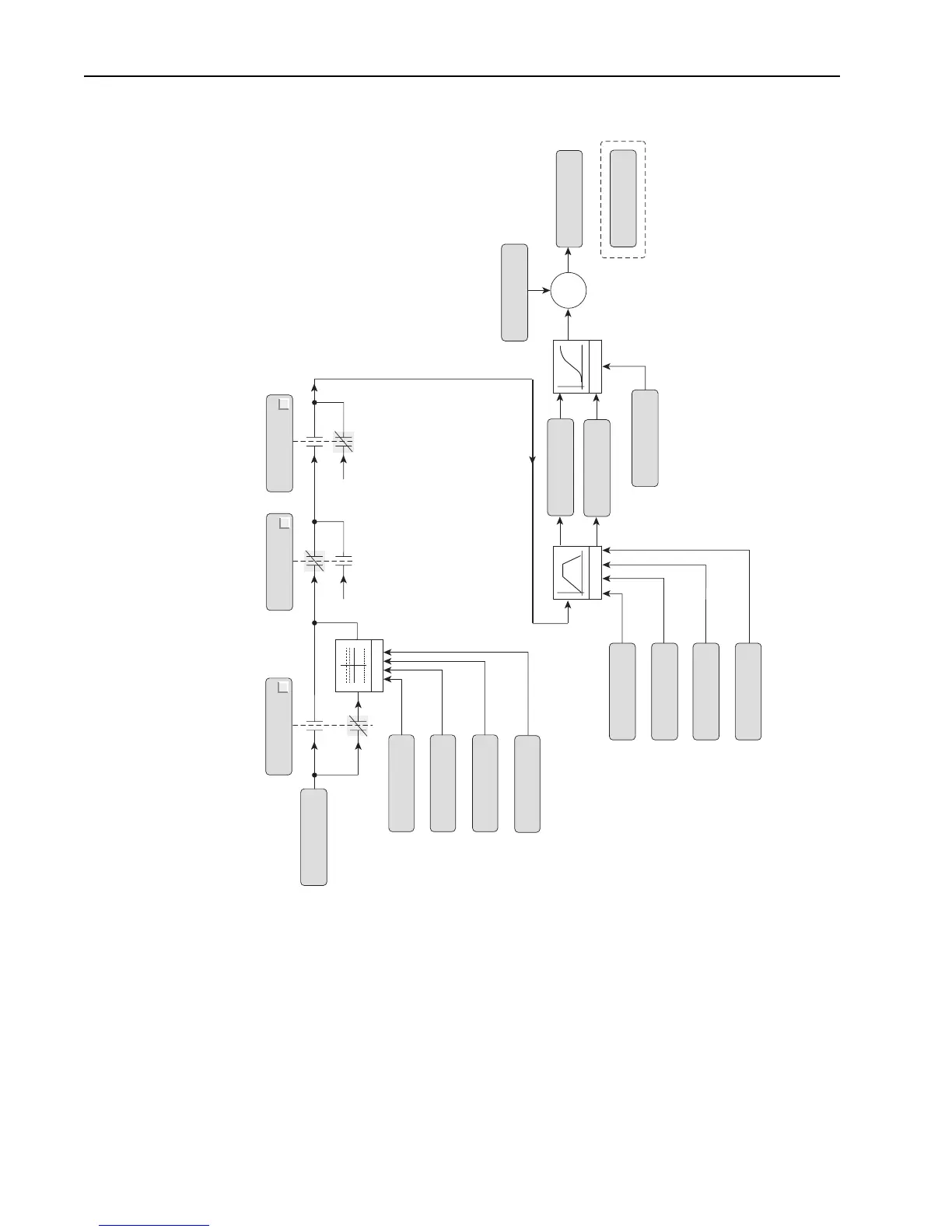

Linear Ramp & S-Curve
