16 Rockwell Automation Publication 20A-IN009E-EN-P - January 2015
PowerFlex 70 Adjustable Frequency AC Drive

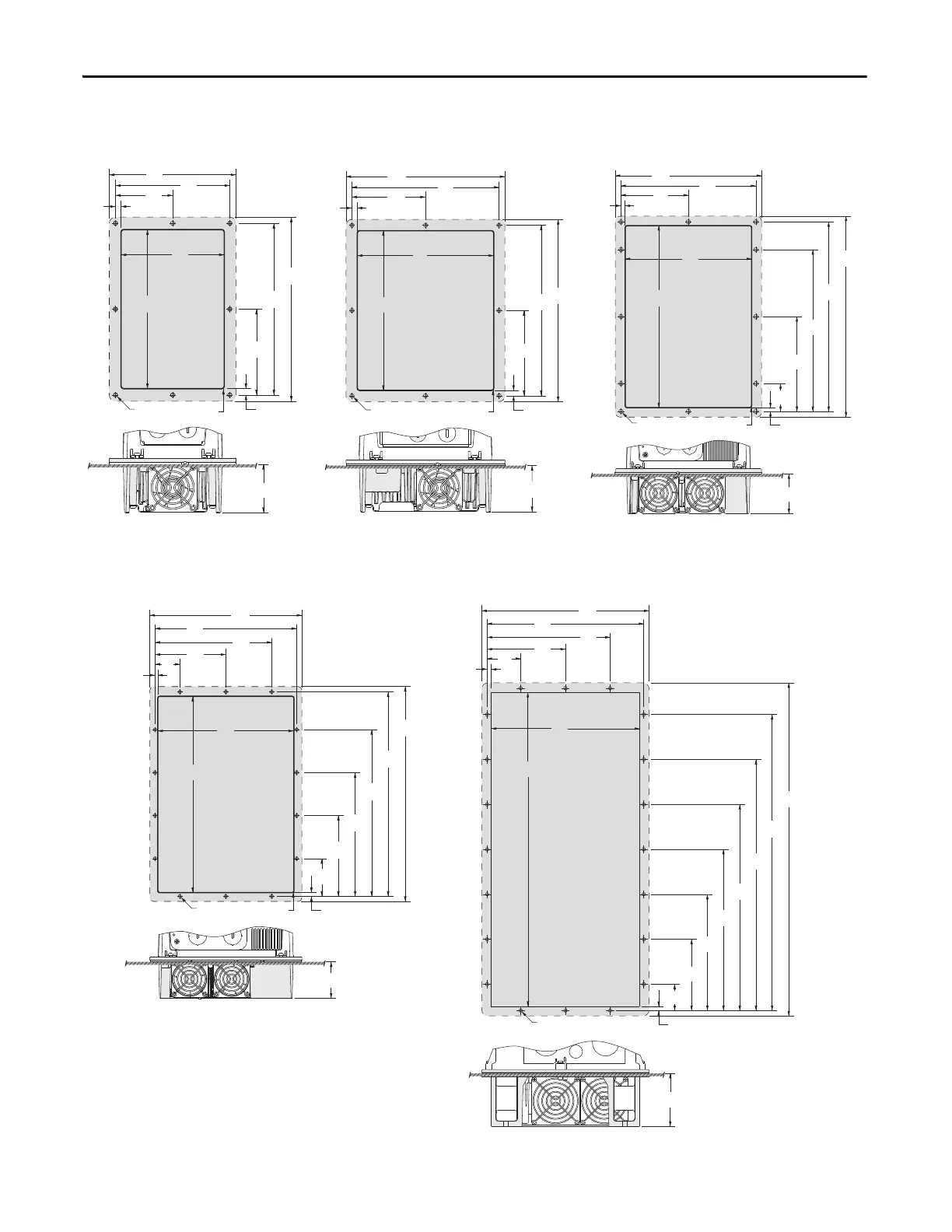

Figure 7 - PowerFlex 70 Cutout Dimensions
127,0
(5.00)
197.9
(7.80)
156,0
(6.14)
6,9
(0.27)
140,7
(5.54)
70,7
(2.78)
210,6
(8.29)
225,8
(8.89)
105,3
(4.15)
5.0
(0.20)
8x: Ø3,5
(Ø0.14)
4x: 3,0R
(0.12R)
58,8
(2.31)
176,3
(6.94)
205,5
(8.09)
205,2
(8.08)
6,9
(0.27)
190,0
(7.48)
95,0
(3.74)
219,3
(8.63)
234,6
(9.24)
109,7
(4.32)
6,9
(0.27)
8x: Ø3,5
(Ø0.14)
4x: 3,0R
(0.12R)
58,8
(2.31)
Frame A Frame B
189,4
(7.46)
272,3
(10.72)
219,0
(8.62)
6,3
(0.25)
202,0
(7.95)
101,0
(3.98)
283,0
(11.14)
300,0
(11.81)
41,5
(1.63)
141,5
(5.57)
241,5
(9.51)
5,1
(0.20)
12x: Ø3,5
(Ø0.14)
4x: 3,0R
(0.12R)
58,8
(2.31)
222,4
(8.76)
321,4
(12.65)
248,4
(9.78)
4,5
(0.18)
115,7
(4.56)
190,7
(7.51)
231,4
(9.11)
40,7
(1.60)
333,0
(13.11)
350,0
(13.78)
61,5
(2.42)
201,5
(7.93)
131,5
(5.18)
271,5
(10.69)
4,5
(0.18)
14x: Ø3,5
(Ø0.14)
4x: 3,0R
(0.12R)
58,8
(2.31)
Frame C
Frame D
250.4
(9.86)
525.8
(20.70)
280.3
(11.04)
6.0
(0.24)
131.2
(5.16)
206.2
(8.12)
262.4
(10.33)
56.2
(2.21)
493.9
(19.44)
555.8
(21.88)
193.9
(7.63)
118.9
(4.68)
43.9
(1.73)
343.9
(13.54)
268.9
(10.59)
418.9
(16.49)
6.0
(0.24)
20x: Ø3.5
(Ø0.14)
87.1
(3.43)
Frame E
