100 Rockwell Automation Publication 20A-UM001N-EN-P - July 2013
Appendix B HIM Overview
Using the HIM With a 20-HIM-B1 Bezel Kit
The 20-HIM-B1 bezel kit enables remote HIM or Wireless Interface Module
(WIM) operation and provides an additional remote DPI port for accessories.
Use the bezel cradle connection to mount the NEMA/UL 1 HIM or
NEMA/UL 1 WIM (port 3).
Use the accessory port on the bottom of the bezel for standard DPI peripherals
such as 1203-SSS, 1203-USB, or another handheld HIM (port 2, just like the
accessory port on the drive).
Use the internal connection on the back side of the bezel to connect the bezel to
the host drive with a standard DPI cable. The 20-HIM-B1 bezel kit cannot be
used with a 1203-S03 two-way splitter cable, or a 1203-SG2 two-way or
1203-SG4 four-way splitter module.
• If you are using the HIM in the bezel, set parameter 90 [Speed Ref A Sel]
or parameter 93 [Speed Ref B Sel] (depending on your application
requirements) to option 20 “DPI Port 3.”
• If you are using a remote 20-HIM-C* HIM connected directly into Port 2
on the bottom of the drive, set parameter 90 [Speed Ref A Sel] or
parameter 93 [Speed Ref B Sel] to option 19 “DPI Port 2.”

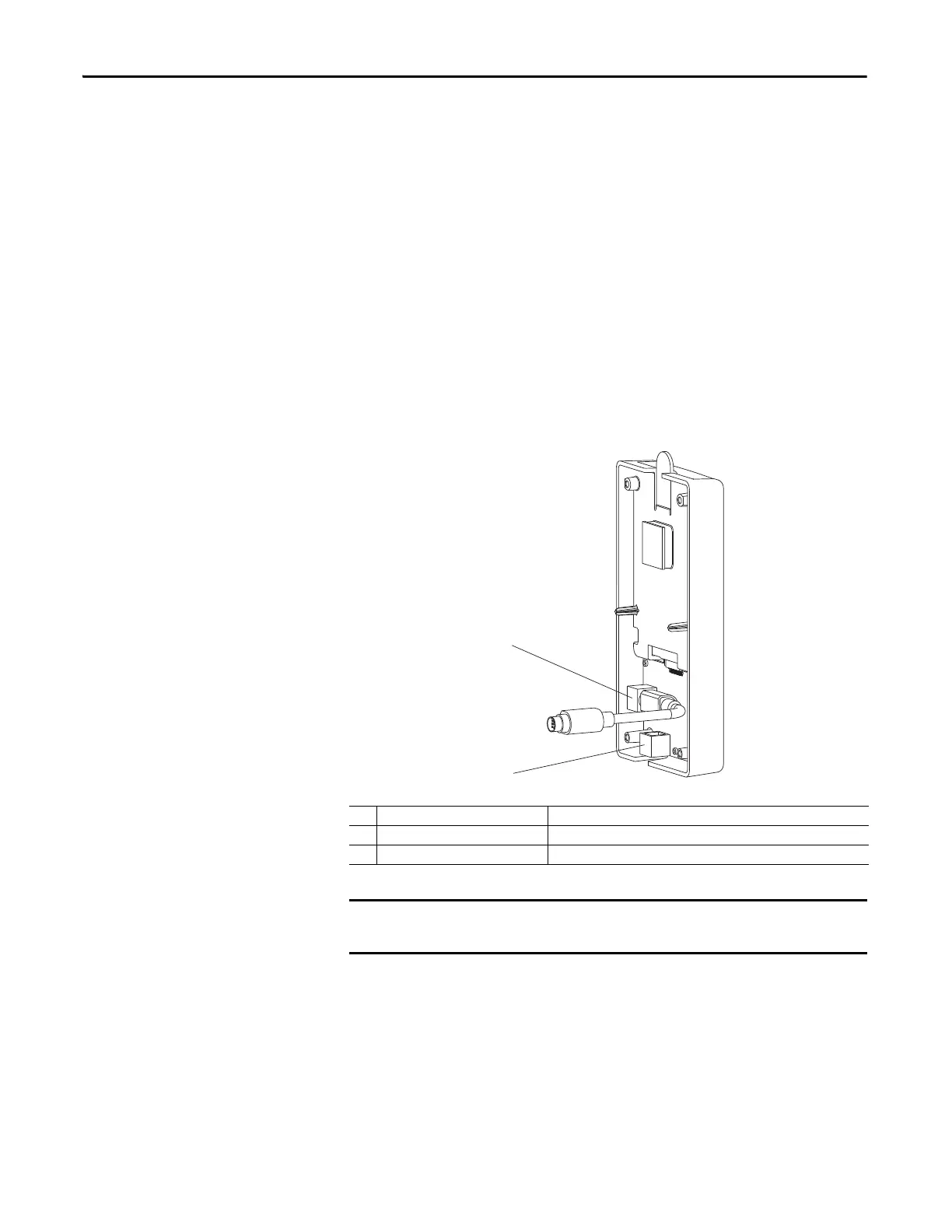

No. Connector Description
Upper DPI port Connects the 20-HIM-B1 bezel to the drive.
Lower DPI port Connects a 1203-SSS or 1203-USB converter to the drive.
The bezel’s lower DPI port is always port 2, and the cradle connection port is
always port 3.
➊
➋
