PowerFlex 700 Adjustable Frequency AC Drive Quick Start 5
Table B Acceptable Surrounding Air Temperature & Required Actions
Important: Removing the adhesive label from the drive changes the
NEMA enclosure rating from Type 1 to Open type.

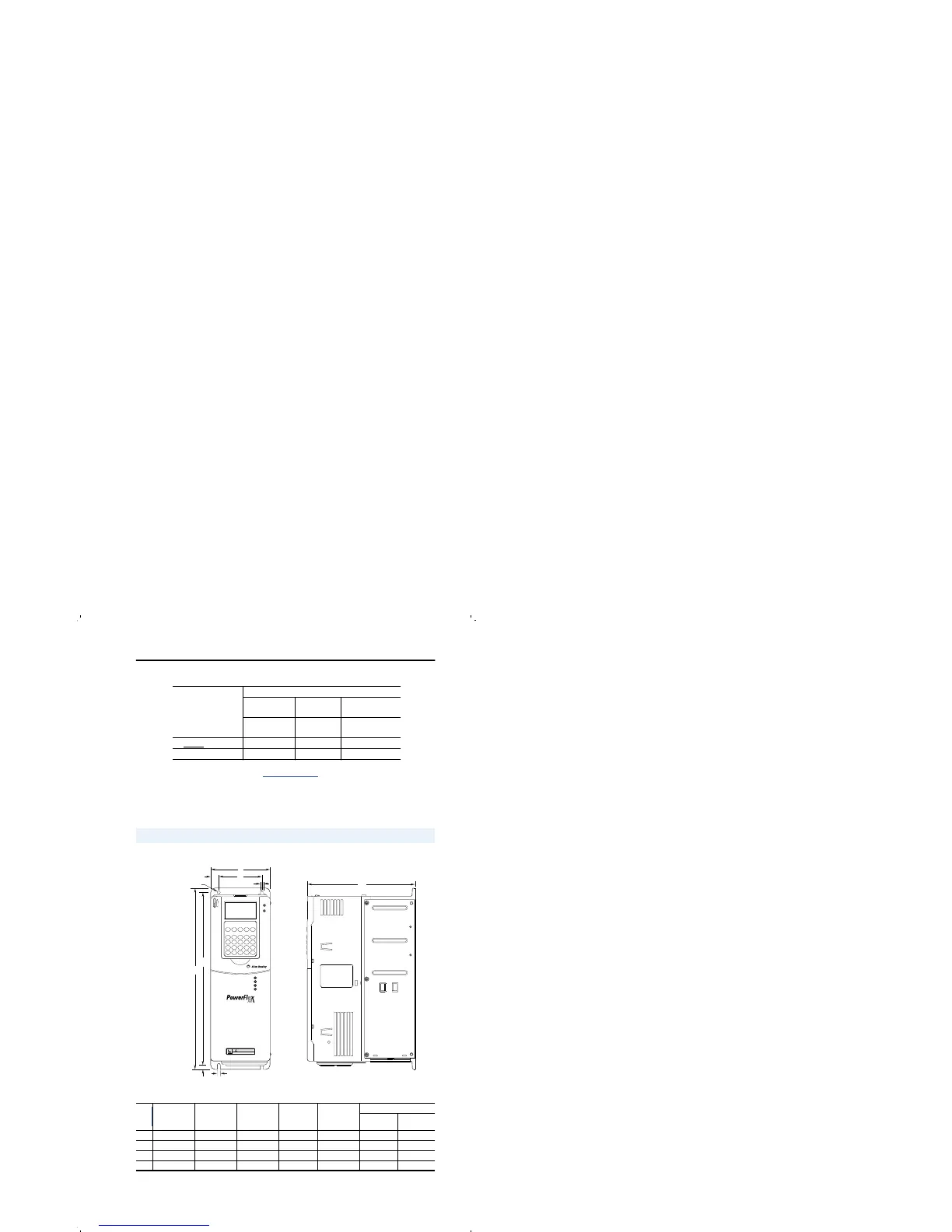

Figure 1 PowerFlex 700 Frames 0-3 (0 Frame Shown)
Dimensions are in millimeters and (inches).
Drive Catalog
Number
Required Action . . .
IP 20, NEMA
Type 1
IP 20, NEMA
Type Open
IP 00, NEMA
Type Open
No Action
Required
Remove Top
Label
Remove Top Label
& Vent Plate
(1)
(1)
To remove vent plate (see Figure 3 on page 8 for location), lift top edge of
plate from the chassis. Rotate the plate out from the back plate.
All
Except 20BC072 40° C50° CNA
20BC072 40° C45° C50° C
Dimensions
C
A
D
15.0 (0.59)
5.8 (0.23) dia.
see below
E
8.0
(0.31)
5.5 (0.22) - Frames 0-1
7.0 (0.28) - Frames 2-3
3 Places
B
HOT surfaces can cause severe burns
CAUTION
Frame (Table C)
ABCDE
Weight
(1)
kg (lbs.)
Drive
Drive &
Packaging
0 110.0 (4.33) 336.0 (13.23) 200.0 (7.87) 80.0 (3.15) 320.0 (12.60) 5.22 (11.5) 8.16 (18)
1 135.0 (5.31) 336.0 (13.23) 200.0 (7.87) 105.0 (4.13) 320.0 (12.60) 7.03 (15.5) 9.98 (22)
2 222.0 (8.74) 342.5 (13.48) 200.0 (7.87) 192.0 (7.56) 320.0 (12.60) 12.52 (27.6) 15.20 (33.5)
3 222.0 (8.74) 517.5 (20.37) 200.0 (7.87) 192.0 (7.56) 500.0 (19.69) 18.55 (40.9) 22.68 (50)
(1)
Weights include HIM and Standard I/O.

Allen-Bradley powerflex 700 Specifications

General

Series	PowerFlex 700
Category	AC Drive
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Enclosure	Type 1
Control Method	Sensorless Vector
Communication	EtherNet/IP, ControlNet, DeviceNet, PROFIBUS DP, Modbus
