4 PowerFlex 700 Adjustable Frequency AC Drive Quick Start
Essential Requirements for CE Compliance
Conditions 1-6 listed below must be satisfied for PowerFlex drives to
meet the requirements of EN61800-3.
1. Standard PowerFlex 700 CE compatible Drive.
2. Review important precautions/attention statements throughout this
document before installing the drive.
3. Grounding as described on page 1-4 of the User Manual.
4. Output power, control (I/O) and signal wiring must be braided,
shielded cable with a coverage of 75% or better, metal conduit or
equivalent attenuation.
5. All shielded cables should terminate with the proper shielded
connector.
6. Conditions in
Table A.
Table A PowerFlex 700 EN61800-3 EMC Compatibility
Operating Temperatures
PowerFlex 700 drives are designed to operate at 0° to 40° C ambient.
To operate in installations between 41° and 50° C, see
Table B.
Frame
Second Environment
Restrict Motor Cable to 30 m (98 ft.)
First Environment
Restricted Distribution
Any Drive and Option
0 ✔ Refer to
PowerFlex Reference Manual
1 ✔
2 ✔
3 ✔

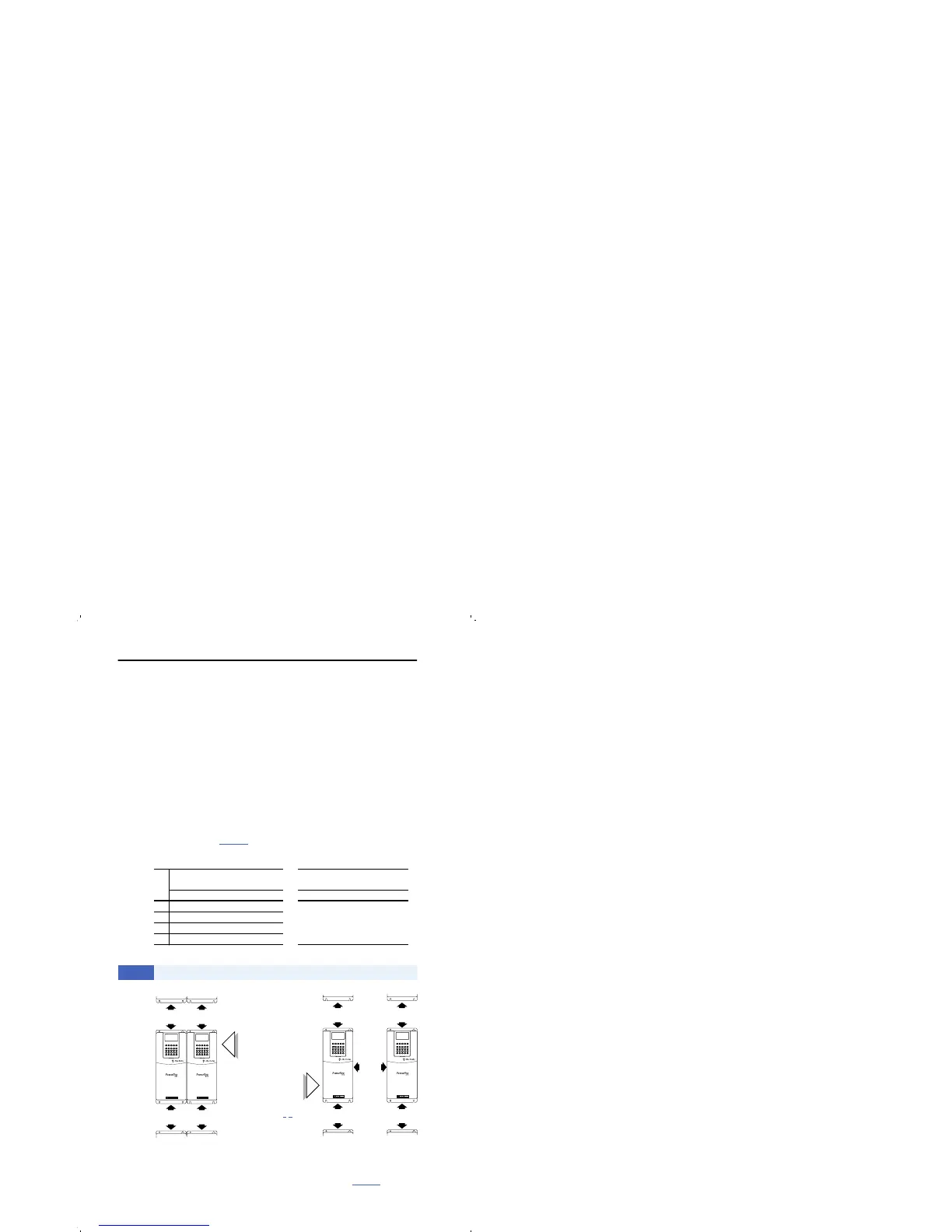

Step 2 Mount the Drive – Minimum Requirements
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
50.8 mm
(2.0 in.)
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
PWR
STS
PORT
MOD
NET A
NET B
PWR
STS
PORT
MOD
NET A
NET B
Refer to Figures 1-3 for
detailed dimension
information.
No Adhesive Label
(see below)
With Adhesive Label
(see below)
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
PWR
STS
PORT
MOD
NET A
NET B
PWR
STS
PORT
MOD
NET A
NET B
To Next Page
