PowerFlex 755 IP00, NEMA/UL Open Type Drive

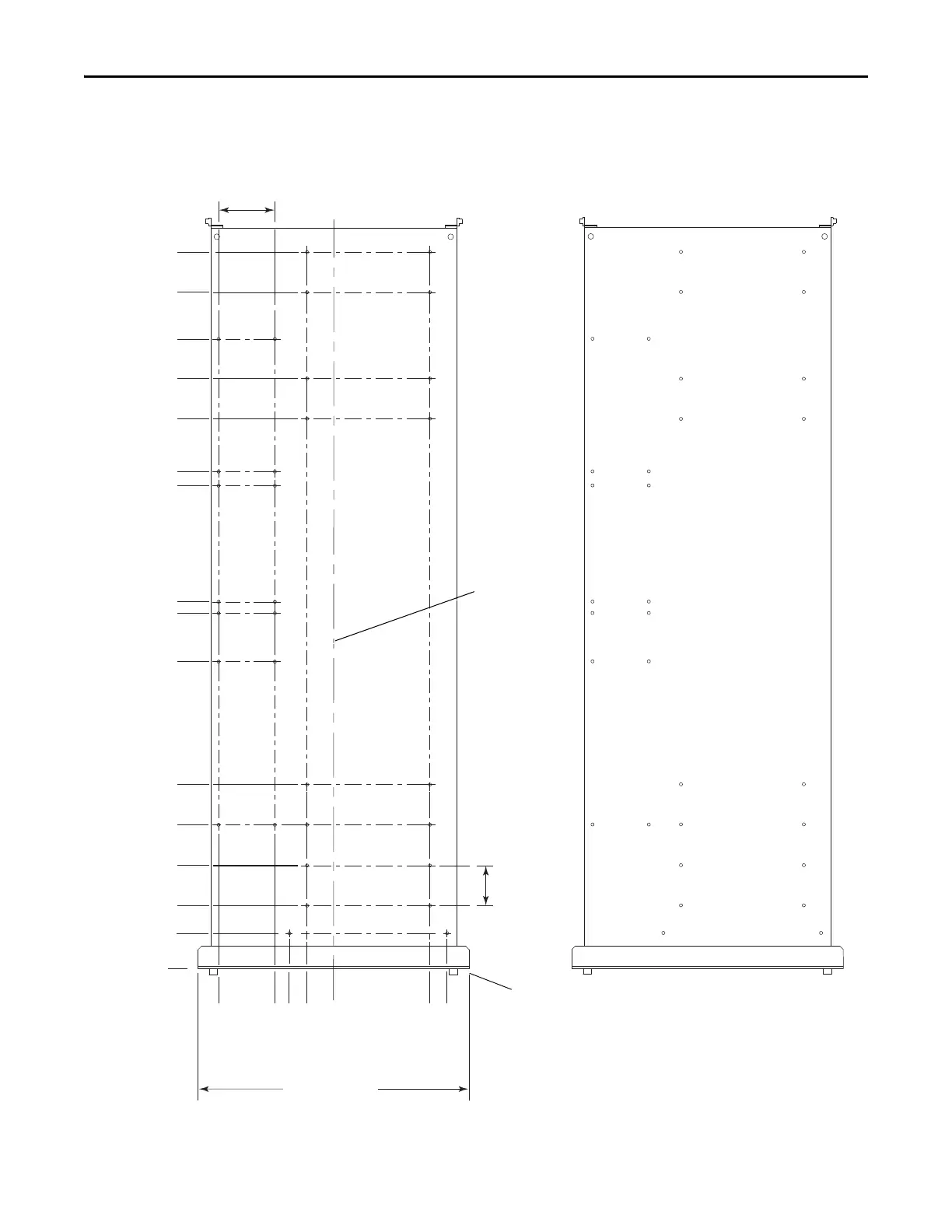

Figure 18 - Frame 8 Drilling Dimensions
772.0 (30.39) Ref
78.42 (3.087)
0.00 (0.000)
0.00 (0.000)
399.10 (15.713)
449.10 (17.681)
50.00 (1.969)
126.25 (4.970)
41.31 (1.626)
201.31 (7.926)
100.56 (3.959)
192.42 (7.575)
308.17 (12.133)
422.42 (16.631)
771.66 (30.380)
909.16 (35.794)
941.66 (37.073)
1271.66 (50.065)
1311.66 (51.640)
1462.27 (57.570)
1576.27 (62.058)
1688.38 (66.472)
1821.28 (71.704)
1935.28 (76.192)
160.00 (6.299) Ref
114.00 (4.488) Ref
4 places
Dimensions are in millimeters and (inches)
Bottom of sub panel may or
may not be coplanar with this
surface.
Center Line
of Sub Panel
Drill all holes (qty. 34) to 9.00 (0.354) diameter
Fasten kits to the control panel with M8 or 5/16 in. screws.
