Rockwell Automation Publication 750-QS001A-EN-P - March 2015 29
Reference Section
Frame 6
Wire Connectors
• Torque: 1.36 N•m (12.0 lb•in)
• Tools: 7 mm hex socket
and T20 Hexalobular
Frame 7
Wire Connectors
• Torque: 1.36 N•m (12.0 lb•in)
• Tools: 7 mm hex socket
and T20 Hexalobular

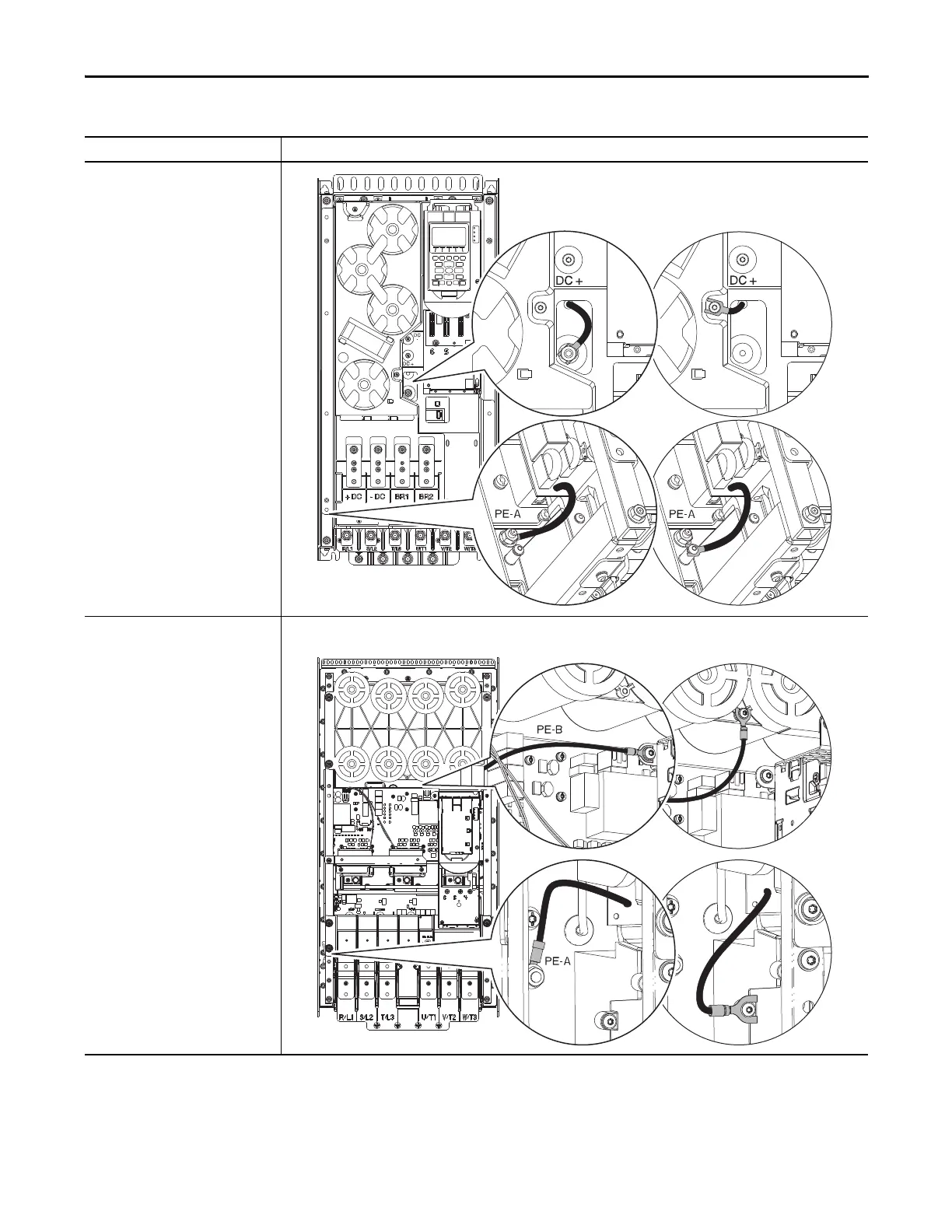

Table 1 - Power Jumper Locations for Frames 1…10 (Continued)
Drive Jumper Locations
PE-B
E4
PE-B
E4
Disconnected
Connected
MOV
Common Mode
Disconnected
Connected
MOV
Common Mode
