Reference Section

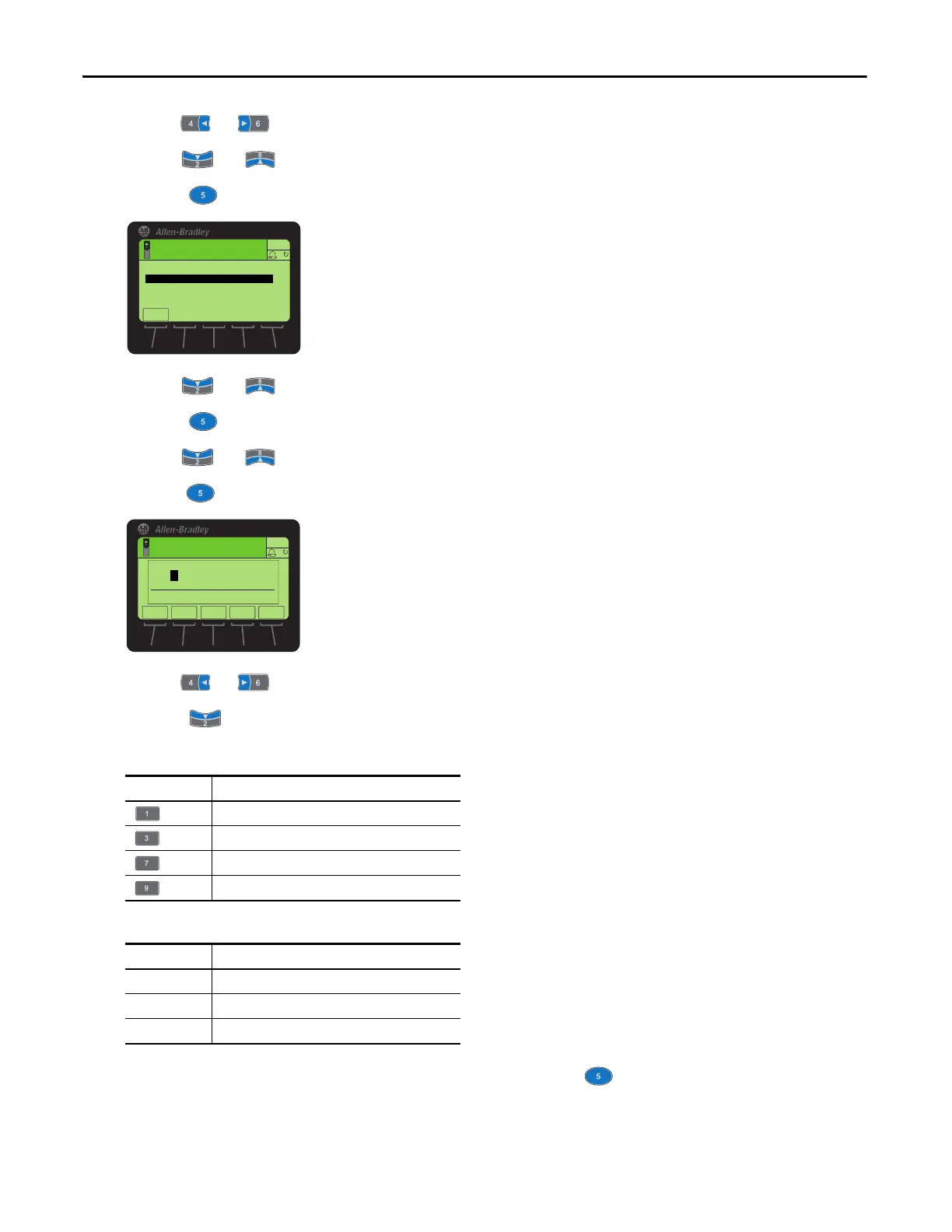

4. Use the or key to scroll to the MEMORY folder.
5. Use the or key to select HIM CopyCat.
6. Press the (Enter) key to display the CopyCat Files selection screen.
7. Use the or key to select Rename CopyCat File.
8. Press the (Enter) key to display the Select File To Rename pop-up box.
9. Use the or key to select the file to be renamed.
10. Press the (Enter) key to display the Edit CopyCat File Text pop-up box.
11. Use the or key to move the cursor to the desired character position in the displayed name.
12. Press the key to access the last-viewed character set.
13.
Press the appropriate numeric key to access the desired character set.
Also, use the appropriate soft keys to help create the new name.
14. With the desired character selected in that character position, press the key to select and enter the character.
15. Repeat steps 11 through 14 for each character position.
Numeric Key Function
Selects the numeric character set.
Selects the symbols character set.
Selects the upper case letter character set.
Selects the lower case letter character set.
Soft Key Function
DEL Deletes a highlighted character.
INS Inserts a space to the left of a highlighted character.
CLR Deletes an entire text string.
Stopped
0.000 Hz
AUTO
ESC
F
Port 00 CopyCat Files
CopyCat from Device to HIM 
CopyCat from HIM to Device
Delete CopyCat File
Rename CopyCat File 
E S C ENTER
Stopped
0.00 Hz
AUTO
F
INS DEL
,=Move Cursor =Char Set
CLR
Edit CopyCat File Text
PowerFlex 755

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
