Chapter 2
Installation and Wiring
Installation
This section shows the dimensions of the unit for installation in a panel.

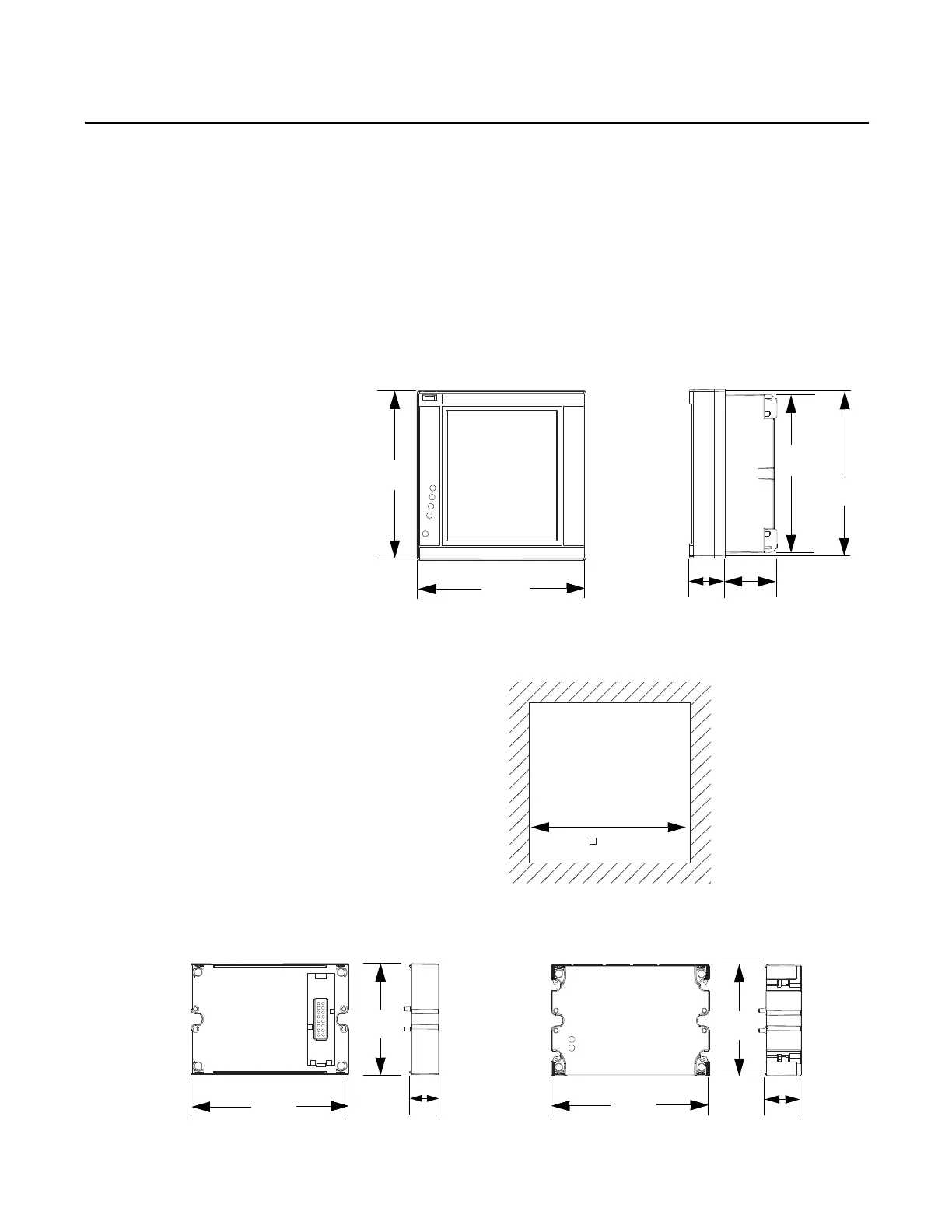

Figure 5 - Base Unit Dimensions
Figure 6 - Panel Cut-out
Figure 7 - Factory-installed Optional Modules
96.00 mm
(3.78 in.)
96.00 mm
(3.78 in.)
93.00 mm
(3.66 in.)
20.20 mm
(0.80 in.)
29.70 mm
(1.17 in.)
89.97 mm
(3.54 in.)
91.00 mm
(3.58 in.)
62.99 mm
(2.48 in.)
89.49 mm
(3.52 in.)
62.99 mm
(2.48 in.)
89.49 mm
(3.52 in.)
16.00 mm
(0.63 in.)
20.00 mm
(0.79 in.)
Digital and Analog Output Modules
Serial and Ethernet Communication Modules
