Chapter 1
Publication
1747-10.4
SLC 5/05 Ethernet Processor
Features
This chapter:
describes SLC 5/05 processors and Ethernet communication
describes SLC 5/05 performance considerations
illustrates SLC 5/05 hardware features
explains processor status LED operation
explains keyswitch operation
Ethernet is a local area network that provides communication
between various devices at 10 Mbps. The physical communication
media options for the SLC 5/05 are:
built-in
twisted pair (10Base-T)
with media converters or hubs
fiber optic
broadband
thick-wire coaxial cable (10Base-5)
thin-wire coaxial cable (10Base-2)
See page 2–4 for more information on Ethernet physical media.

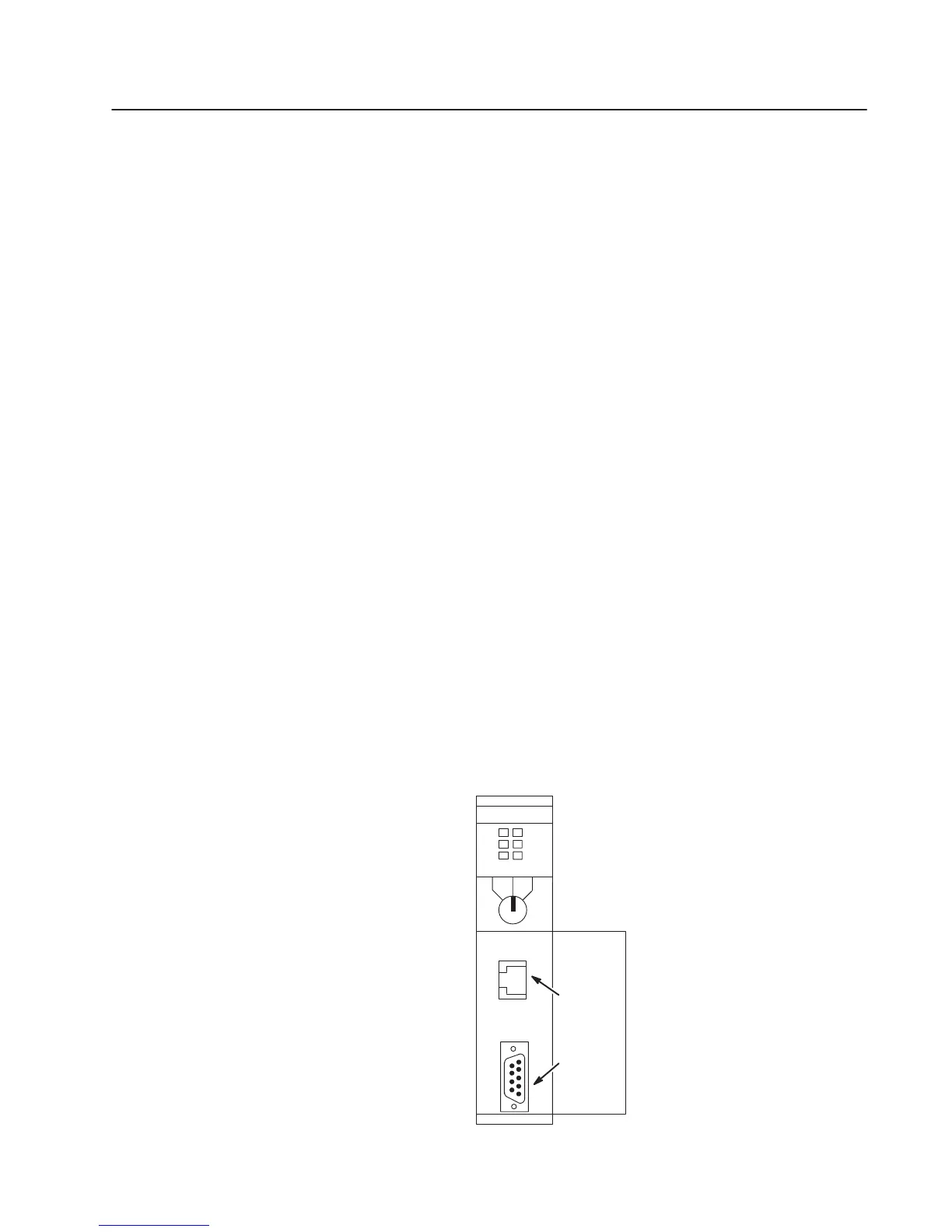

The SLC 5/05 supports Ethernet communication via the Ethernet
communication channel 1 shown in the drawing below.
SLC
5/05 CPU
RUN PROG
FORCE
RS232BATT
ENET
FLT
RUN
REM
Channel 1
Ethernet
(10Base-T)
Channel 0
RS232
(DH485,
DF1, or
ASCII)
SL
C
5/05
P
r
o
c
esso
r
s
a
nd
Ethernet Communication
